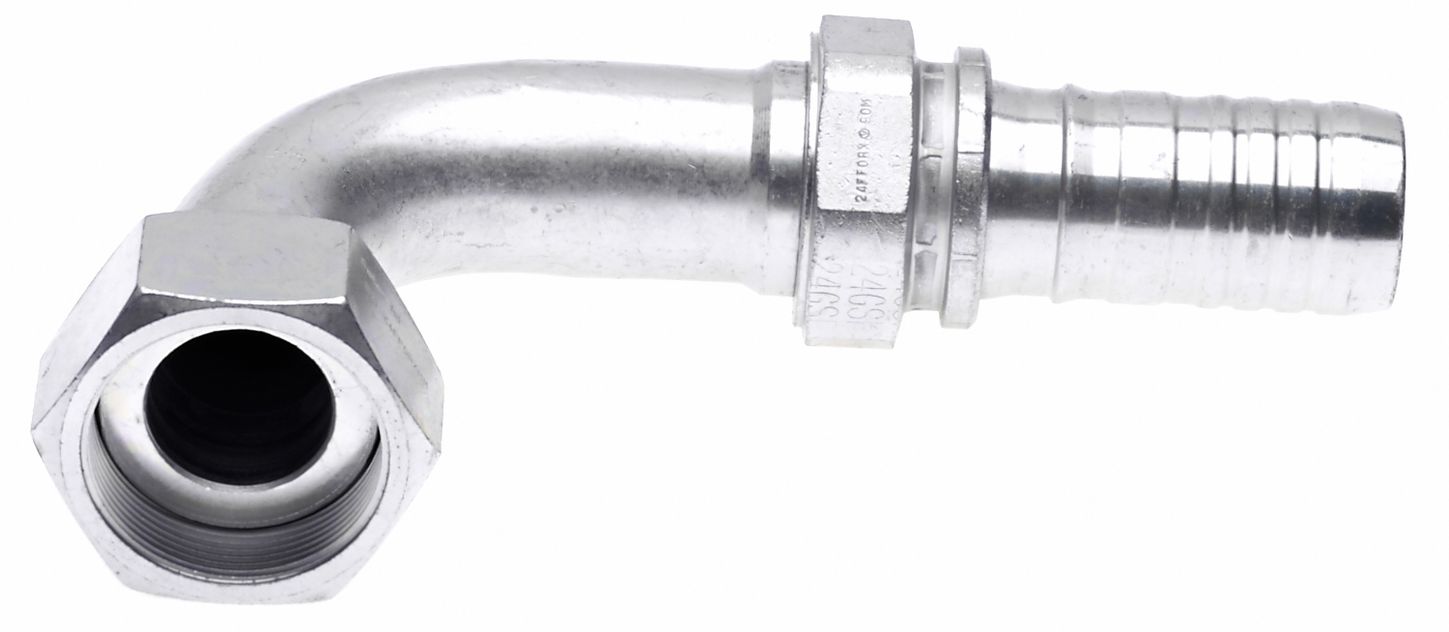

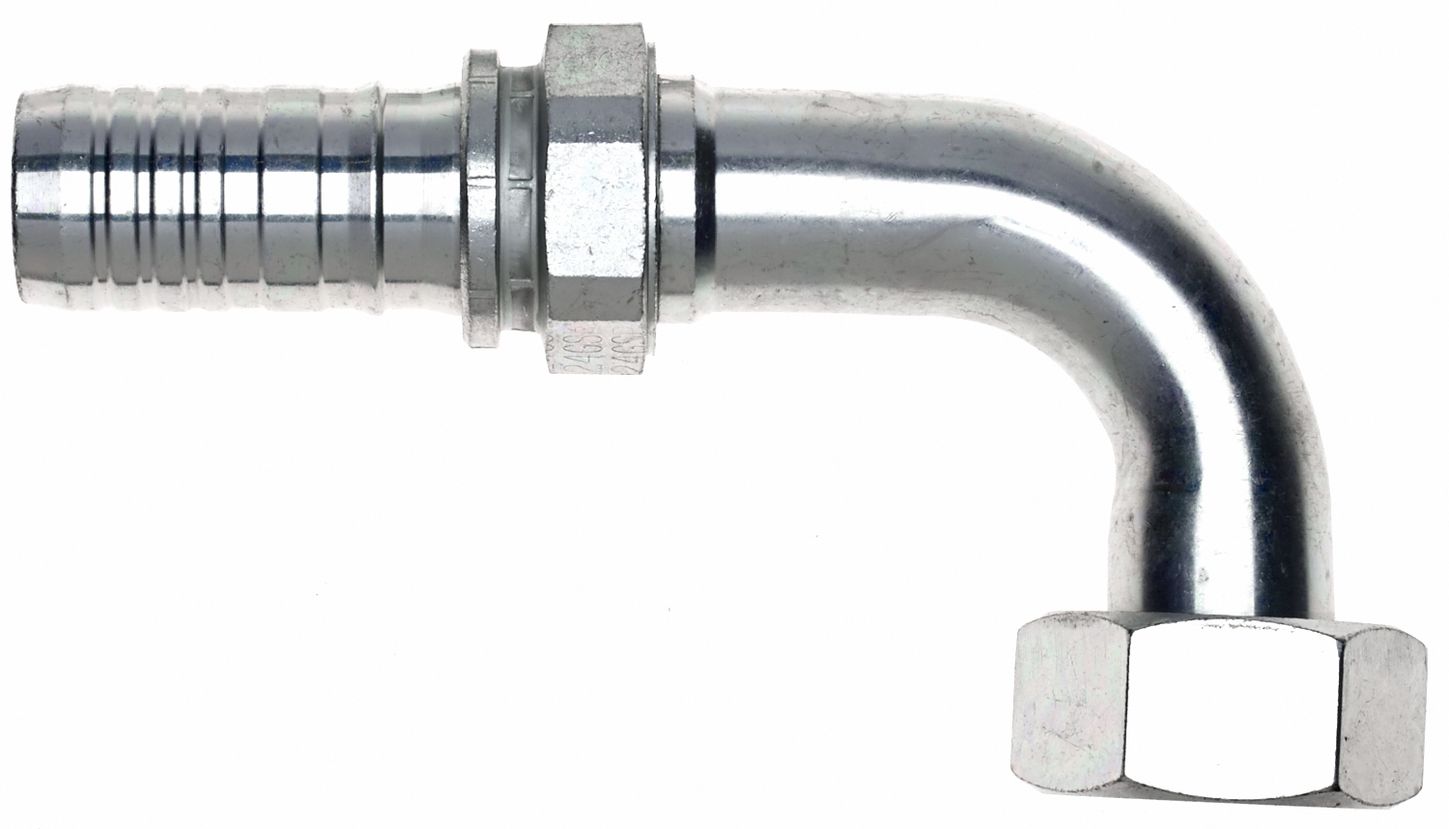

Gates G22240-2424 (24GSP-24FFORX90M) Female Flat-Face O-Ring Swivel - 90 Bent Tube (GlobalSpiral Plus)

Female Flat-Face O-Ring Swivel - 90 Bent Tube (GlobalSpiral Plus)

GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system. Separate ferrules are required for 4-spiral hose and wire braid hose. Metric Hex per ISO Draft International Standard 1215-1. SAE J1453 O-Ring Face Seal.

• “Bite-the-wire” crimp for improved coupling retention
