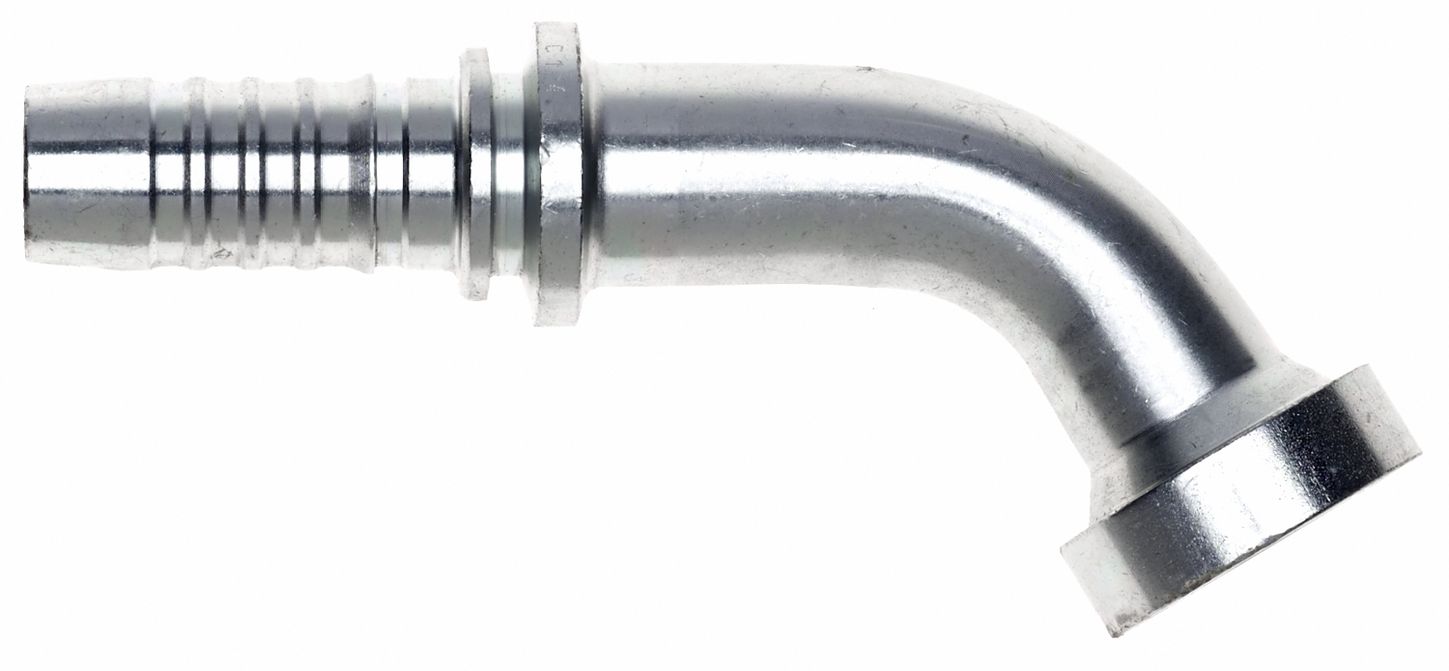

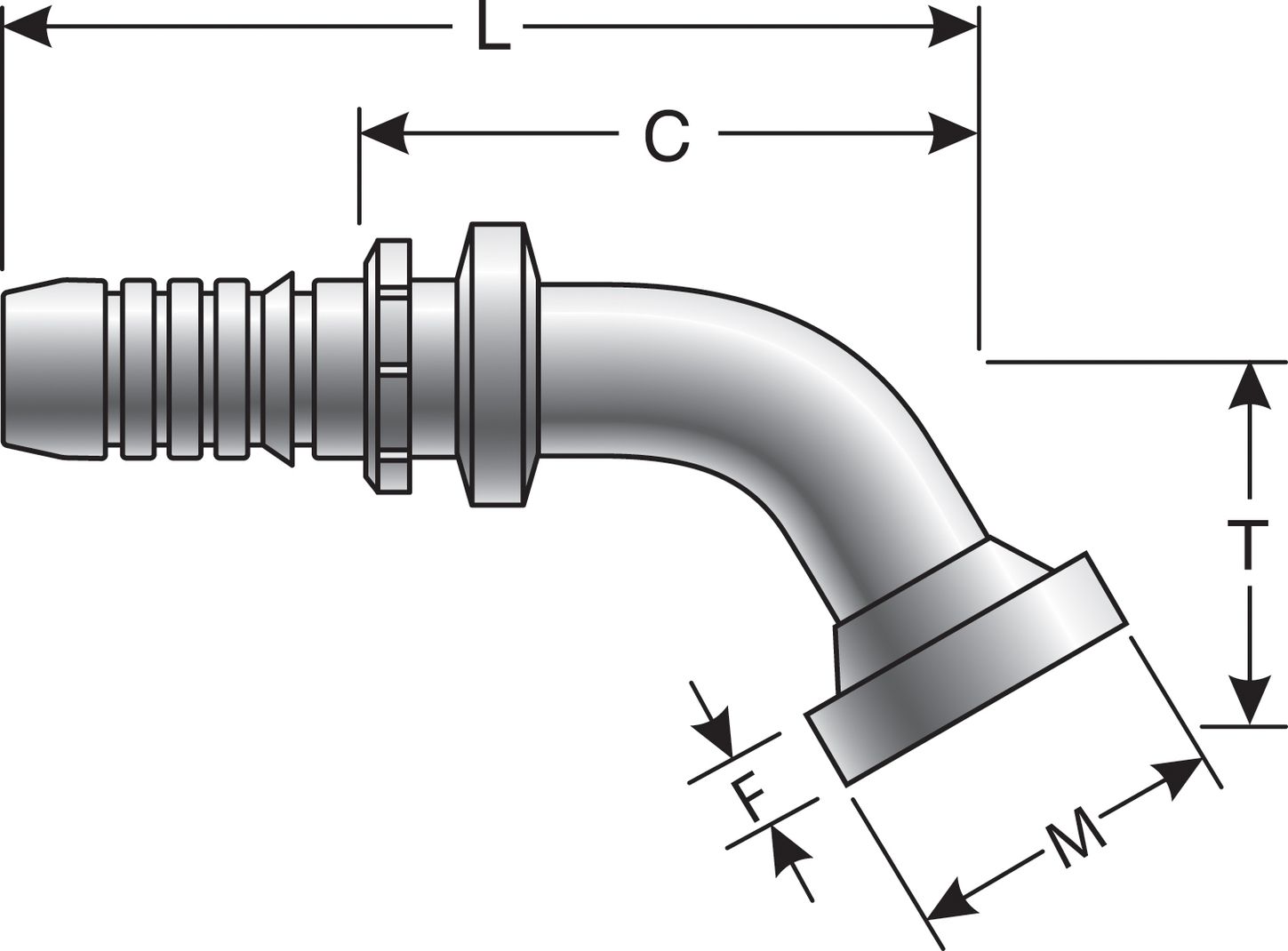

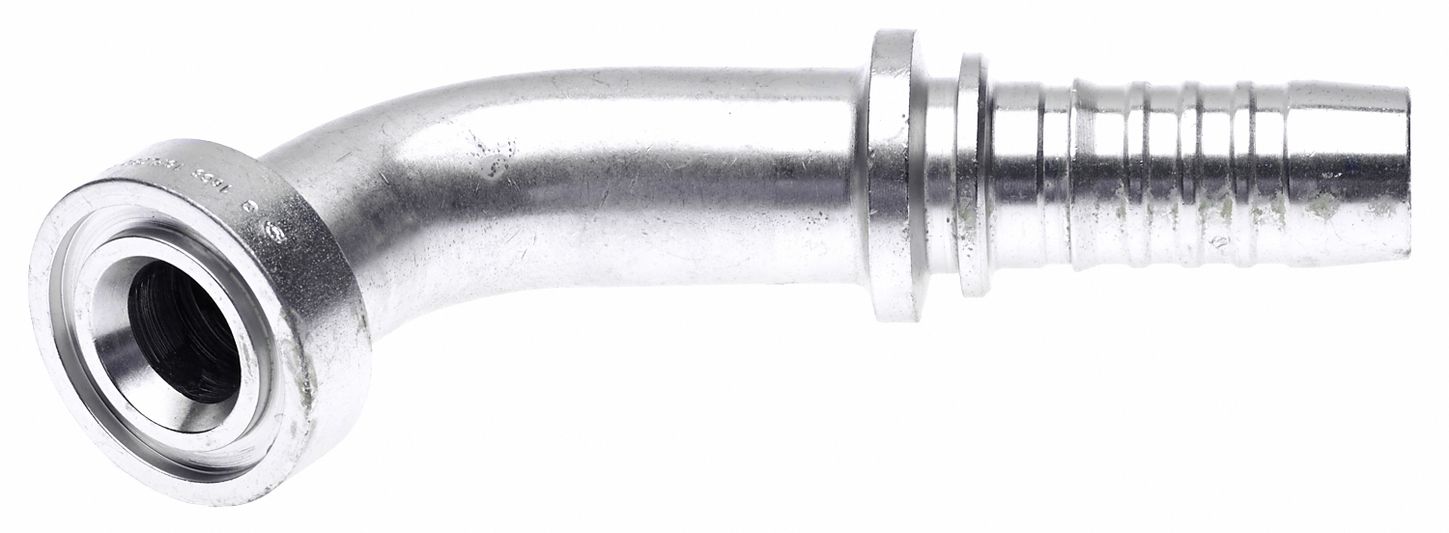

Gates G20409-1616 (16GS-16FLC60-050) Caterpillar Style O-Ring Flange - 60 Bent Tube (GlobalSpiral)
SKU: G20409-1616Cross reference: G204091616TEXF4-1616-FLH60CUPC/EAN: 072053297331
Caterpillar Style O-Ring Flange - 60 Bent Tube (GlobalSpiral)
$75.22
EachIn stock
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system. MGS Couplings for use with MC4-20 Crimper Only.
- “Bite-the-wire” crimp for improved coupling retention
Specifications
| SKU | G20409-1616 |
|---|---|
| Cross reference | G204091616, TEXF4-1616-FLH60C |
| UPC/EAN | 072053297331 |
| Coupling Style | GlobalSpiral Couplings |
| Swivel | No |
| Thread Configuration | SAE O-Ring Flange (FL) |
| Inside Diameter | 1" (16) |
| Bend Angle | 60° |
| Seal Type | O-Ring |
| Thread Size | 1" (16) |
| Gates Code | G20 |
