Velvac 016271 COMP FIT-M.90 D.ELB.3/16T.X 1/8PPRE

The Velvac Push-Lock Air Brake Fitting, 90° Male Swivel Elbow, meets DOT 49 CFR 571.106 and SAE J1131 performance standards, ensuring reliability in air brake and pneumatic systems. Constructed from high-strength composite for weight savings, it features a built-in swivel for easy positioning, an advanced tube retention system for superior holding, and pre-applied thread sealant to prevent leaks.

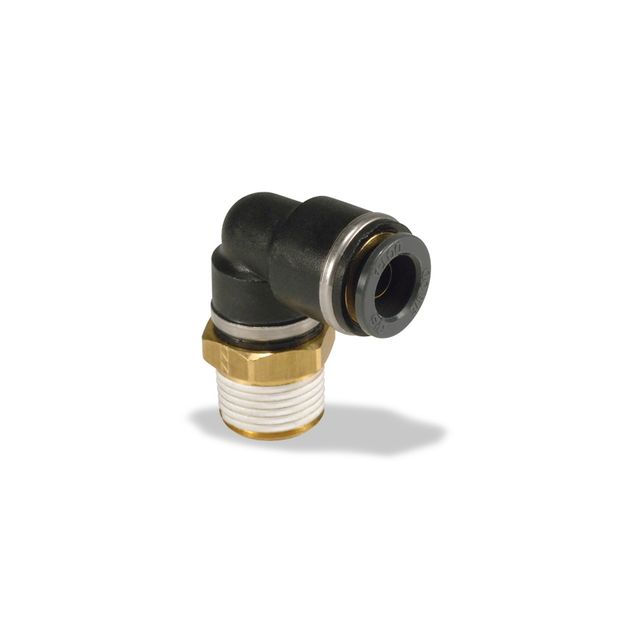

Velvac Push-Lock Air Brake Fitting, 90° Male Swivel Elbow 3/16” x ⅛” (016271)

PRODUCT OVERVIEW

The Velvac Push-Lock Air Brake Fitting is designed for use with SAE J844 nylon tubing and meets DOT 49 CFR 571.106 compliance standards. These high-strength composite fittings offer weight savings over traditional all-brass fittings and are trusted by many OE vehicle manufacturers. Engineered to meet SAE J1131 performance requirements, this fitting ensures durability and reliability in air brake and pneumatic applications. The built-in swivel feature on elbows and male branch fittings allows for easy positioning during installation. The advanced tube retention system provides superior holding and side load retention, while the pre-applied thread sealant reduces installation time and prevents leaks.

SPECIFICATIONS:

• Type: 90° Male Swivel Elbows
• Material: Composite
• Pipe Size: ⅛”
• Tube Size: 3/16”
• Compliance: DOT 49 CFR 571.106, SAE J1131
• Operating Temperature Range: -45°F to +140°F
• Maximum Operating Pressure: 145 psi
