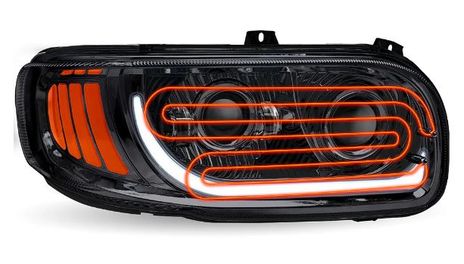

Trux TLED-H117 Peterbilt 389 Heated LED Projector Headlight Assembly - Black (Passenger Side)

“Plug & Play” for Easy Installation

PB. 389/388/367/567 Heated LED Projector Headlight Assembly – Black (Passenger Side)

• “Plug & Play” for Easy Installation
• Dual Function White Glow Position (DRL Auxiliary) & Amber Marker LED Accents
• LED Side Marker
• Heated Lens Activates at 41° Fahrenheit / 5° Celsius
• Projector Technology for a Wider Beam
• 3 Year Warranty

STYLE: Peterbilt
SIZE: OE
COMPLIANCE: CMVSS-108, DOT/SAE, FMVSS-108
BULB TYPE: LED Projector
FUNCTION: Automatic Heated Lens
FUNCTION 1: Combination High & Low Beam with DRL Accent
FUNCTION 2: Turn Signal & Marker
LED POWER: High: 17 Watts, Low: 14 Watts
RAW LUMENS: High: 3000 Lumens, Low: 3000 Lumens
EFFECTIVE LUMENS: High: 960 Lumens, Low: 960 Lumens
OPERATING VOLTAGE: 9-24 Volts (DRL Compatible)
CURRENT DRAW @ 12 VOLTS: 0.9 Amps (High), 3.7 Amps (High) No Heat Activation: 1.2 Amps (Low), Heat Activation: 4.25 Amps (Low)
DRL AMPERAGE (WATTS/AMPS): 0.4 Amps / 4.6 Watts
TURN/MARKER AMPERAGE (WATTS/AMPS): 1.1 Amps / 13.8 Watts
SIDE MARKER AMPERAGE (WATTS/AMPS): 0.1 Amps / 1.33 Watts
INTERIOR COLOR: Black
LENS COLOR: Clear
LENS MATERIAL: Polycarbonate
HOUSING MATERIAL: Polycarbonate
WATERPROOF RATING: IP66 Rating
