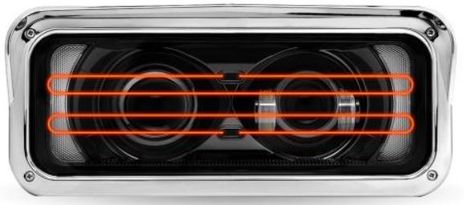

Trux TLED-H136 Rectangular HEATED Backlit LED Projector Headlight Assembly - Black (Driver Side)

Replaces OEM 4″ x 6″ Headlight Configurations

Universal Heated LED Projector Headlight Assembly with Glow Position & Marker LED Accents – Chrome (Passenger Side)

• Patented Design
• Included Integrated Traditional Visor, Housing Bucket & Hardware
• Dual Function White Glow Position (DRL Auxiliary) & Amber Marker LED Accents
• Heated Lens Activates at 46.4° Fahrenheit / 8° Celsius
• Projector Technology for a Wider Beam
• Replaces OEM 4″ x 6″ Headlight Configurations
• Optional Blue Backlit Auxiliary Function (Blue Backlit function has an independent wire that will allow you to turn it off when driving in any region where blue is not permitted)
• 3 Year Warranty

Style: Freightliner, Kenworth, Peterbilt, Western Star
Size: Double 4” x 6”
Compliance: CMVSS-108, DOT/SAE, FMVSS-108
Bulb Type: LED Projector
Function: Automatic Heated Lens
Function 1: Combination High & Low Beam with White Glow Position (DRL Auxiliary)
Function 2: Marker
Function 3: Optional Backlit Auxiliary
LED Power: Heat Activation High: 50 Watts, Heat Activation Low: 29 Watts, High: 28 Watts, Low: 11 Watts
Raw Lumens: High: 5000 Lumens, Low: 3000 Lumens
Effective Lumens: High: 2000 Lumens, Low: 1200 Lumens
Operating Voltage: 9-30 Volts (DRL Compatible)
Current Draw @ 12 Volts: Heat Activation High: 3.9 Amps, Heat Activation Low: 2.27 Amps, High: 2.5 Amps, Low: 0.87 Amps
DRL Amperage (Watts/Amps): 0.4 Amps
Turn / Marker Amperage (Watts/Amps): 0.4 Amps
Interior Color: Chrome
Lens Color: Clear
Lens Material: Polycarbonate
Housing Material: ABS Plastic
Product Restriction: Blue Backlit function has an independent wire that will allow you to turn it off when driving in any region where blue is not permitted
Waterproof Rating: IP67 Rating
What’s Included: Housing Bucket & Hardware Included
