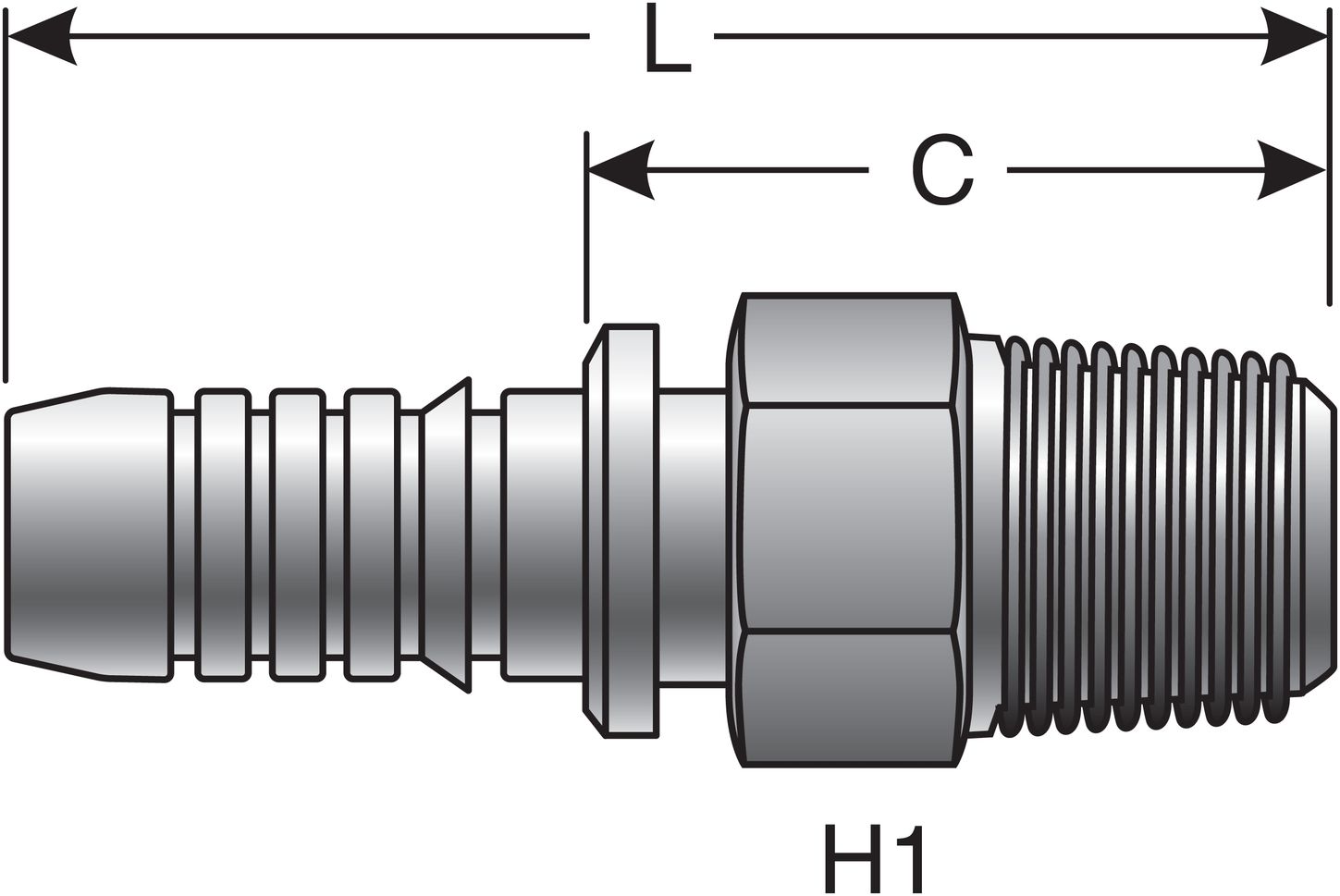

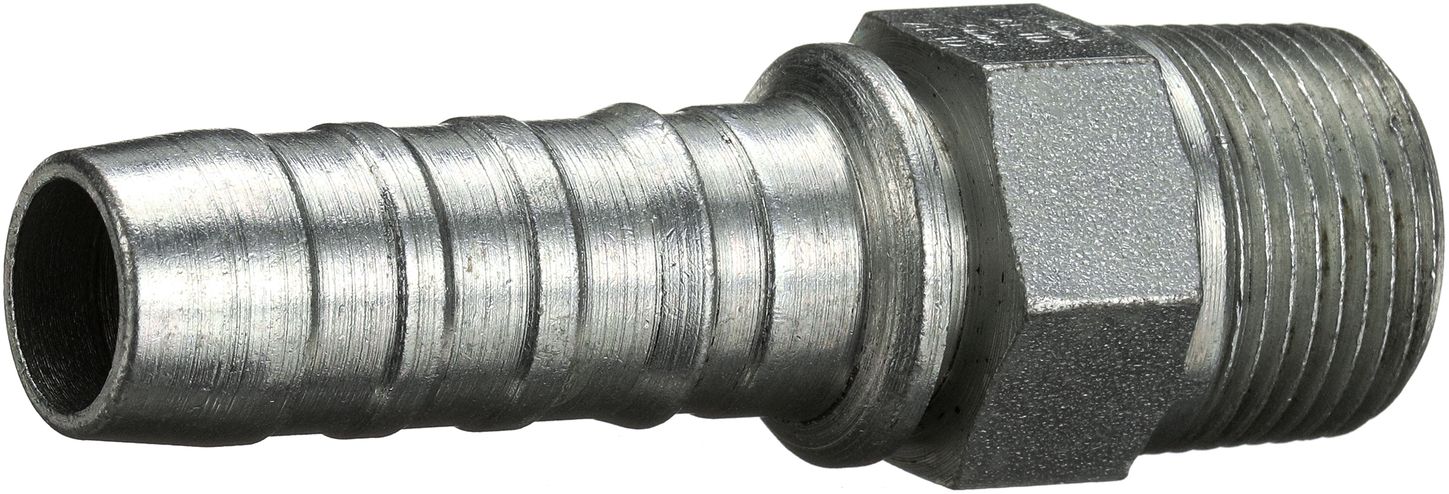

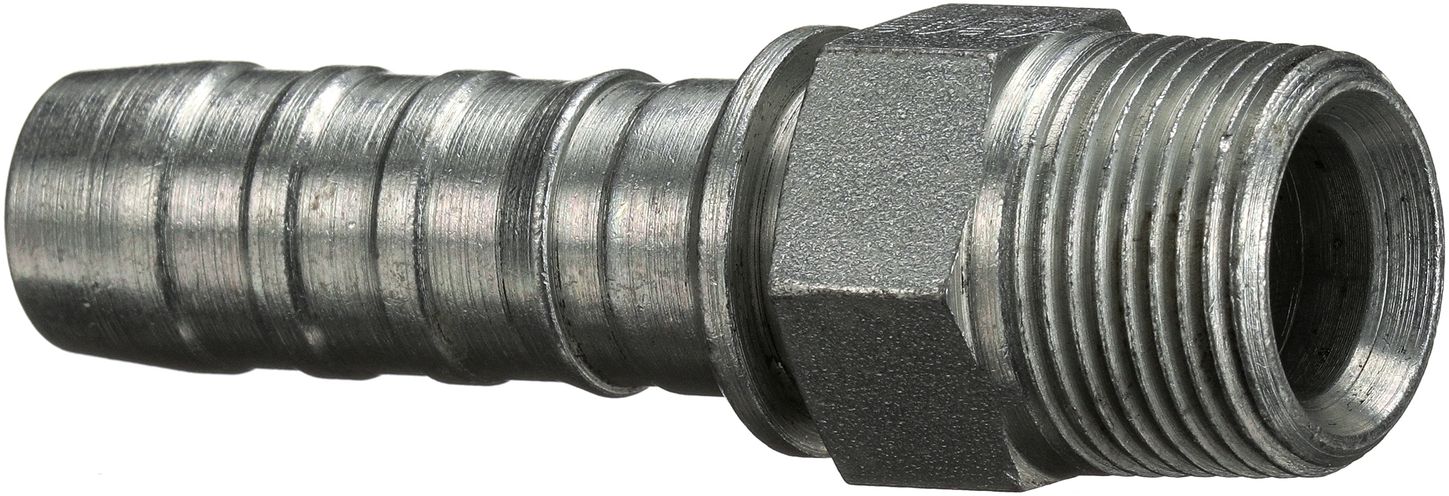

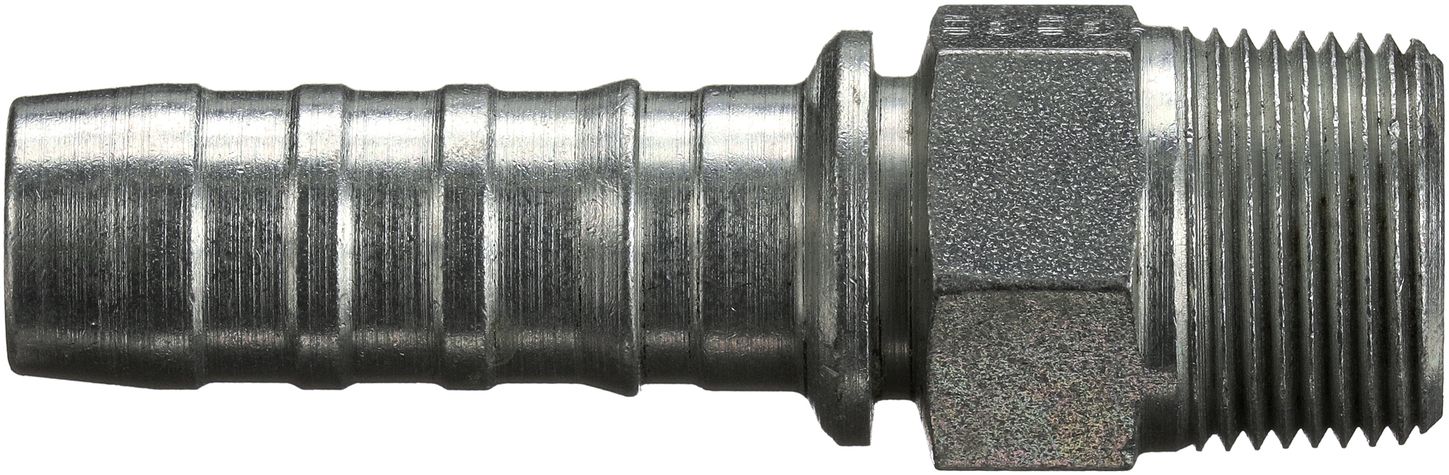

Gates G20100-0808 (8GS-8MP) Male Pipe (NPTF - 30 Cone Seat) (GlobalSpiral)
SKU: G20100-0808Cross reference: G201000808TEXF4-0808-PMUPC/EAN: 072053302493
Male Pipe (NPTF - 30 Cone Seat) (GlobalSpiral)
$8.99
EachIn stock
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system.
- “Bite-the-wire” crimp for improved coupling retention
Specifications
| SKU | G20100-0808 |
|---|---|
| Cross reference | G201000808, TEXF4-0808-PM |
| UPC/EAN | 072053302493 |
| Coupling Style | GlobalSpiral Couplings |
| Swivel | No |
| Thread Configuration | Male Pipe (MP) |
| Inside Diameter | 1/2" (08) |
| Bend Angle | Straight |
| Seal Type | Thread Interference/Mated Angle |
| Thread Size | 1/2" (08) |
| Gates Code | G20 |
