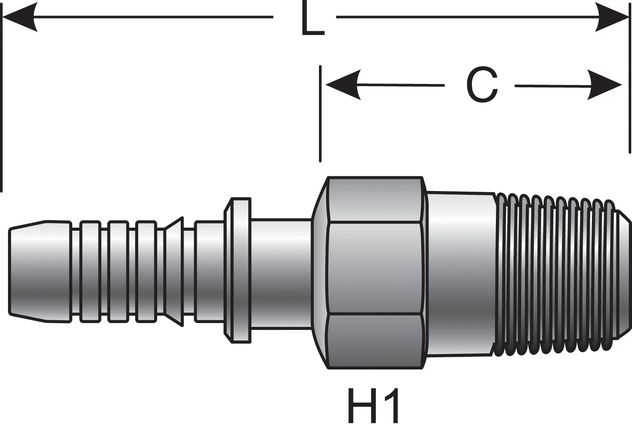

Gates G20100-1616 (16GS-16MP) Male Pipe (NPTF - 30 Cone Seat) (GlobalSpiral)
SKU: G20100-1616Cross reference: 80023F4-1616-PMG201001616UPC/EAN: 072053297454
Male Pipe (NPTF - 30 Cone Seat) (GlobalSpiral)
$20.18
EachUsually ships within 3 days
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system.
- “Bite-the-wire” crimp for improved coupling retention
Specifications
| SKU | G20100-1616 |
|---|---|
| Cross reference | 80023, F4-1616-PM, G201001616 |
| UPC/EAN | 072053297454 |
| Coupling Style | GlobalSpiral Couplings |
| Swivel | No |
| Thread Configuration | Male Pipe (MP) |
| Inside Diameter | 1" (16) |
| Bend Angle | Straight |
| Seal Type | Thread Interference/Mated Angle |
| Thread Size | 1" (16) |
| Gates Code | G20 |
