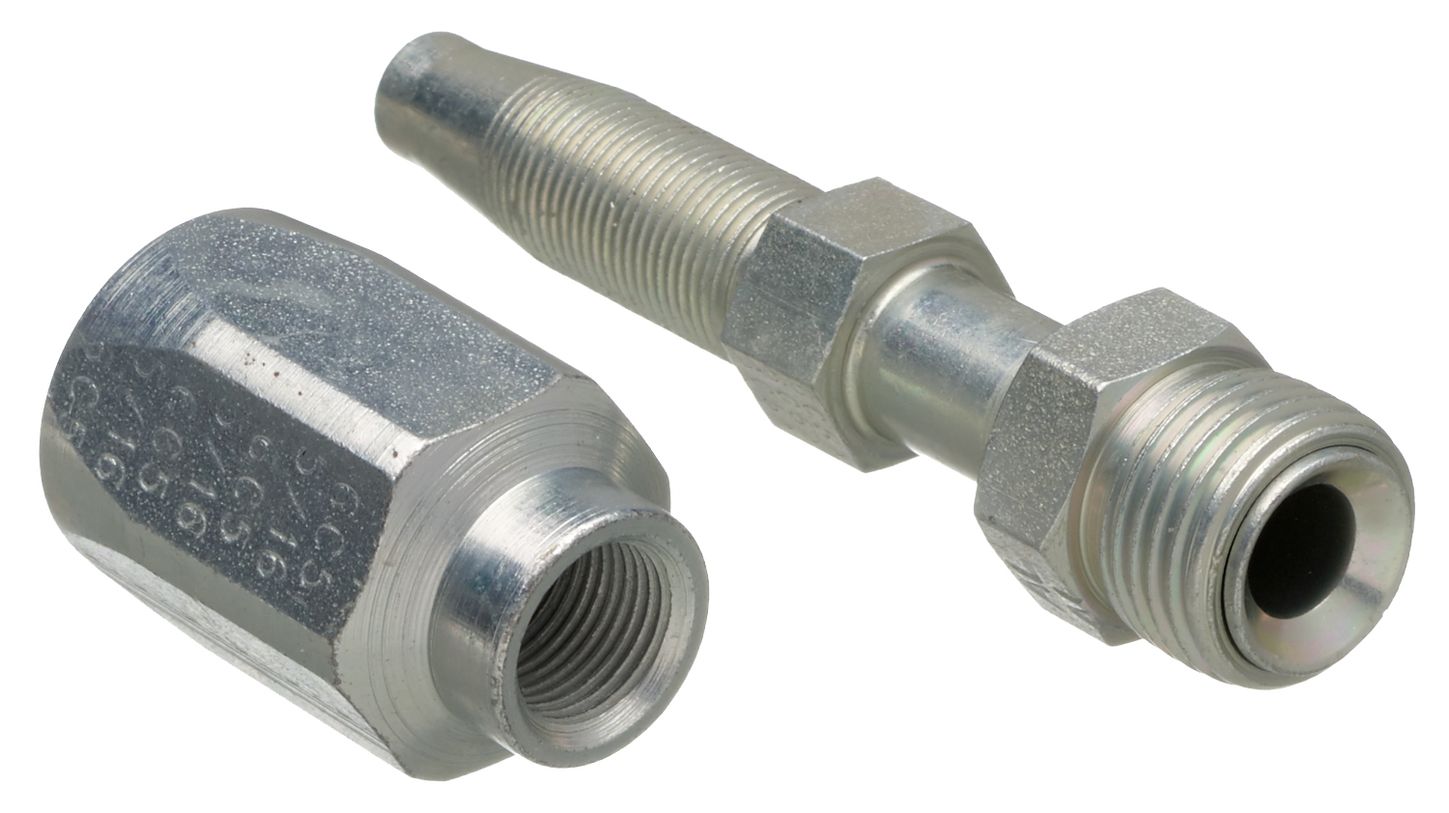

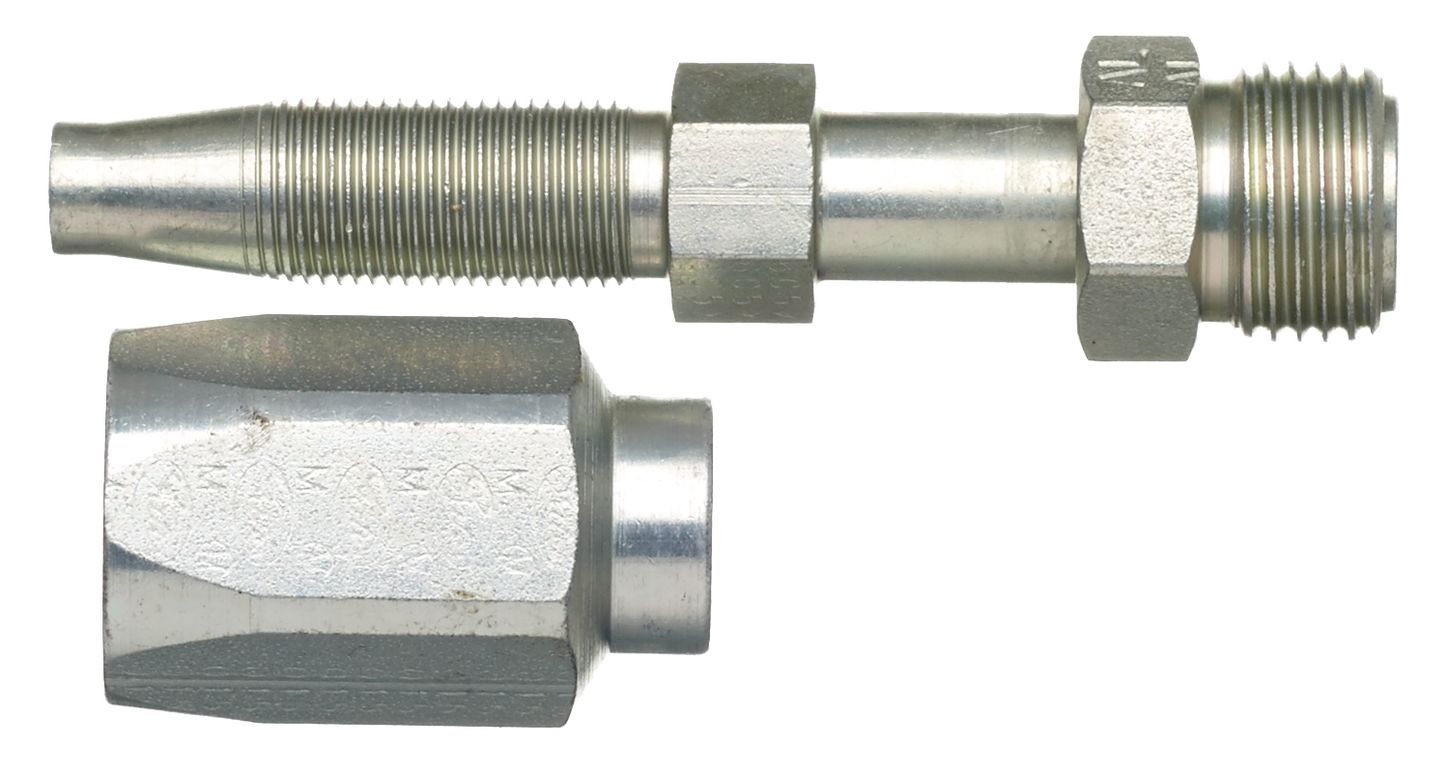

Gates G34500-0808 (8C5X-8RMIX) Male SAE 45 Flare Inverted Swivel - Steel (C5CXH, C5C, C5D & C5M Hose)
SKU: G34500-0808Cross reference: G345000808UPC/EAN: 072053160451
Male SAE 45 Flare Inverted Swivel - Steel (C5CXH, C5C, C5D & C5M Hose)
$28.14
EachUsually Ships in 1-5 Business Days
Product Details
Gates D.O.T. Type A2 Field Attachable couplings work with C5C, C5CXH, C5D and C5M hoses to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler and hot oil lines without the need for a crimper.
- Designed to perform with Gates C5 hose
Specifications
| SKU | G34500-0808 |
|---|---|
| Cross reference | G345000808 |
| UPC/EAN | 072053160451 |
| Coupling Style | Field Attachable Couplings |
| Swivel | Yes |
| Thread Configuration | Male Inverted Flare (MI) |
| Inside Diameter | 3/8" (06) |
| Bend Angle | Straight |
| Thread Size | 3/4" (12) |
| Gates Code | G34 |
