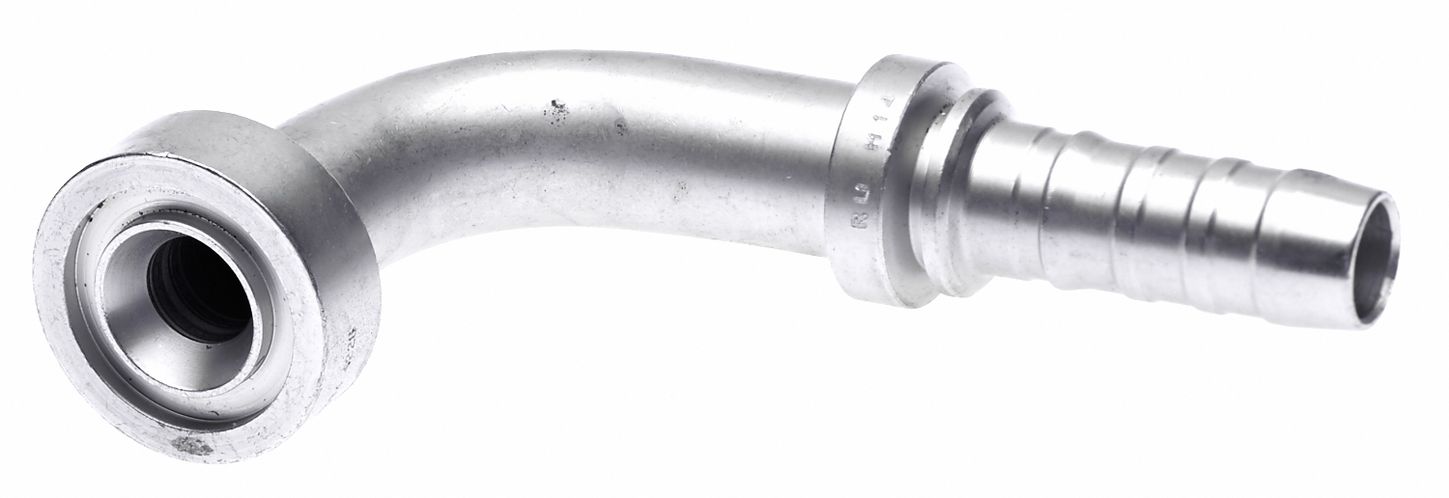

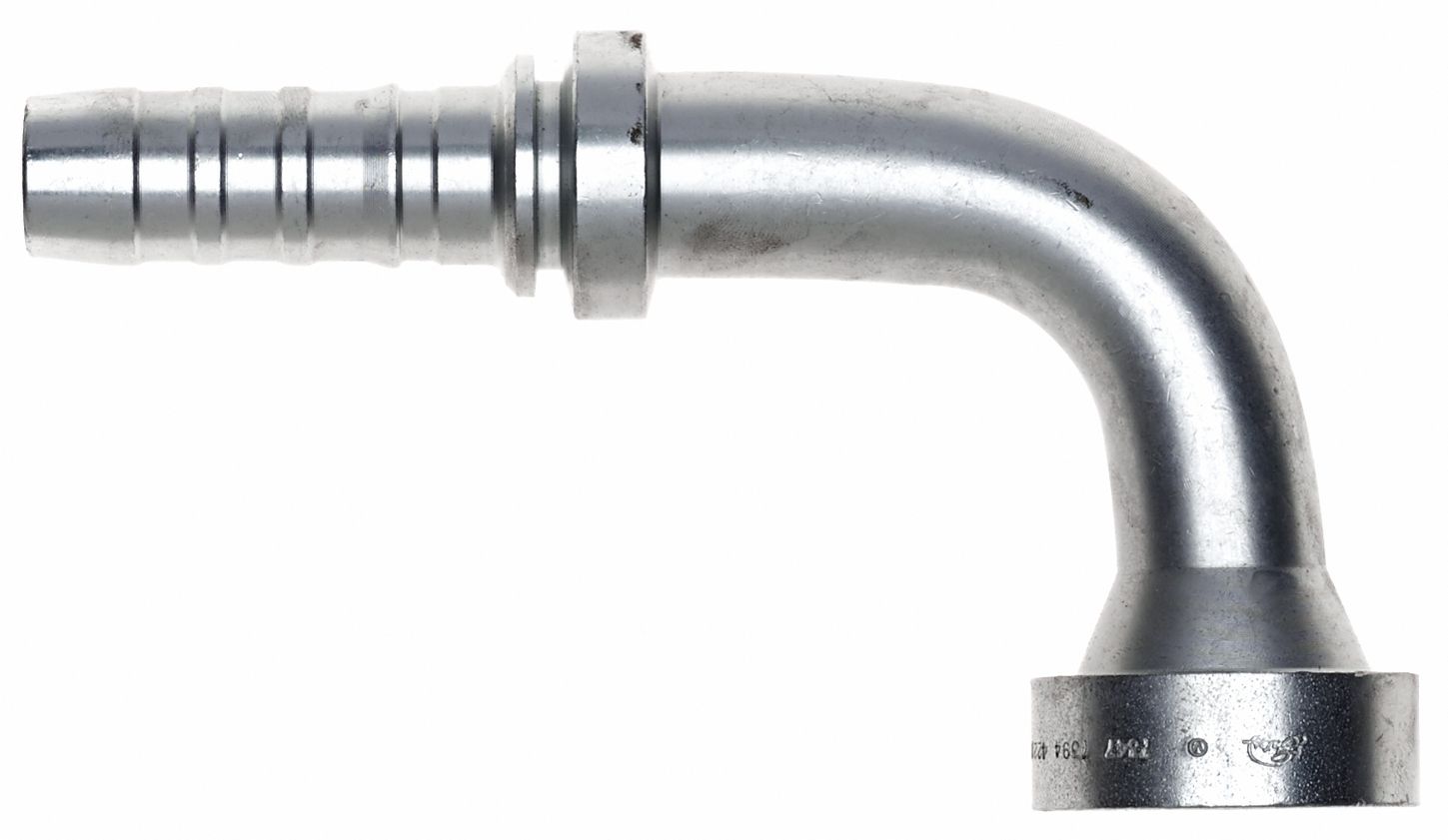

Gates G20415-1216 (12GS-16FLC90-068) 12GS-16FLC90-068 Caterpillar Style O-Ring Flange Hydraulic Fitting- 90 Bent Tube (GlobalSpiral)
SKU: G20415-1216Cross reference: 12GS-16FLC90-068734773955G204151216UPC/EAN: 072053408393
Caterpillar Style O-Ring Flange - 90 Bent Tube (GlobalSpiral)
$64.61
EachLow stock
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system. MGS Couplings for use with MC4-20 Crimper Only.
- “Bite-the-wire” crimp for improved coupling retention
Specifications
| SKU | G20415-1216 |
|---|---|
| Cross reference | 12GS-16FLC90-068, 734773955, G204151216 |
| UPC/EAN | 072053408393 |
| Coupling Style | GlobalSpiral Couplings |
| Swivel | No |
| Thread Configuration | SAE O-Ring Flange (FL) |
| Inside Diameter | 3/4" (12) |
| Bend Angle | 90° |
| Seal Type | O-Ring |
| Thread Size | 1" (16) |
| Gates Code | G20 |
You may also like
Gates G20415-1212 (12GS-12FLC90-068) Caterpillar Style O-Ring Flange - 90 Bent Tube (GlobalSpiral)
$57.78Each
Gates G20415-2024 (20GS-24FLC90-077) Caterpillar Style O-Ring Flange - 90 Bent Tube (GlobalSpiral)
$120.41Each
Gates G20407-1216 (12GS-16FLC45-035) Caterpillar Style O-Ring Flange - 45 Bent Tube (GlobalSpiral)
$81.94Each

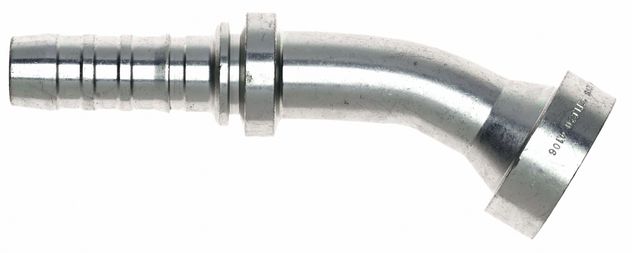

Gates G20404-1216 (12GS-16FLC30-022) Caterpillar Style O-Ring Flange - 30 Bent Tube (GlobalSpiral)
$79.92Each
Gates G20415-2020 (20GS-20FLC90-077) Caterpillar Style O-Ring Flange - 90 Bent Tube (GlobalSpiral)
$120.25Each

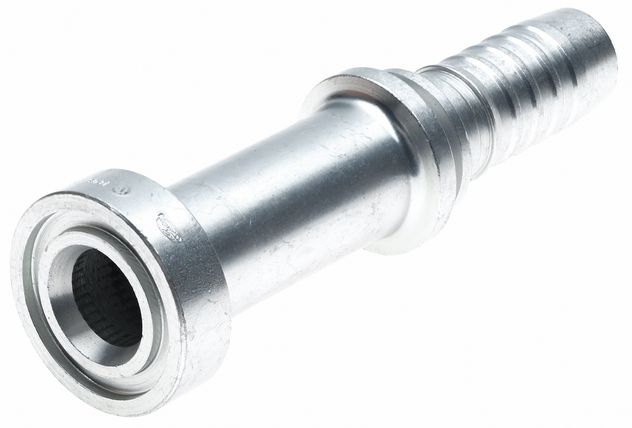

Gates G20400-1216 (12GS-16FLC) Caterpillar Style O-Ring Flange (GlobalSpiral)
