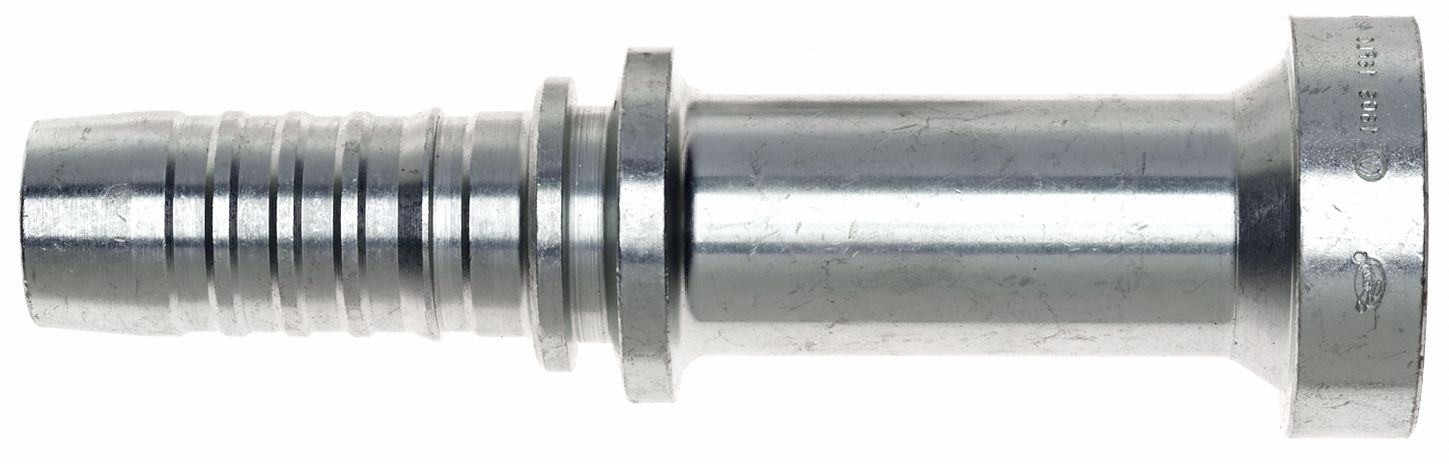

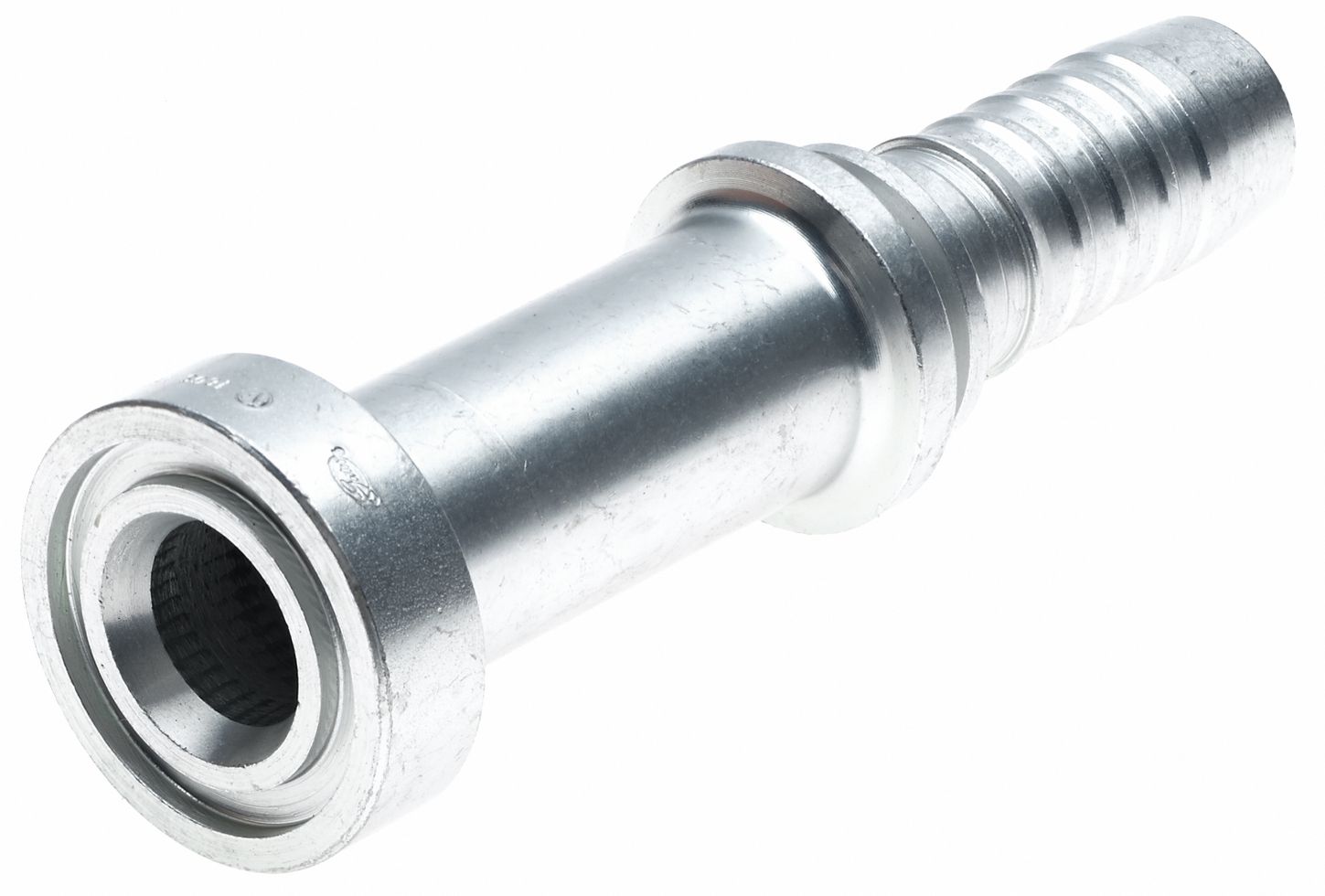

Gates G20400-1216 (12GS-16FLC) Caterpillar Style O-Ring Flange (GlobalSpiral)
SKU: G20400-1216Cross reference: G204001216TEXF4-1216-FLHCUPC/EAN: 072053399493
Caterpillar Style O-Ring Flange (GlobalSpiral)
$57.69
EachIn stock
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system. MGS Couplings for use with MC4-20 Crimper Only.
- “Bite-the-wire” crimp for improved coupling retention
Specifications
| SKU | G20400-1216 |
|---|---|
| Cross reference | G204001216, TEXF4-1216-FLHC |
| UPC/EAN | 072053399493 |
| Coupling Style | GlobalSpiral Couplings |
| Swivel | No |
| Thread Configuration | SAE O-Ring Flange (FL) |
| Inside Diameter | 3/4" (12) |
| Bend Angle | Straight |
| Seal Type | O-Ring |
| Thread Size | 1" (16) |
| Gates Code | G20 |
