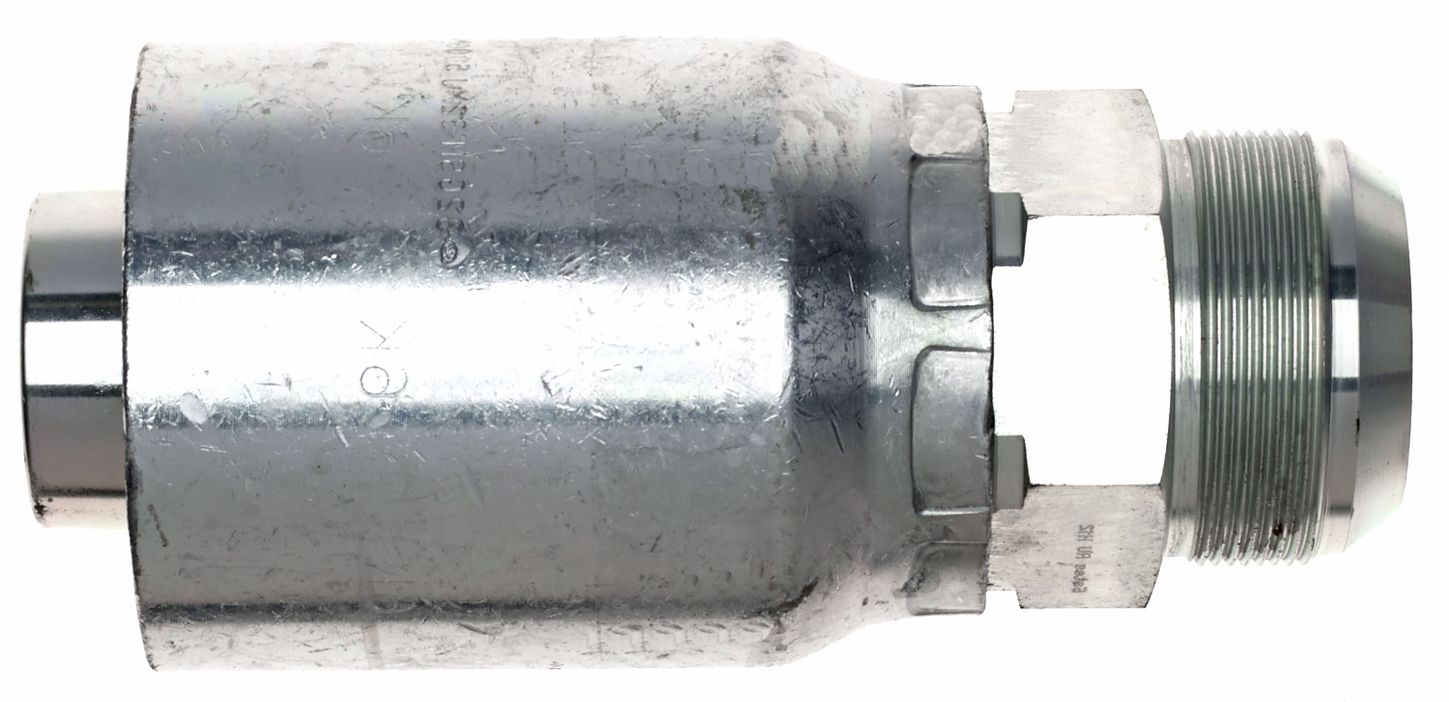

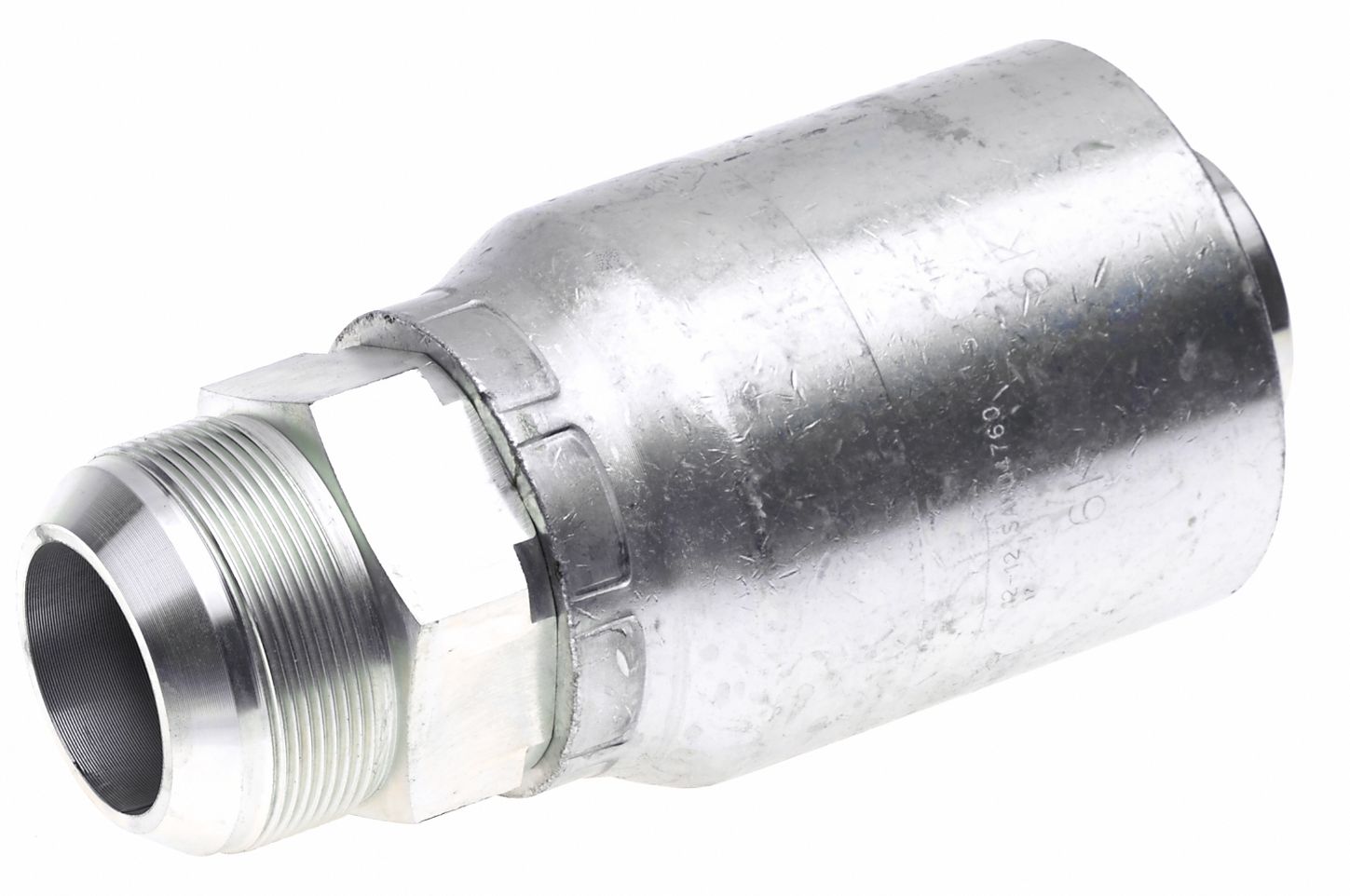

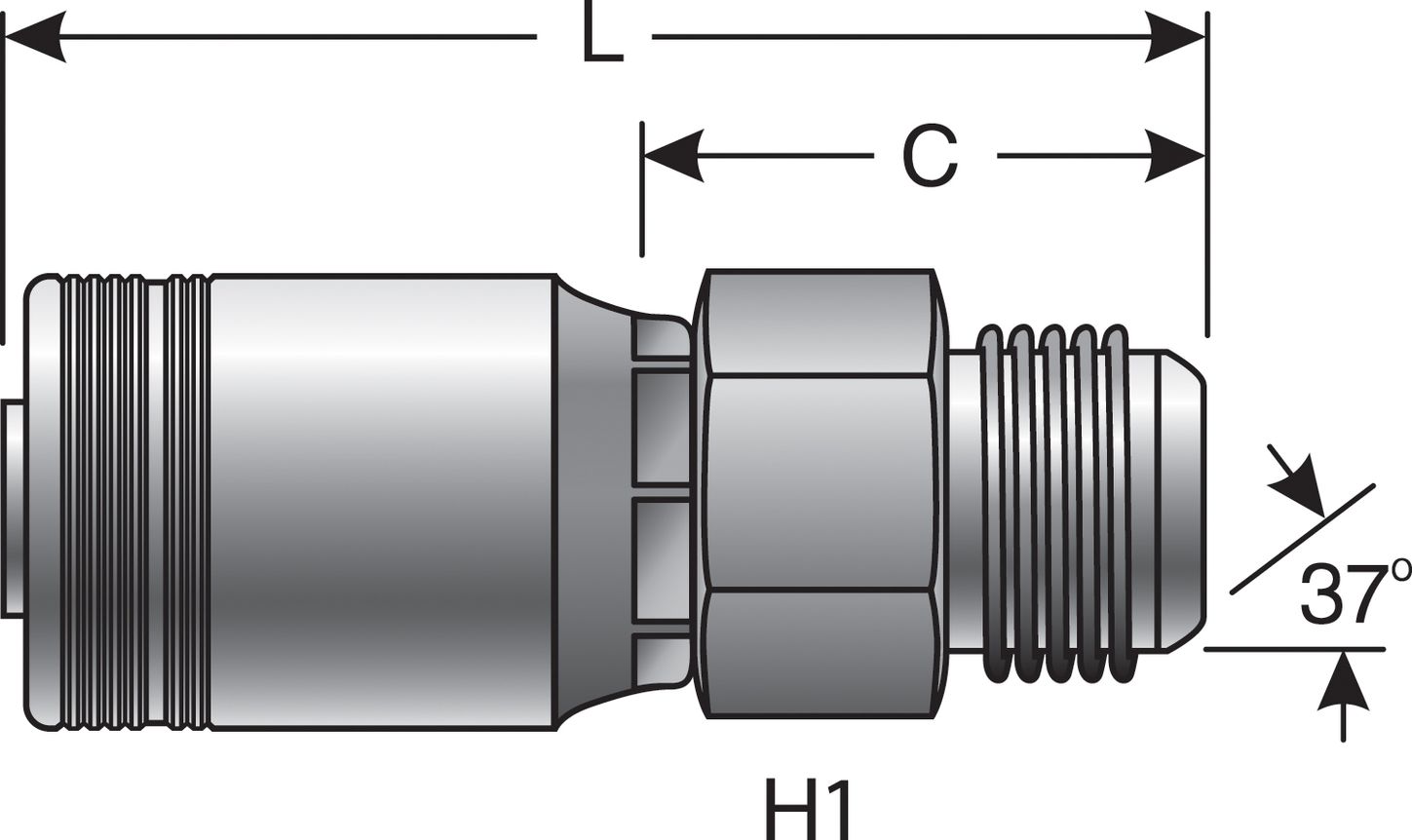

Gates G24165-2424 (24GSM-24MJ) Male JIC 37 Flare (GlobalSpiral MAX Pressure)
SKU: G24165-2424Cross reference: G241652424TEXF4-2424-JMUPC/EAN: 770075389934
Male JIC 37 Flare (GlobalSpiral MAX Pressure)
$98.01
EachIn stock
Product Details
As mobile equipment platforms become more compact and powerful, they require larger diameter hydraulic hose with higher working pressures to meet performance demands. Large equipment used in industries like mining, oil and gas, and construction are pushing current hose size and pressure limits. To meet this demand, Gates introduces an industry first: the 32GSM no-skive coupling.
- Greater power and capacity from existing equipment by replacing 2 in., 5000 psi hose assemblies
Specifications
| SKU | G24165-2424 |
|---|---|
| Cross reference | G241652424, TEXF4-2424-JM |
| UPC/EAN | 770075389934 |
| Coupling Style | GlobalSpiral Max Pressure Couplings |
| Swivel | No |
| Thread Configuration | Male JIC (MJ) |
| Inside Diameter | 1 1/2" (24) |
| Bend Angle | Straight |
| Seal Type | Mated Angle |
| Thread Size | 1 7/8" (30) |
| Gates Code | G24 |
