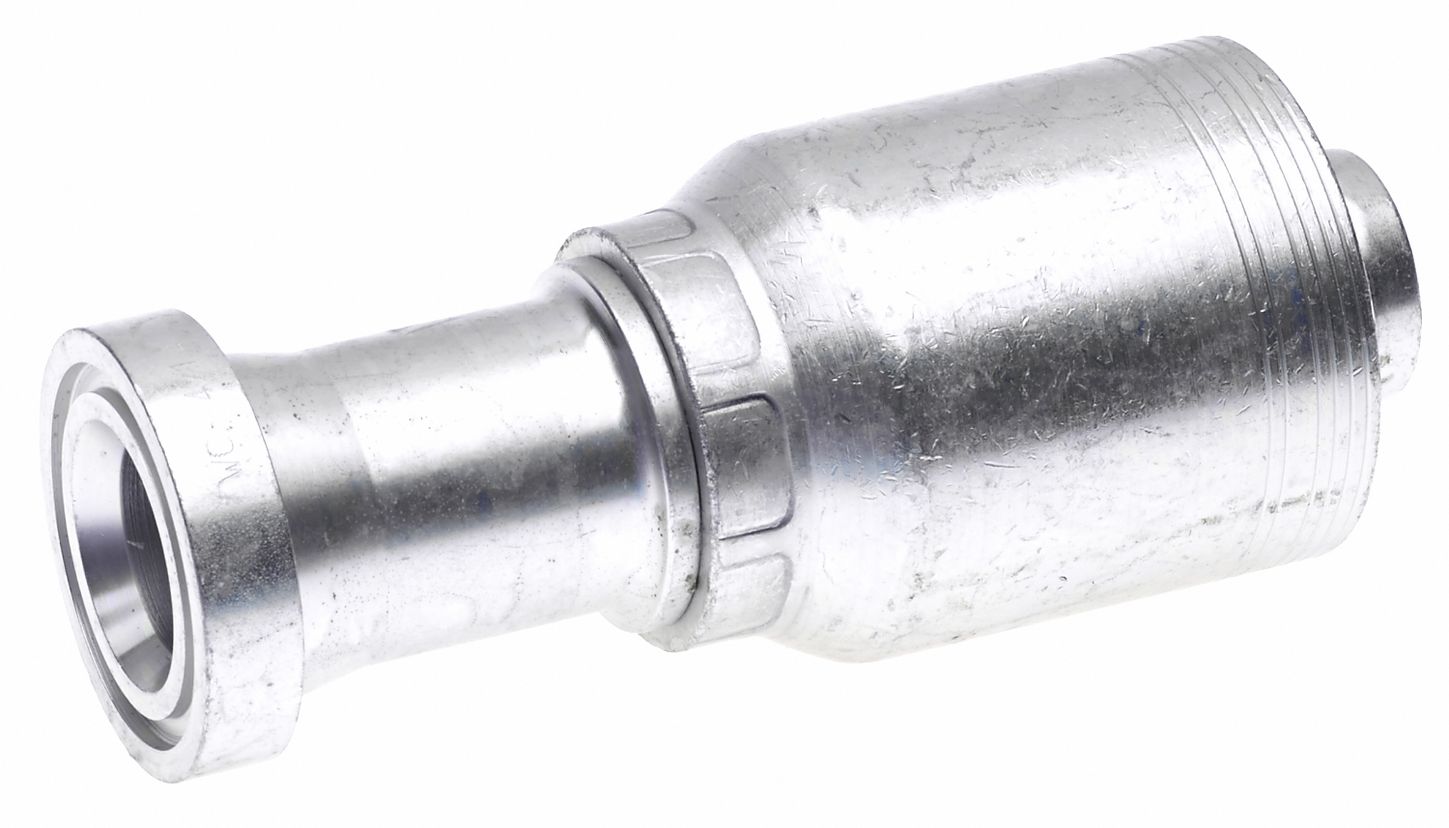

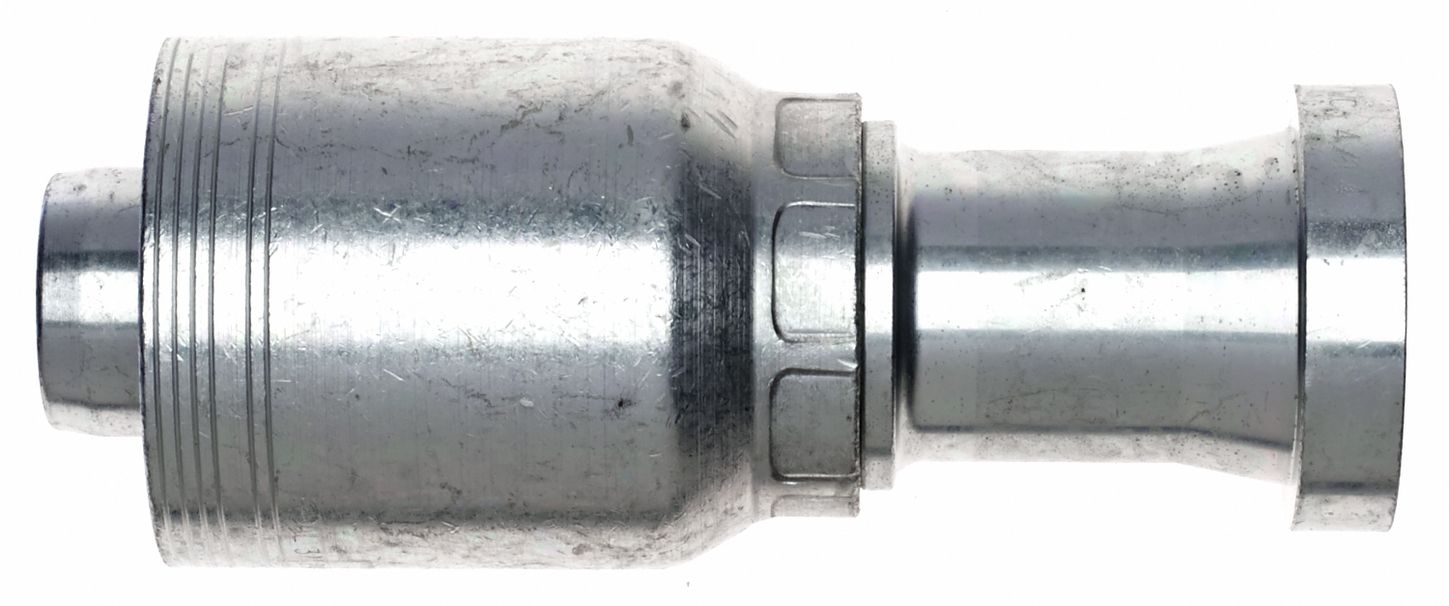

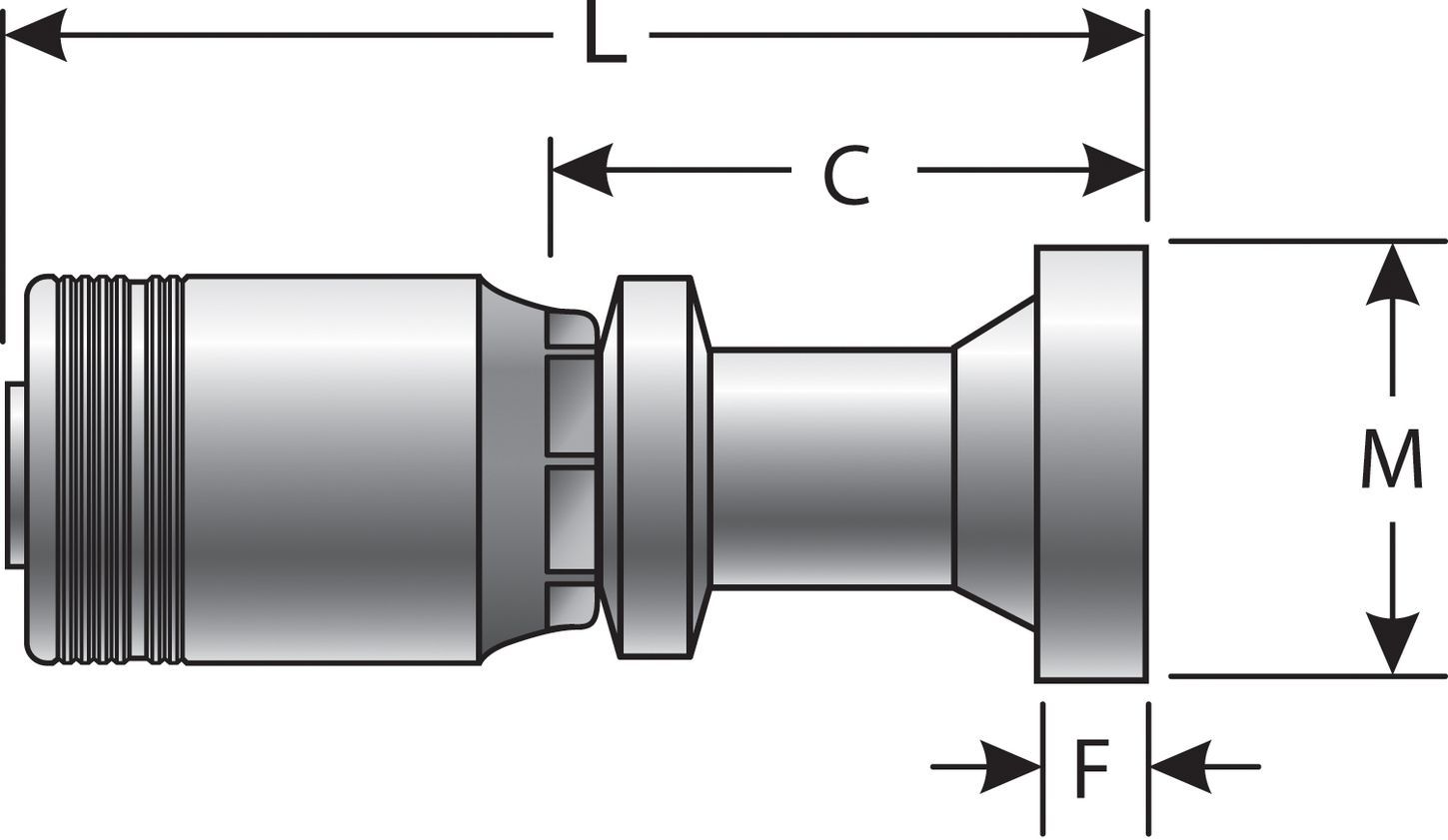

Gates G24400-2424 (24GSM-24FLC) Caterpillar Style O-Ring Flange (GlobalSpiral MAX Pressure)
SKU: G24400-2424Cross reference: G244002424UPC/EAN: 770075378587
Caterpillar Style O-Ring Flange (GlobalSpiral MAX Pressure)
$112.52
EachLow stock
Product Details
As mobile equipment platforms become more compact and powerful, they require larger diameter hydraulic hose with higher working pressures to meet performance demands. Large equipment used in industries like mining, oil and gas, and construction are pushing current hose size and pressure limits. To meet this demand, Gates introduces an industry first: the 32GSM no-skive coupling.
- Greater power and capacity from existing equipment by replacing 2 in., 5000 psi hose assemblies
Specifications
| SKU | G24400-2424 |
|---|---|
| Cross reference | G244002424 |
| UPC/EAN | 770075378587 |
| Coupling Style | GlobalSpiral Max Pressure Couplings |
| Swivel | No |
| Thread Configuration | SAE O-Ring Flange (FL) |
| Inside Diameter | 1 1/2" (24) |
| Bend Angle | Straight |
| Seal Type | O-Ring |
| Thread Size | 1 1/2" (24) |
| Gates Code | G24 |
You may also like
Gates G24400-2432 (24GSM-32FLC) Caterpillar Style O-Ring Flange (GlobalSpiral MAX Pressure)
$177.10Each
Gates G24401-2424 (24GSM-24FLCL) Caterpillar Style O-Ring Flange (GlobalSpiral MAX Pressure)
$183.89Each

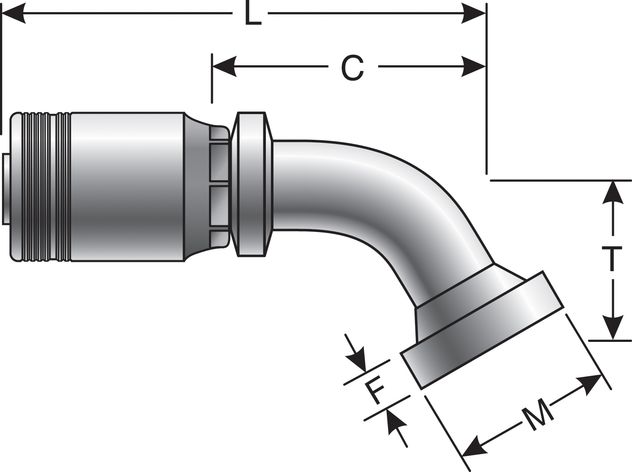

Gates G24409-2424 (24GSM-24FLC60-055) Caterpillar Style O-Ring Flange - 60 Bent Tube (GlobalSpiral MAX Pressure)
$193.66Each

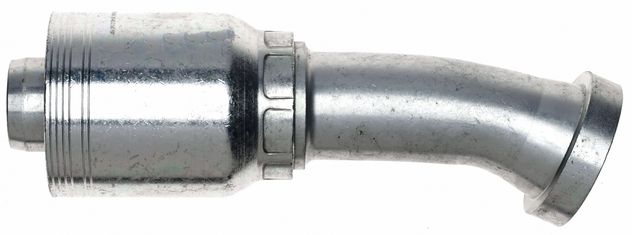

Gates G24402-2424 (24GSM-24FLC22-017) Caterpillar Style O-Ring Flange - 22 Bent Tube (GlobalSpiral MAX Pressure)
$192.32Each
Gates G24404-2424 (24GSM-24FLC30-023) Caterpillar Style O-Ring Flange - 30 Bent Tube (GlobalSpiral MAX Pressure)
$249.56Each

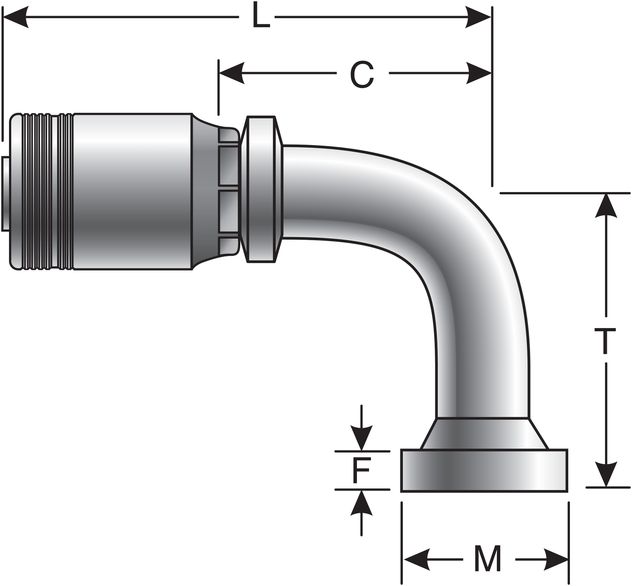

Gates G24415-2424 (24GSM-24FLC90-087) Caterpillar Style O-Ring Flange - 90 Bent Tube (GlobalSpiral MAX Pressure)
$160.69Each
Gates G24407-2424 (24GSM-24FLC45-039) Caterpillar Style O-Ring Flange - 45 Bent Tube (GlobalSpiral MAX Pressure)
$175.94Each
Gates G24300-2424 (24GSM-24FL) Code 61 O-Ring Flange (GlobalSpiral MAX Pressure)
$108.87Each
Gates G24350-2424 (24GSM-24FLH) Code 62 O-Ring Flange Heavy (GlobalSpiral MAX Pressure)
$110.82Each
Gates G24374-2424 (24GSM-24FLHCFM) Code 62 O-Ring Flange Heavy with Captive Flange (GlobalSpiral MAX Pressure)
$190.25Each

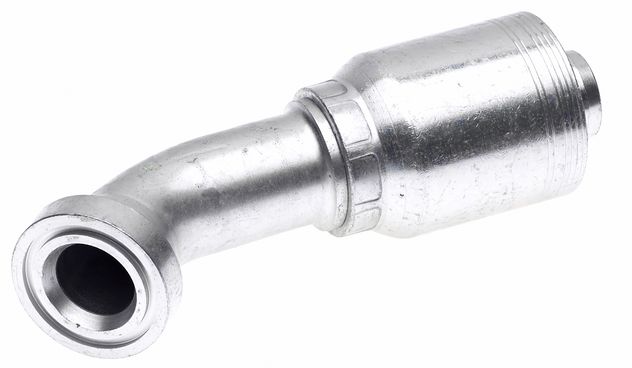

Gates G24407-2432 (24GSM-32FLC45-059) Caterpillar Style O-Ring Flange - 45 Bent Tube (GlobalSpiral MAX Pressure)
$209.49Each

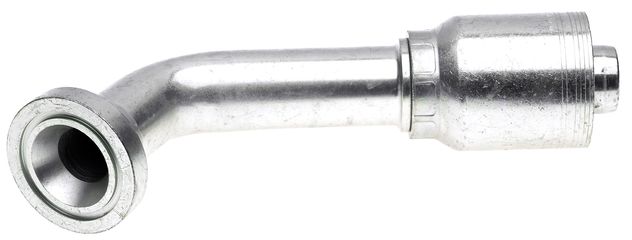

Gates G24409-2432 (24GSM-32FLC60-087) Caterpillar Style O-Ring Flange - 60 Bent Tube (GlobalSpiral MAX Pressure)
