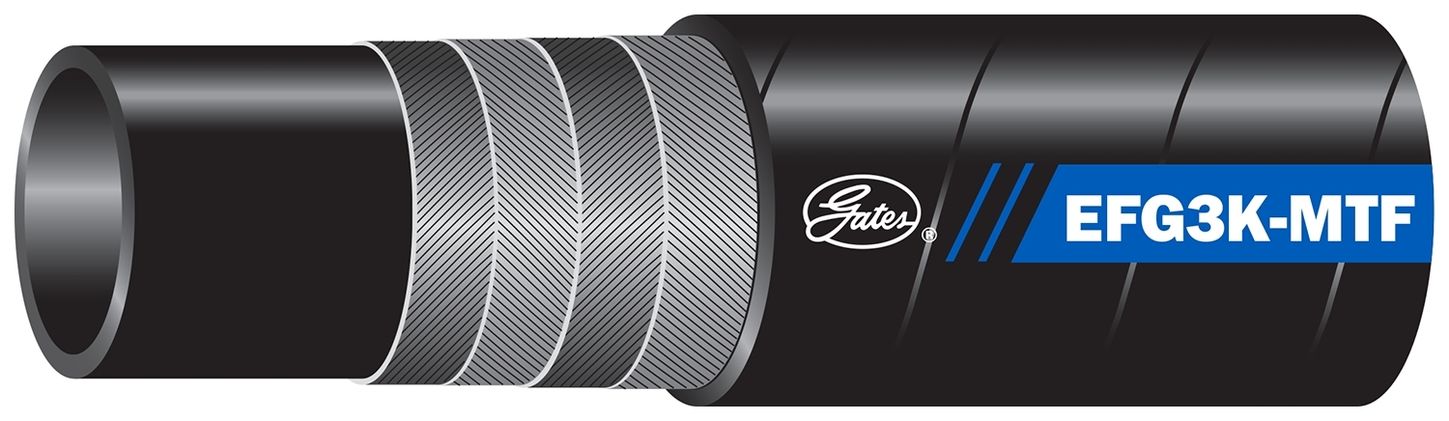

Gates 71053 (24EFG3K-MTF) EFG3K Spiral Wire Hose - SAE 100R12 - MegaTuff Cover
SKU: 71053UPC/EAN: 770075376798
EFG3K Spiral Wire Hose - SAE 100R12 - MegaTuff Cover
$3,343.45
Roll 50Usually ships within 4-10 days
Product Details
Recommended for very high-pressure, high-impulse hydraulic applications, EFG3K is compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids.
- For use with GlobalSpiral Couplings [G20 Series], GlobalSpiral One-Piece Couplings [G21 Series, -20 Only], GlobalSpiral Plus Couplings [G22 Series], Stainless Steel Couplings [G17 Series - Braid] and [G18 - Spiral]
Specifications
| SKU | 71053 |
|---|---|
| UPC/EAN | 770075376798 |
| Hose Cover Type | MegaTuff |
| Inside Diameter | 1 1/2" (24) |
| Hose Layer Count | 4 |
| Hose Reinforcement | Alternating Spiral Wire |
| Hose Reinforcement Material | Wire |
| Industry Specification | SAE 100R12 |
| Hose Series | EFG3K |
| Working Pressure Rating (PSI) | 3000 |
You may also like
Gates 85431 (24EFG3K-MTF) EFG3K Spiral Wire Hose - SAE 100R12 - MegaTuff Cover
$1,883.85EachGates 4651-2202 (24EFG3K-MTF) EFG3K Spiral Wire Hose - SAE 100R12 - MegaTuff Cover
$13,345.76Roll 200Gates 85435 (32EFG3K-MTF) EFG3K Spiral Wire Hose - SAE 100R12 - MegaTuff Cover
$2,406.89EachGates 70950 (20EFG3K-MTF) EFG3K Spiral Wire Hose - SAE 100R12 - MegaTuff Cover
$4,542.16Roll 100Gates 71057 (32EFG3K-MTF) EFG3K Spiral Wire Hose - SAE 100R12 - MegaTuff Cover
$4,275.17Roll 50Gates 70951 (20EFG3K-MTF) EFG3K Spiral Wire Hose - SAE 100R12 - MegaTuff Cover
$9,225.27Roll 200Gates 85490 (20EFG3K-MTF) EFG3K Spiral Wire Hose - SAE 100R12 - MegaTuff Cover
$1,306.34Each

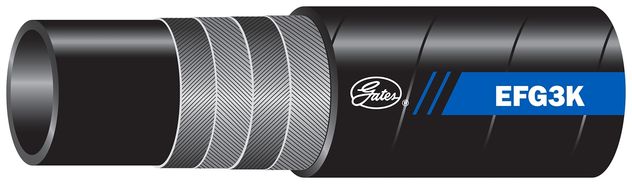

Gates 71054 (24EFG3K) EFG3K Spiral Wire Hose - SAE 100R12
