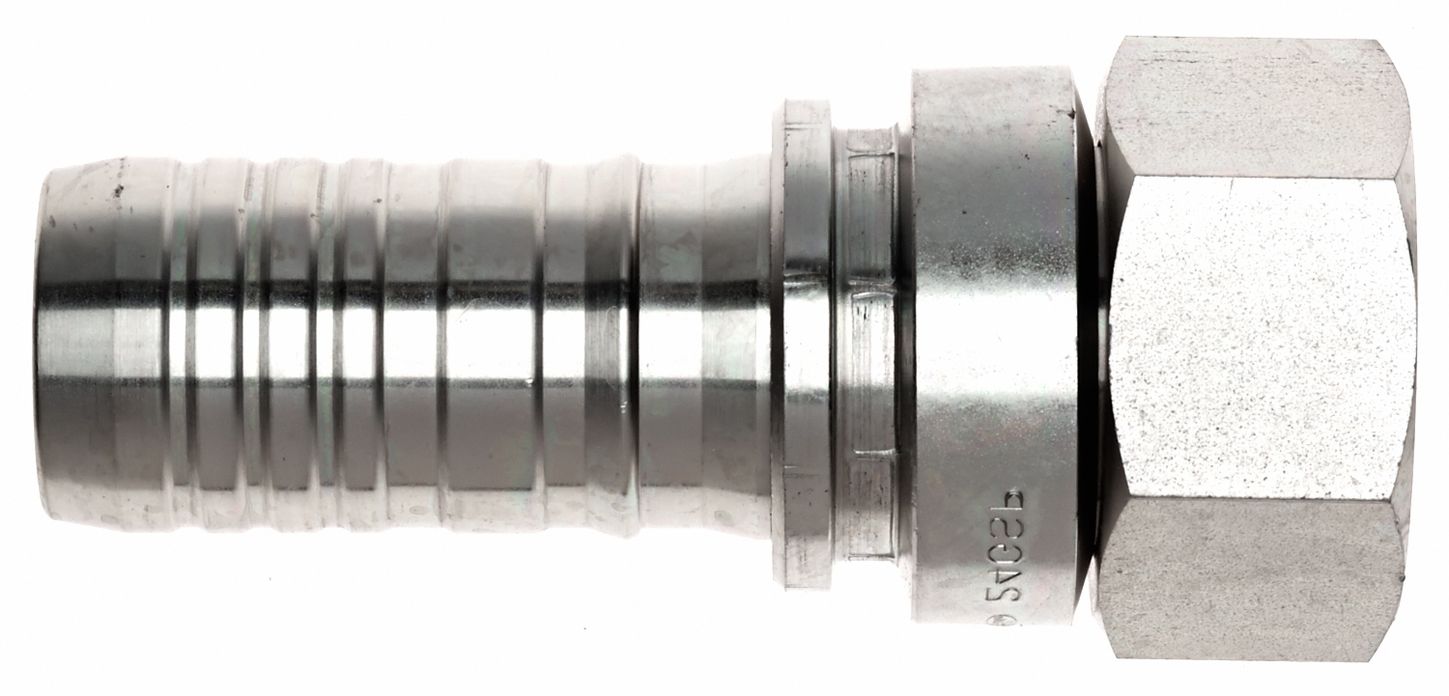

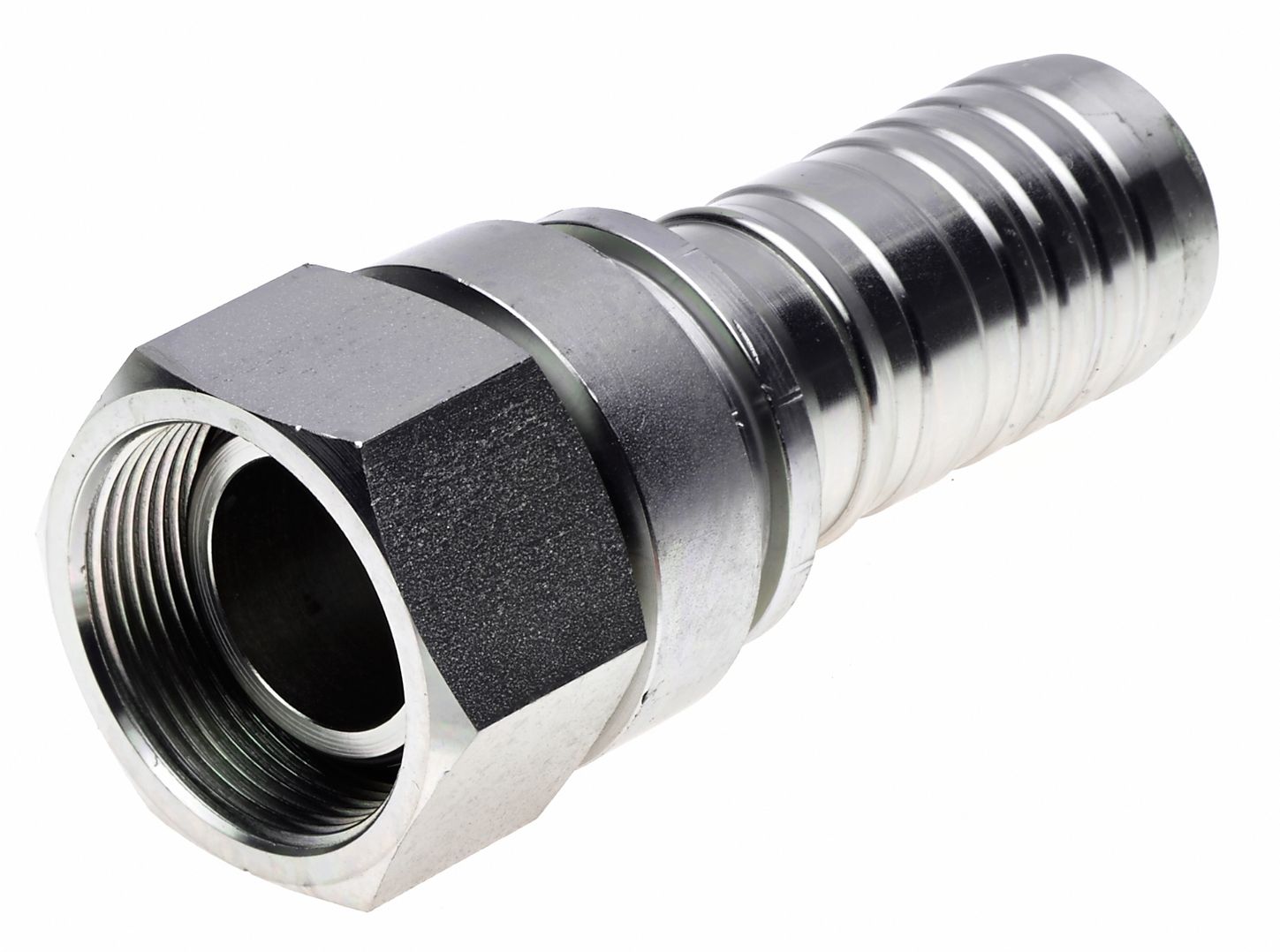

Gates G22830-3232 (32GSP-32FBSPORX) Female British Standard Parallel Pipe O-Ring Swivel (GlobalSpiral Plus)
SKU: G22830-3232Cross reference: G228303232TEXF6-3232-BFSUPC/EAN: 770075424451
Female British Standard Parallel Pipe O-Ring Swivel (GlobalSpiral Plus)
$200.99
EachLow stock
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system.
- “Bite-the-wire” crimp for improved coupling retention
Specifications
| SKU | G22830-3232 |
|---|---|
| Cross reference | G228303232, TEXF6-3232-BFS |
| UPC/EAN | 770075424451 |
| Coupling Style | GlobalSpiral Plus Couplings |
| Swivel | Yes |
| Thread Configuration | Female British Standard Pipe with O-Ring (FBSPOR) |
| Inside Diameter | 2" (32) |
| Bend Angle | Straight |
| Seal Type | O-Ring |
| Thread Size | 2" (32) |
| Gates Code | G22 |
