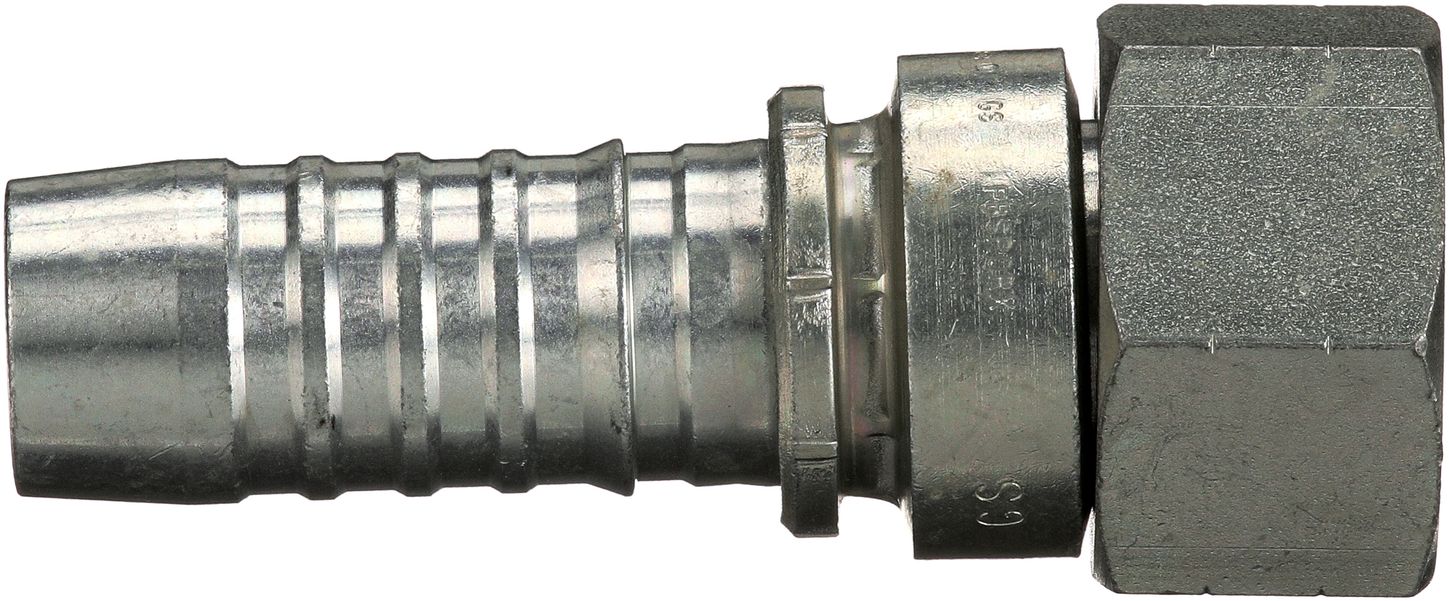

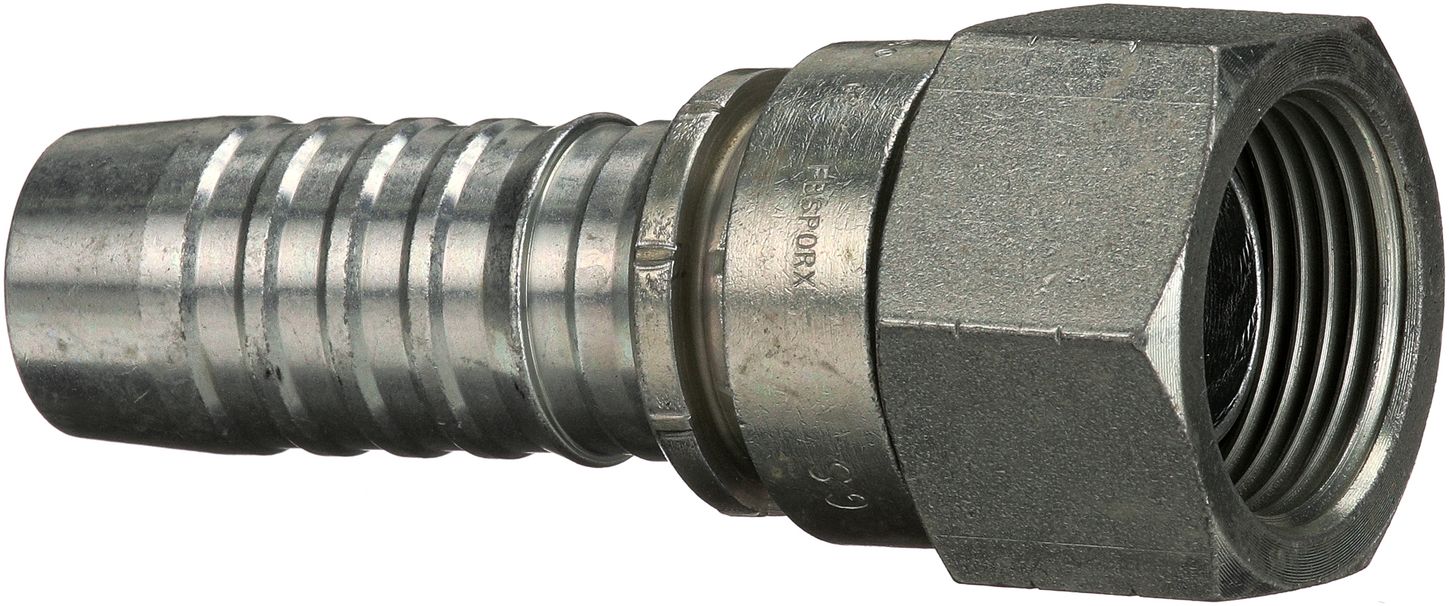

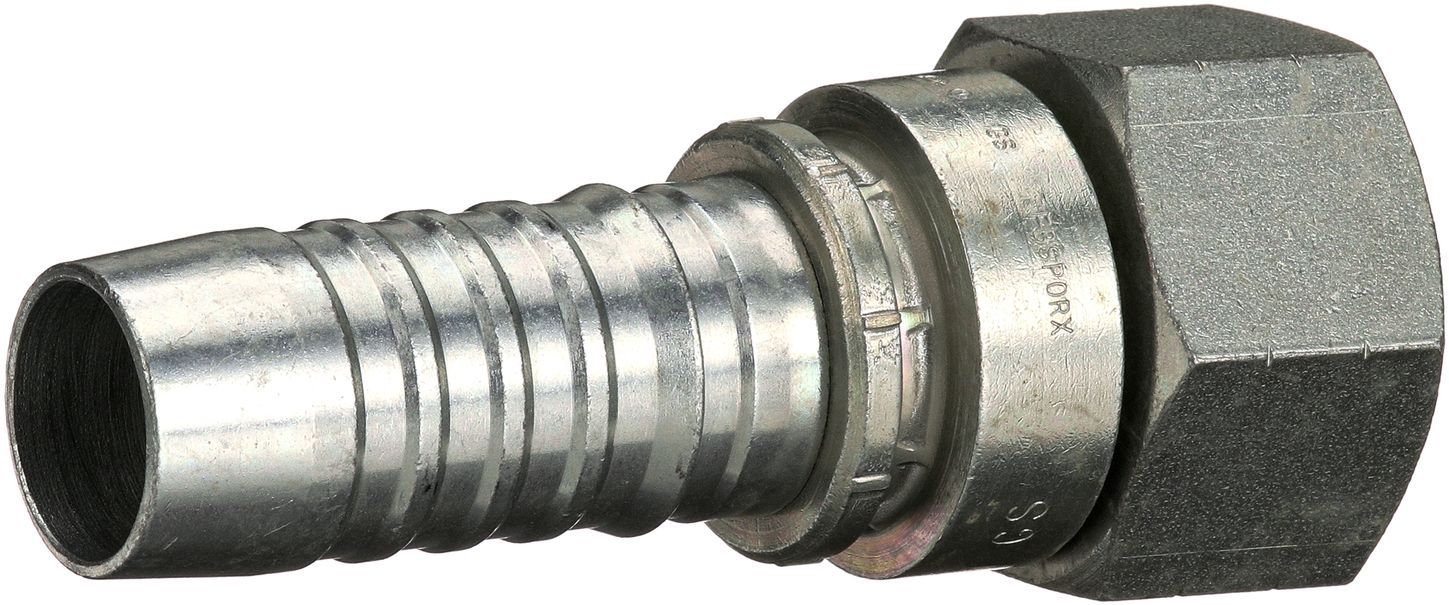

Gates G20830-1620 Female British Standard Parallel Pipe O-Ring Swivel (GlobalSpiral)
SKU: G20830-1620UPC/EAN: 770075418344
Female British Standard Parallel Pipe O-Ring Swivel (GlobalSpiral)
$82.17
EachUsually ships within 3 days
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system.
- “Bite-the-wire” crimp for improved coupling retention
Specifications
| SKU | G20830-1620 |
|---|---|
| UPC/EAN | 770075418344 |
| Coupling Style | GlobalSpiral Couplings |
| Swivel | Yes |
| Thread Configuration | Female British Standard Pipe with O-Ring (FBSPOR) |
| Inside Diameter | 1" (16) |
| Bend Angle | Straight |
| Seal Type | O-Ring |
| Thread Size | 1 1/2" (24) |
| Gates Code | G20 |
