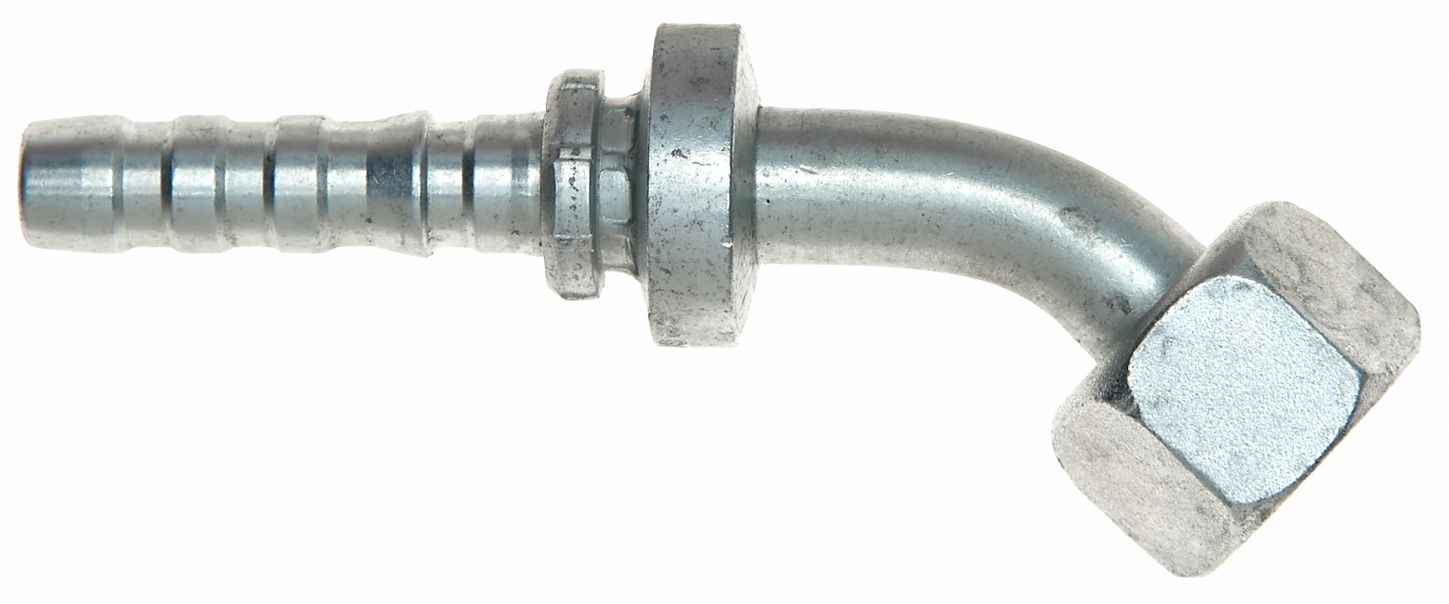

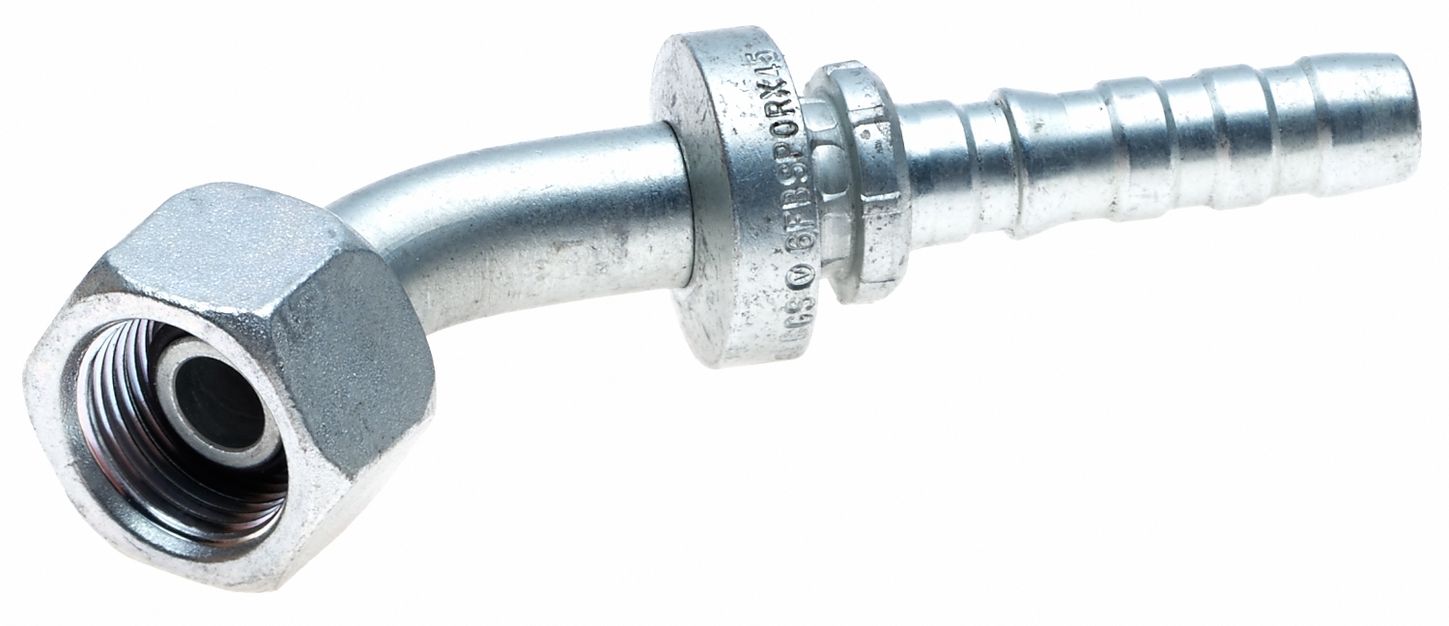

Gates G20831-1616 (16GS-16FBSPORX45) Female British Std Parallel Pipe O-Ring Swivel-45 Bent Tube (GlobalSpiral)
SKU: G20831-1616Cross reference: G208311616UPC/EAN: 072053454659
Female British Std Parallel Pipe O-Ring Swivel-45 Bent Tube (GlobalSpiral)
$76.59
EachLow stock
Product Details

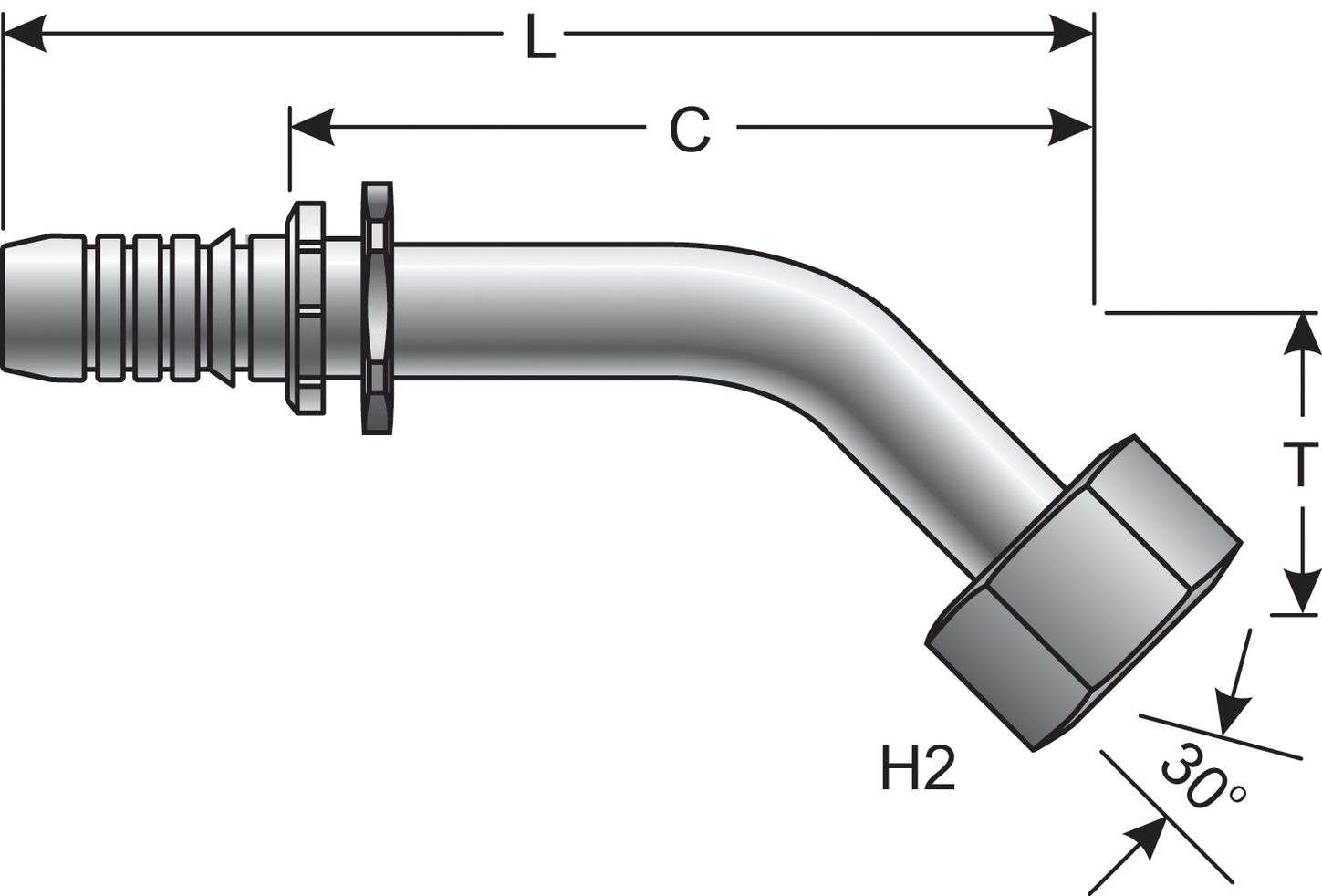

GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system. S, M and L Drops and Hex per ISO Working Draft 12151-6. MGS Couplings for use with MC4-20 Crimper Only.
- “Bite-the-wire” crimp for improved coupling retention
Specifications
| SKU | G20831-1616 |
|---|---|
| Cross reference | G208311616 |
| UPC/EAN | 072053454659 |
| Coupling Style | GlobalSpiral Couplings |
| Swivel | Yes |
| Thread Configuration | Female British Standard Pipe with O-Ring (FBSPOR) |
| Inside Diameter | 1" (16) |
| Bend Angle | 45° |
| Seal Type | O-Ring |
| Thread Size | 1" (16) |
| Gates Code | G20 |
