Velvac 016455 COMP FIT-45 DEG.M.ELB.5/8T X 3/4PPRE

The Velvac Push-Lock Air Brake Fitting, 45° Male Swivel Elbow provides a secure and efficient connection for ⅝” x ¾” SAE J844 nylon tubing. Its high-strength composite body reduces weight compared to traditional brass fittings, while the 45-degree male swivel allows for easy positioning. With a maximum operating pressure of 150 psi and a temperature range from -40°F to +200°F, this fitting is engineered for reliable performance in demanding environments.

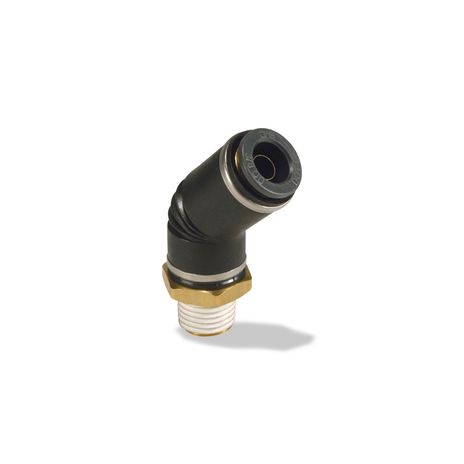

Velvac Push-Lock Air Brake Fitting, 45° Male Swivel Elbow, ⅝” x ¾” (016455)

PROODUCT OVERVIEW

The Velvac Push-Lock Air Brake Fitting, 45° Male Swivel Elbow is designed for secure, leak-free connections in commercial vehicle brake systems. It accommodates ⅝” x ¾” SAE J844 nylon tubing and features a durable composite body, offering significant weight savings over brass alternatives. The brass pipe fitting end enhances durability, ensuring long-lasting performance. This fitting’s 45-degree male swivel elbow provides flexibility, making it easy to install and adjust in confined spaces. The engineered tube retention system and advanced seal design deliver superior holding strength and side load retention. Additionally, a positive release bushing allows quick and easy tubing insertion and removal. With pre-applied thread sealant on all male pipe threads, installation time is reduced, and the risk of leaks is minimized. Capable of withstanding temperatures from -40°F to +200°F and operating pressures up to 150 psi, the Velvac Push-Lock Air Brake Fitting is ideal for demanding applications in commercial vehicles.

KEY FEATURES:

• Designed for use with SAE J844 nylon tubing
• Fits ⅝” x ¾” tubing configurations
• 45-degree male swivel elbow for flexible positioning
• High-strength composite body for weight savings
• Brass pipe fitting end for enhanced durability
• Operates in temperatures from -40°F to +200°F
• Maximum operating pressure of 150 psi
• Engineered tube retention system for superior holding and side load retention
• Positive release bushing for easy tubing insertion and removal
• Pre-applied thread sealant on male pipe threads for leak prevention and faster installation
