Velvac 016453 COMP FIT-45 DEG.M.ELB. 1/2T X1/4PPRE

The Velvac Push-Lock Air Brake Fitting, 45° Male Swivel Elbow is designed for connecting ¼” x ¼” SAE J844 nylon tubing. Featuring a high-strength composite body, it offers significant weight savings over traditional brass fittings. Compliant with DOT 49 CFR 571.106 and SAE J1131 standards, this fitting includes a built-in swivel for easy positioning. The engineered tube retention system and seal design ensure a secure and leak-free connection, while the positive release bushing allows for quick tubing installation and removal. With a maximum operating pressure of 145 psi and a temperature range from -45°F to +140°F, it is perfect for commercial vehicle brake systems.

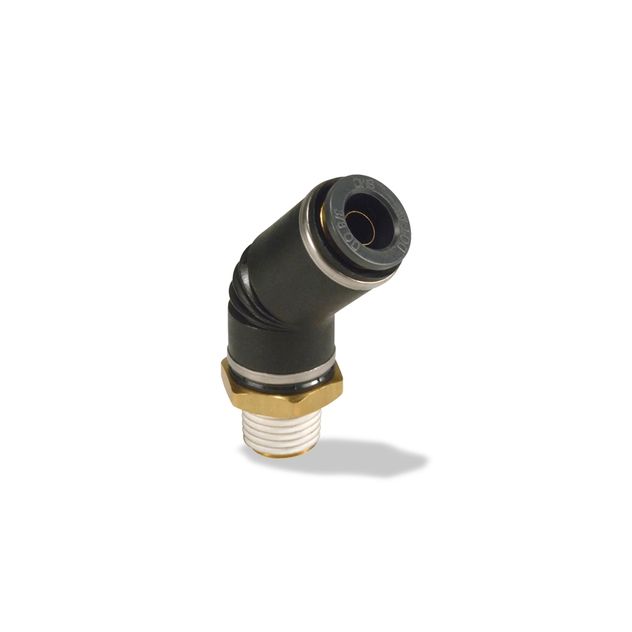

Velvac Push-Lock Air Brake Fitting, 45° Male Swivel Elbow, ¼” x ¼” (016453)

PRODUCT OVERVIEW

The Velvac Push-Lock Air Brake Fitting, 45° Male Swivel Elbow is an essential component for ensuring safe and reliable air brake connections in commercial vehicles. This ¼” x ¼” fitting is designed for use with SAE J844 nylon tubing, offering a secure and leak-free seal in demanding environments. Its high-strength composite body reduces overall vehicle weight, contributing to improved fuel efficiency and enhanced durability. Equipped with a built-in swivel feature, the 45° elbow design allows for easy alignment during installation, especially in confined spaces. The engineered tube retention system and seal design ensure superior holding strength and side load retention, minimizing the risk of leaks or disconnections. Additionally, the positive release bushing simplifies tubing insertion and removal, reducing installation time and labor. With a maximum operating pressure of 145 psi and a temperature range from -45°F to +140°F, this fitting is compliant with DOT 49 CFR 571.106 and meets SAE J1131 standards, ensuring reliable performance in commercial brake systems.

KEY FEATURES:

• Designed for use with SAE J844 nylon tubing
• Fits ¼” x ¼” tubing configurations
• 45° Male Swivel Elbow design for flexible positioning
• High-strength composite body for weight savings and durability
• Brass pipe fitting end for corrosion resistance and secure sealing
• Compliant with DOT 49 CFR 571.106 and SAE J1131 standards
• Operating temperature range from -45°F to +140°F
• Maximum operating pressure of 145 psi
• Engineered tube retention system for superior holding and side load retention
• Positive release bushing for quick and easy tubing insertion and removal
• Built-in thread sealant applied to all male pipe threads for leak-free installation
