Velvac 016415 COMP FIT-F.BRANCH TEE 1/4T X 1/4PPRE

Velvac’s Push-Lock Female Branch Tee, designed for ¼” x ¼” SAE J844 nylon tubing, provides a reliable and leak-free connection. Its high-strength composite body ensures durability while reducing weight compared to brass fittings. Compliant with DOT 49 CFR 571.106 and SAE J1131 standards, it supports operating temperatures from -45°F to +140°F and a maximum pressure of 145 psi. Features include a positive release bushing for easy tubing removal and an engineered tube retention system for secure connections.

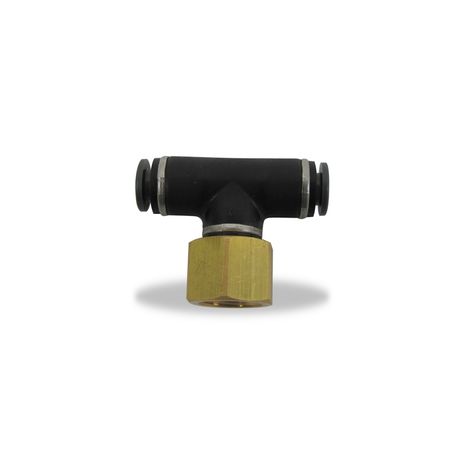

Velvac Push-Lock Air Brake Fitting, Female Branch Tee, ¼” x ¼” (016415)

PRODUCT OVERVIEW

The Velvac Push-Lock Air Brake Fitting, Female Branch Tee is an ideal choice for secure, efficient air brake connections in commercial vehicles. Designed to connect ¼” x ¼” SAE J844 nylon tubing, it features a high-strength composite body that offers significant weight savings without compromising durability. This fitting is compliant with DOT 49 CFR 571.106 and meets SAE J1131 performance standards, ensuring reliable and safe operation. It is engineered with an advanced tube retention system and seal design that provides superior holding power and side load retention. The positive release bushing further facilitates quick and easy tubing insertion and removal. With a maximum pressure rating of 145 psi and an operating temperature range from -45°F to +140°F, it is built for long-lasting performance.

KEY FEATURES:

• Designed for SAE J844 nylon tubing
• Fits ¼” x ¼” tubing configurations
• High-strength composite construction for durability and weight savings
• Compliant with DOT 49 CFR 571.106 and SAE J1131 standards
• Operating temperature range from -45°F to +140°F
• Maximum operating pressure of 145 psi
• Engineered tube retention system for enhanced holding power
• Positive release bushing for easy tubing insertion and removal
