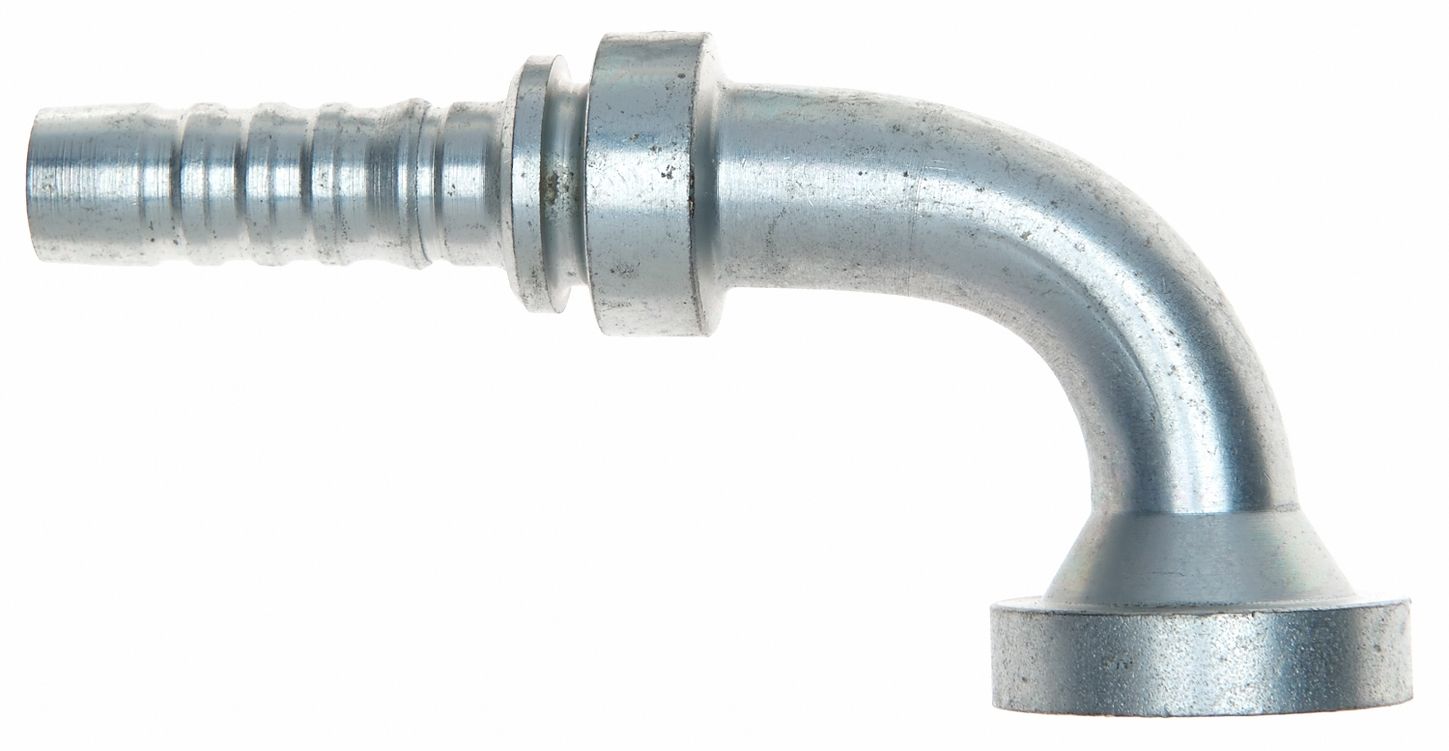

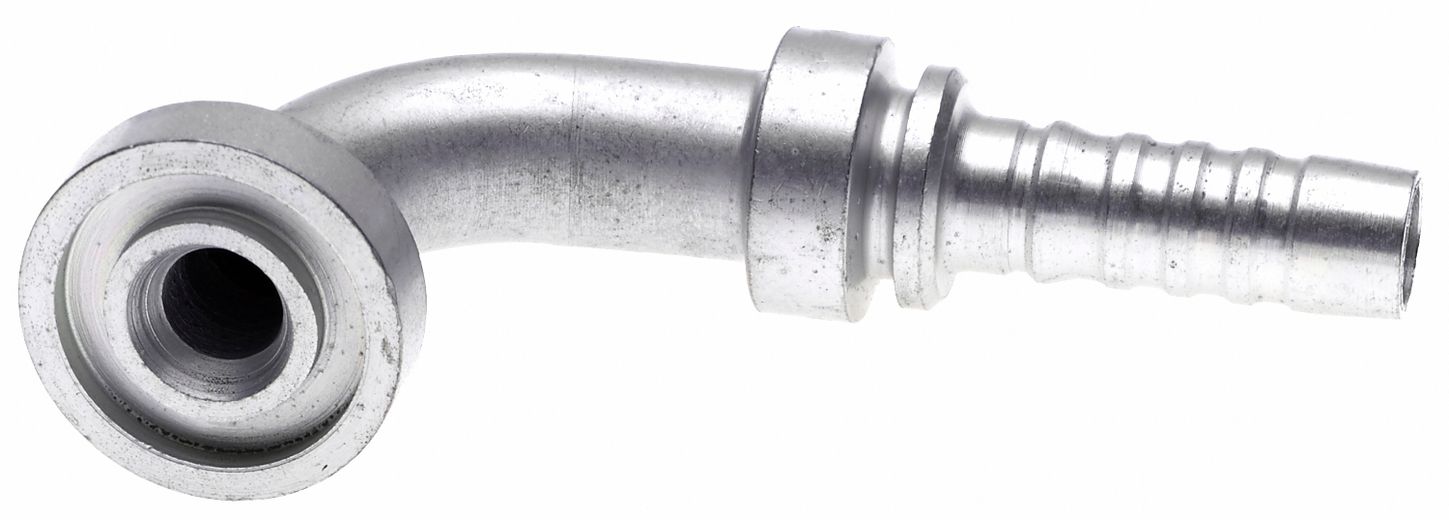

Gates G20364-1216T (12GS-16FLH90S-TCX) Code 62 O-Ring Flange Heavy-90 Bent Tube-TuffCoat Xtreme Plating (GlobalSpiral)
SKU: G20364-1216TUPC/EAN: 770075798491
Code 62 O-Ring Flange Heavy-90 Bent Tube-TuffCoat Xtreme Plating (GlobalSpiral)
$90.01
EachUsually ships within 4-10 days
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system.
- “Bite-the-wire” crimp for improved coupling retention
Specifications
| SKU | G20364-1216T |
|---|---|
| UPC/EAN | 770075798491 |
| Coupling Style | GlobalSpiral Couplings |
| Swivel | No |
| Thread Configuration | SAE O-Ring Flange (FL) |
| Inside Diameter | 3/4" (12) |
| Bend Angle | 90° |
| Seal Type | O-Ring |
| Thread Size | 1" (16) |
| Working Pressure Rating (PSI) | 6000 |
| Gates Code | G20 |
