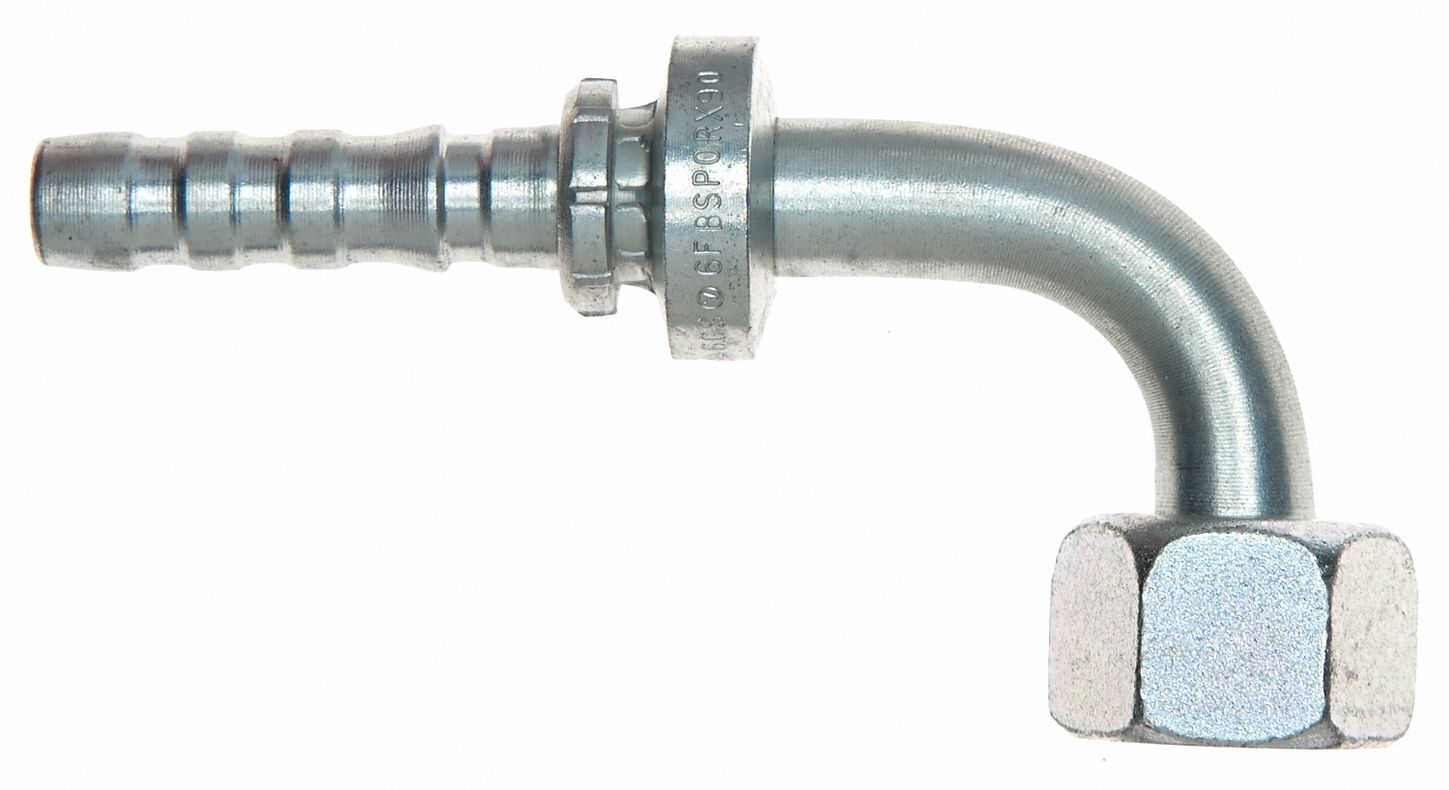

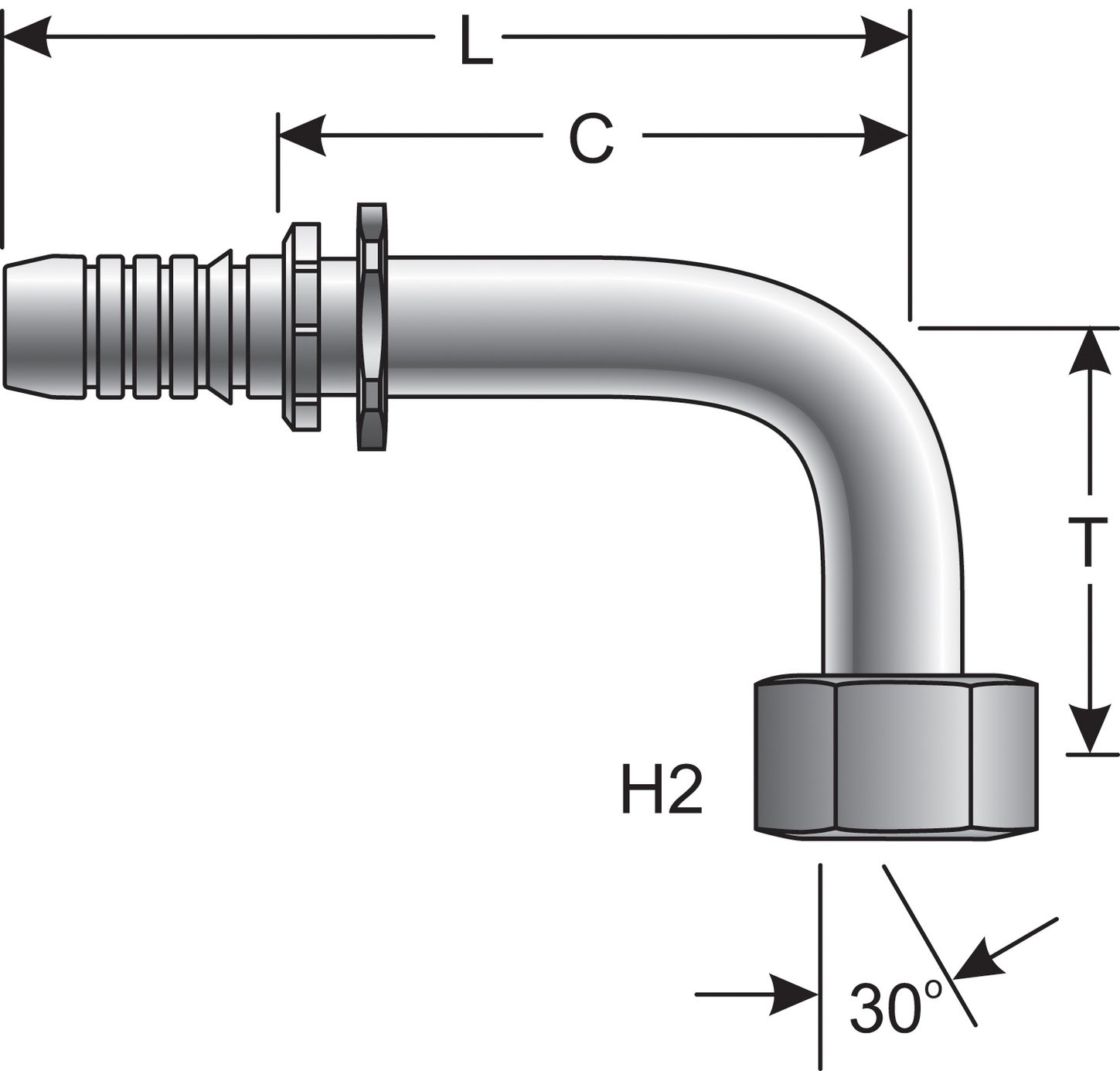

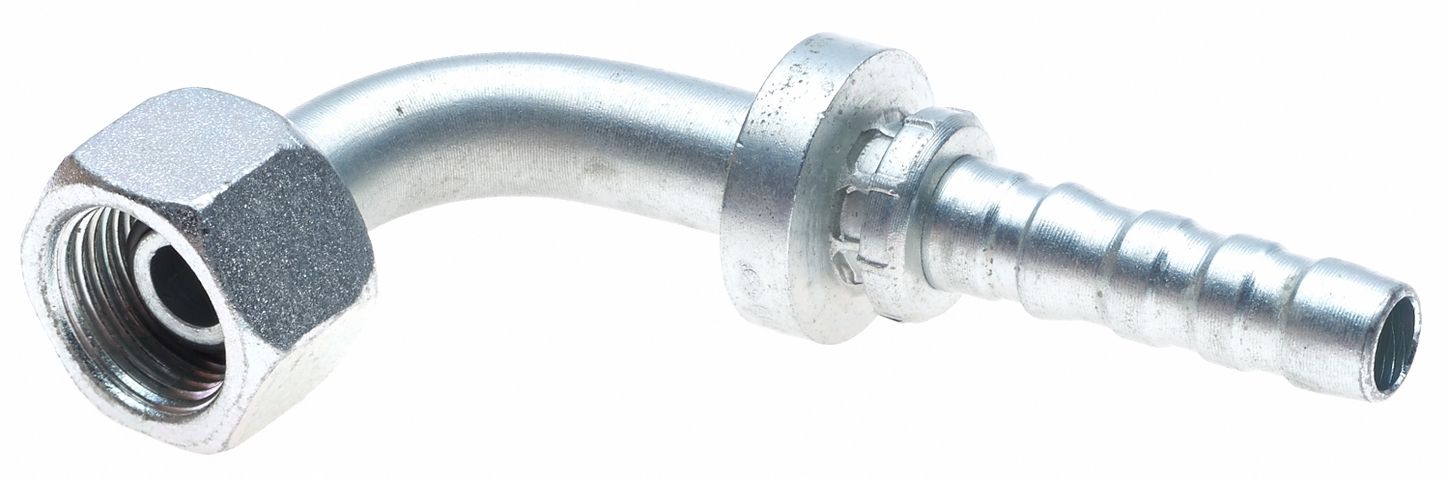

Gates G20832-0606 (6GS-6FBSPORX90) Female British Std Parallel Pipe O-Ring Swivel-90 Bent Tube (GlobalSpiral)
SKU: G20832-0606UPC/EAN: 072053571912
Female British Std Parallel Pipe O-Ring Swivel-90 Bent Tube (GlobalSpiral)
$41.04
EachUsually ships within 4-10 days
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system. S, M and L Drops and Hex per ISO Working Draft 12151-6. MGS Couplings for use with MC4-20 Crimper Only.
- “Bite-the-wire” crimp for improved coupling retention
Specifications
| SKU | G20832-0606 |
|---|---|
| UPC/EAN | 072053571912 |
| Coupling Style | GlobalSpiral Couplings |
| Swivel | Yes |
| Thread Configuration | Female British Standard Pipe with O-Ring (FBSPOR) |
| Inside Diameter | 3/8" (06) |
| Bend Angle | 90° |
| Seal Type | O-Ring |
| Thread Size | 3/8" (06) |
| Gates Code | G20 |
