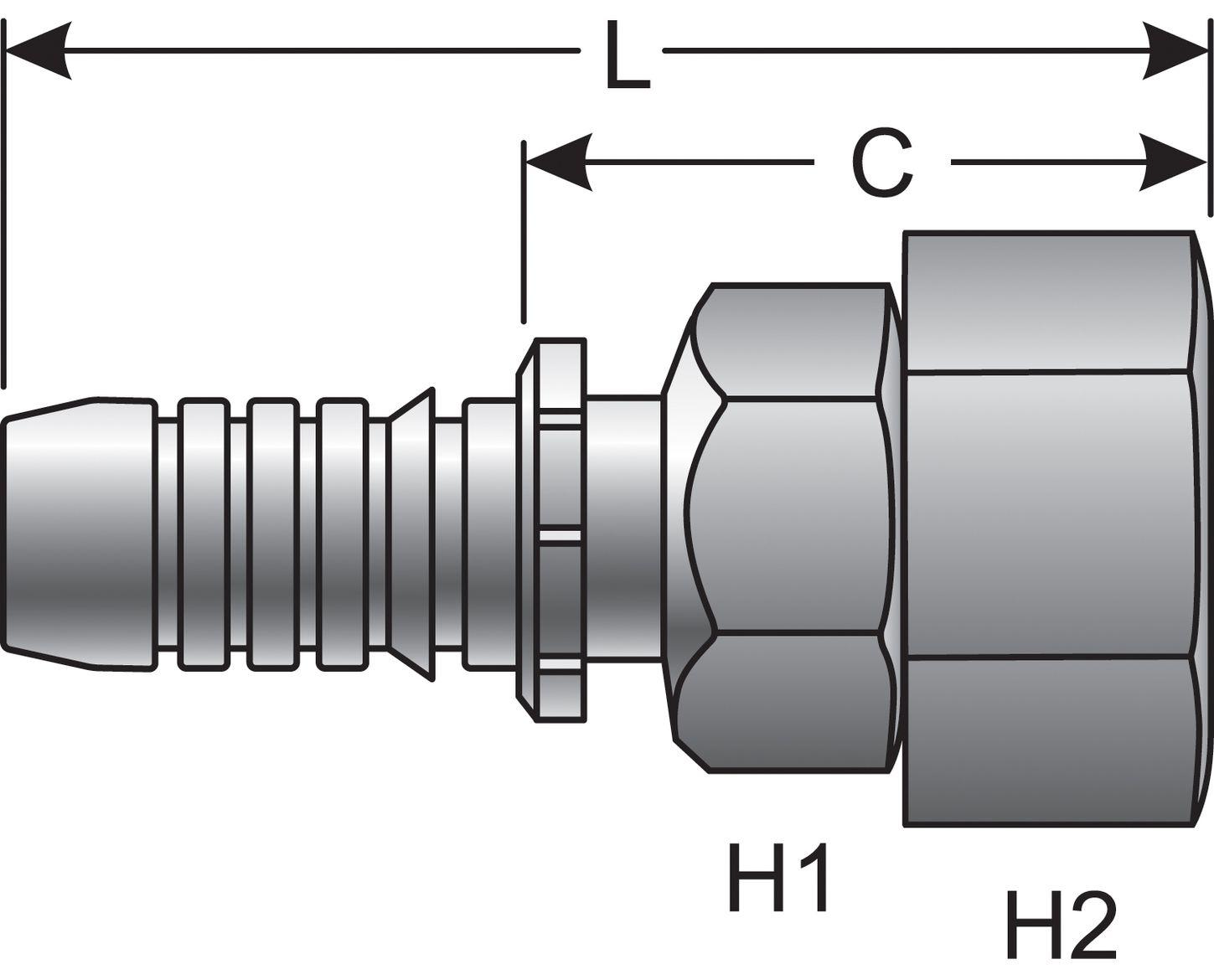

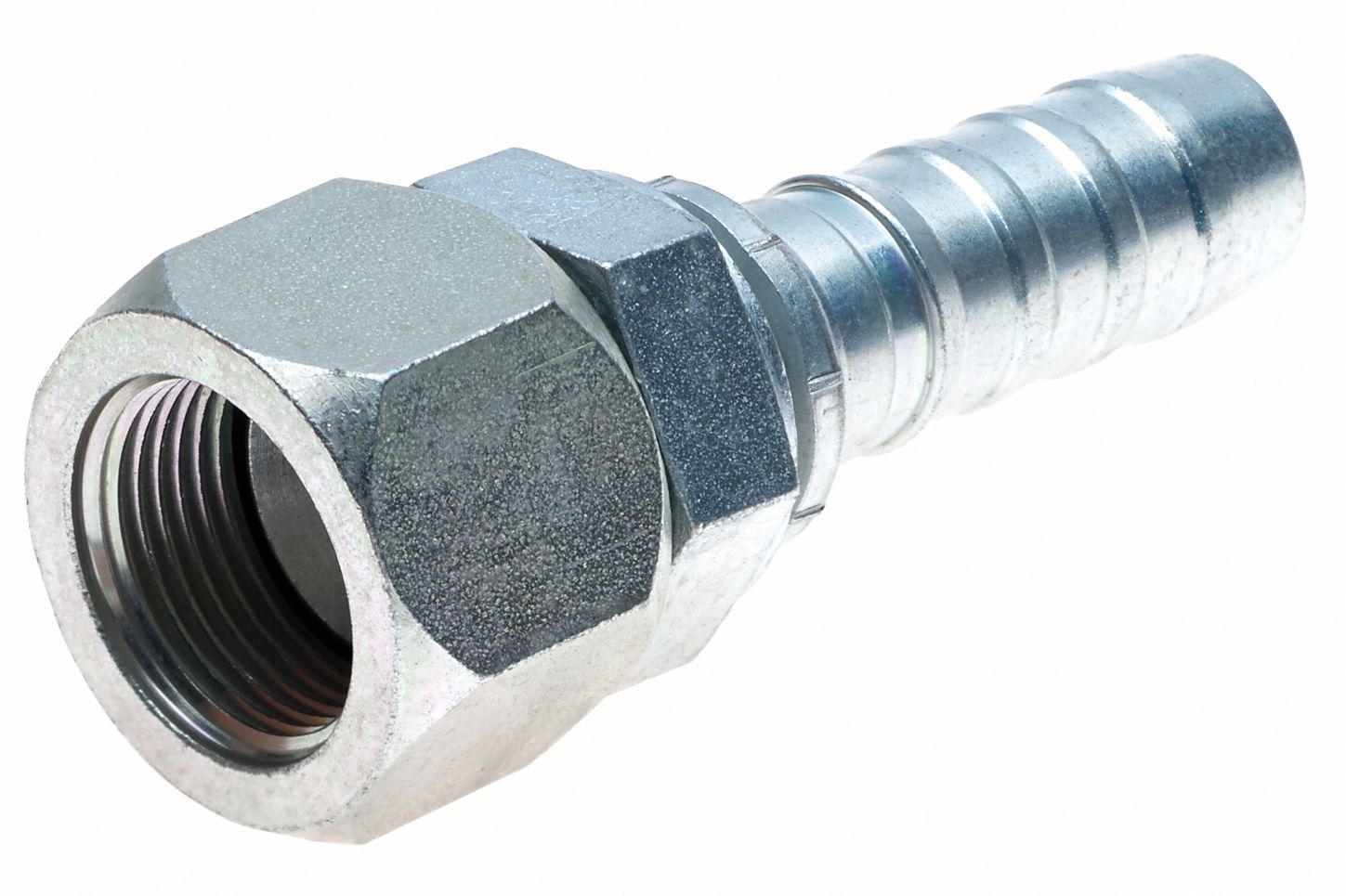

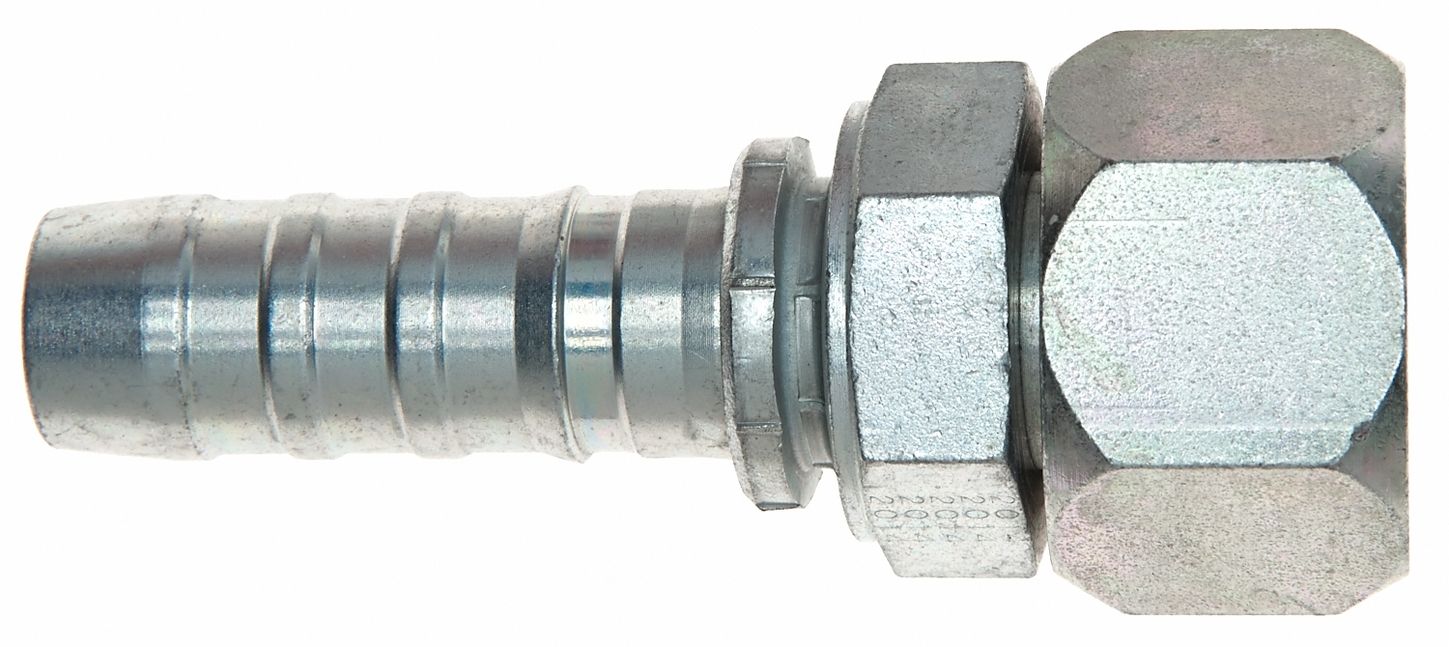

Gates G20930-1616 (16GS-16FJISX) Female Japanese Industrial Standard 30 Flare Swivel (GlobalSpiral)
SKU: G20930-1616UPC/EAN: 072053467215
Female Japanese Industrial Standard 30 Flare Swivel (GlobalSpiral)
$63.84
EachUsually ships within 4-10 days
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system.
- “Bite-the-wire” crimp for improved coupling retention
Specifications
| SKU | G20930-1616 |
|---|---|
| UPC/EAN | 072053467215 |
| Coupling Style | GlobalSpiral Couplings |
| Swivel | Yes |
| Thread Configuration | Female Japanese Industrial Standard (FJIS) |
| Inside Diameter | 1" (16) |
| Bend Angle | Straight |
| Seal Type | Mated Angle |
| Thread Size | 1" (16) |
| Gates Code | G20 |
You may also like
Gates G20930-2020 Female Japanese Industrial Standard 30 Flare Swivel (GlobalSpiral)
$116.93Each
Gates G20930-1212 (12GS-12FJISX) Female Japanese Industrial Standard 30 Flare Swivel (GlobalSpiral)
$46.73Each
Gates G20140-1616 (16GS-16FMX) Female MegaSeal Swivel (GlobalSpiral)
$30.54Each
Gates G20910-1616 (16GS-16FKX) Female Komatsu Style Japanese Metric Swivel (GlobalSpiral)
$45.42Each
Gates G20180-1616 (16GS-16FJX90M) Female JIC 37 Flare Swivel - 90 Bent Tube (GlobalSpiral)
$83.69Each
Gates G20179-1616 (16GS-16FJX90S) Female JIC 37 Flare Swivel - 90 Bent Tube (GlobalSpiral)
$79.92Each
Gates G20174-1616 (16GS-16FJX45S) Female JIC 37 Flare Swivel - 45 Bent Tube (GlobalSpiral)
$81.84Each

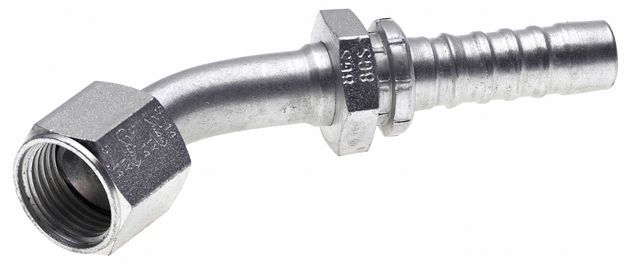

Gates G20175-1616 (16GS-16FJX45M) Female JIC 37 Flare Swivel - 45 Bent Tube (GlobalSpiral)
$86.90Each
Gates G20830-1616 (16GS-16FBSPORX) Female British Standard Parallel Pipe O-Ring Swivel (GlobalSpiral)
$43.41Each

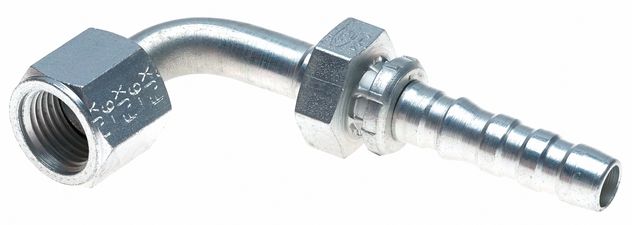

Gates G20181-1616 (16GS-16FJX90L) Female JIC 37 Flare Swivel - 90 Bent Tube (GlobalSpiral)
