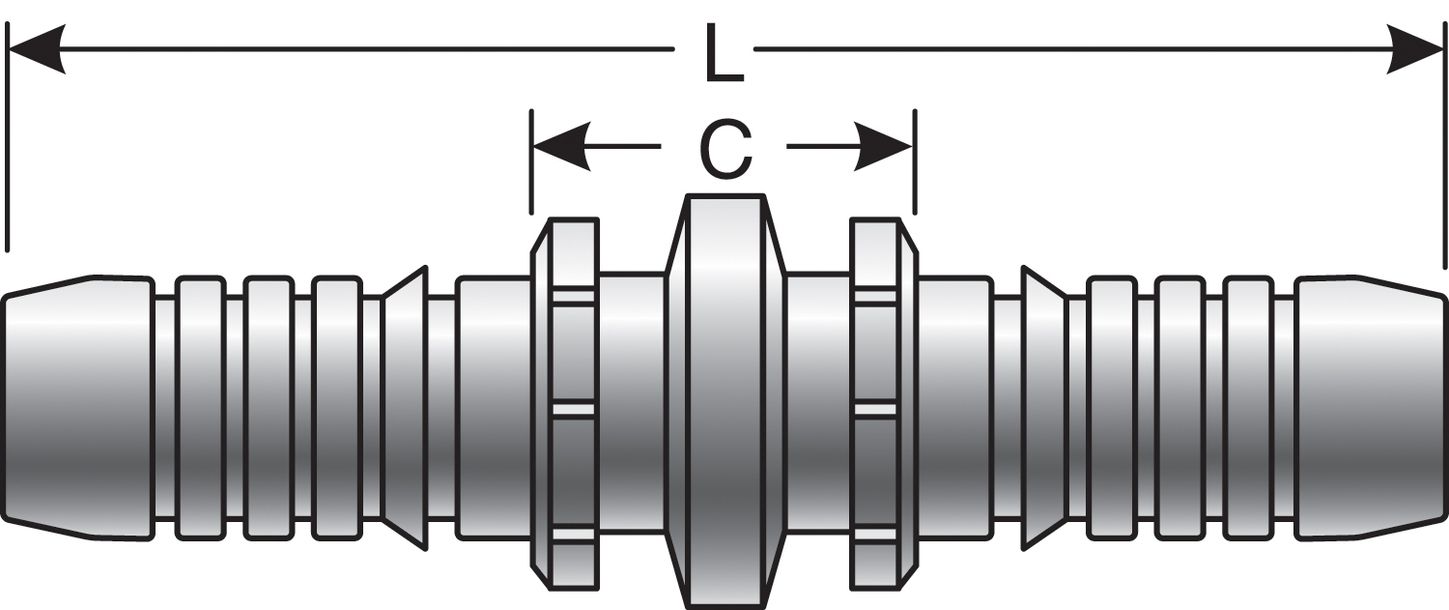

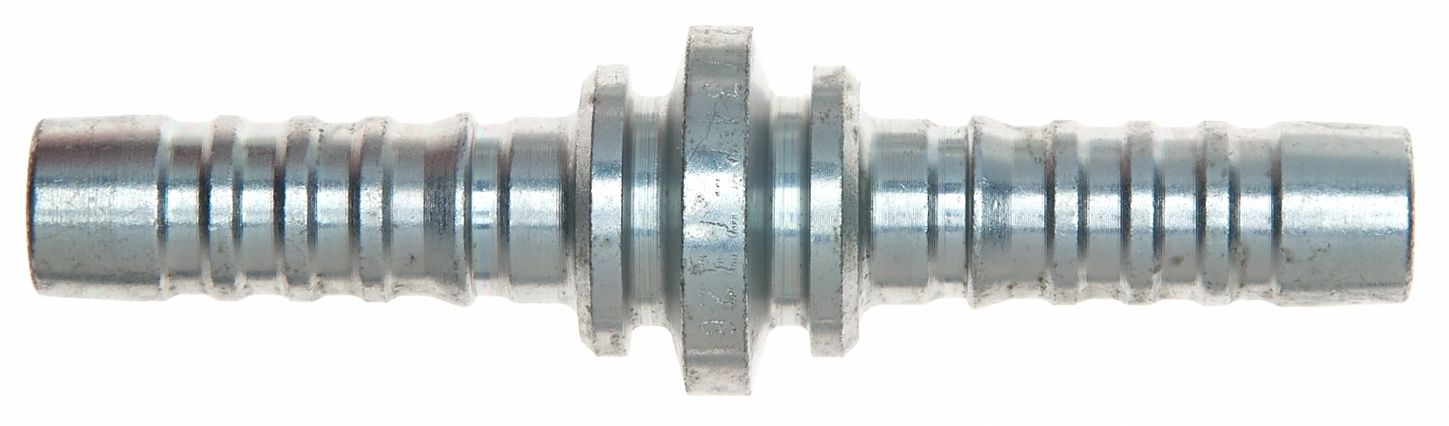

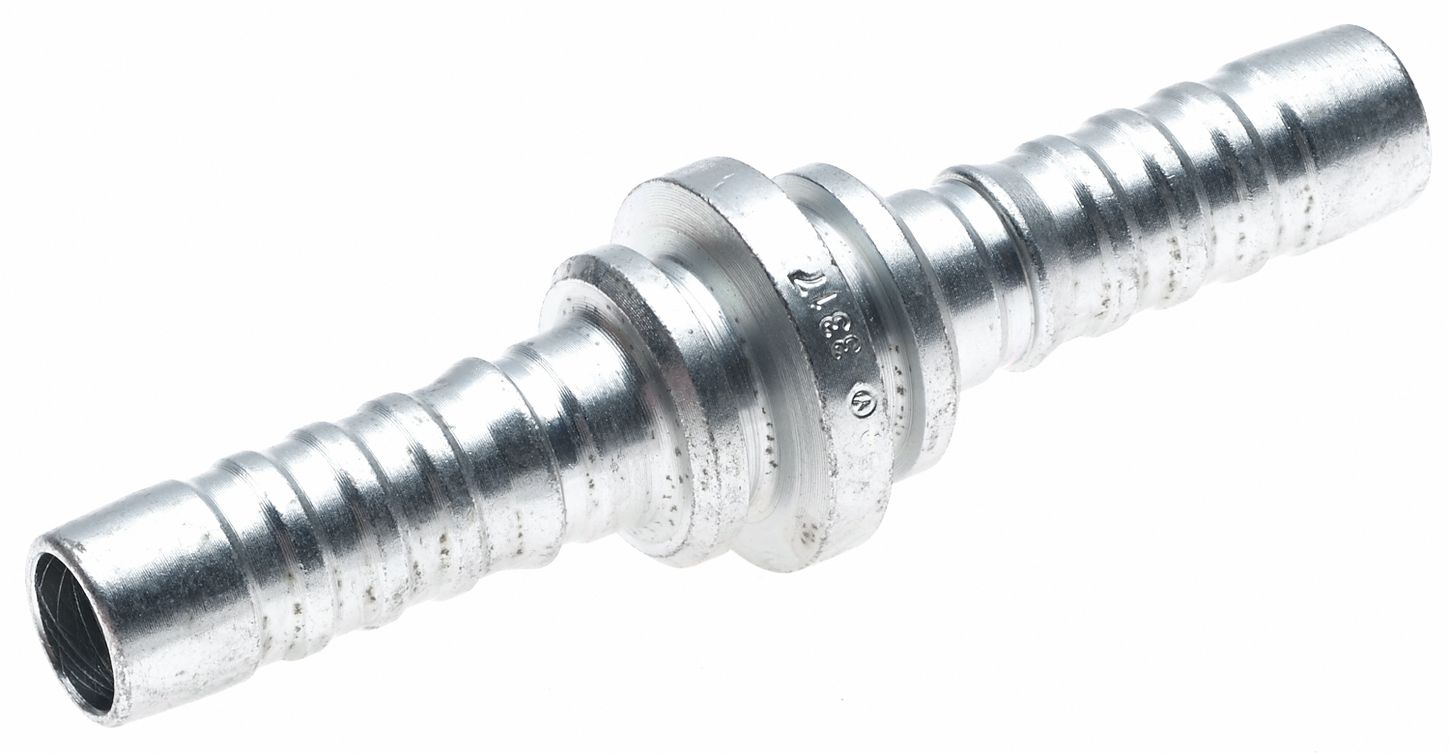

Gates G20535-1212 (12GS-12HLE) Hose Length Extender (GlobalSpiral)
SKU: G20535-1212UPC/EAN: 072053699784
Hose Length Extender (GlobalSpiral)
$48.33
EachUsually ships within 4-10 days
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system.
- “Bite-the-wire” crimp for improved coupling retention
Specifications
| SKU | G20535-1212 |
|---|---|
| UPC/EAN | 072053699784 |
| Coupling Style | GlobalSpiral Couplings |
| Swivel | No |
| Thread Configuration | Hose Length Extender (HLE) |
| Inside Diameter | 3/4" (12) |
| Bend Angle | Straight |
| Thread Size | 3/4" (12) |
| Gates Code | G20 |
You may also like
Gates G20534-1212 (12GS-12HLEC) Hose Length Extender Caterpillar (GlobalSpiral)
$47.13Each

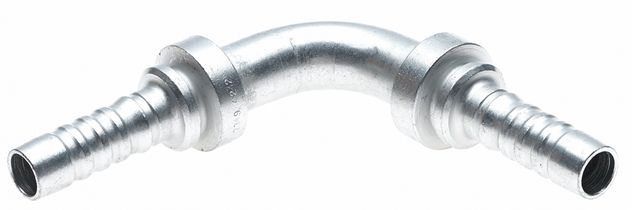

Gates G20537-1212 (12GS-12HLE90-112) Hose Length Extender - 90 Bent Tube (GlobalSpiral)
$77.83Each
Gates G20534-1616 (16GS-16HLEC) Hose Length Extender Caterpillar (GlobalSpiral)
$81.12Each
Gates G22535-3232 (32GSP-32HLE) Hose Length Extender (GlobalSpiral Plus)
$187.73Each
Gates G20537-1616 (16GS-16HLE90-127) Hose Length Extender - 90 Bent Tube (GlobalSpiral)
$74.46Each

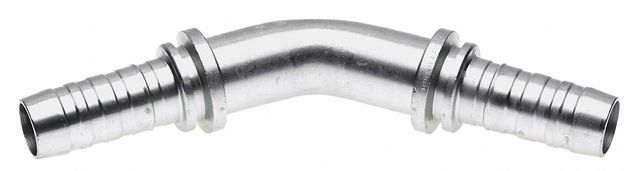

Gates G20536-2020 (20GS-20HLE45-103) Hose Length Extender - 45 Bent Tube (GlobalSpiral)
