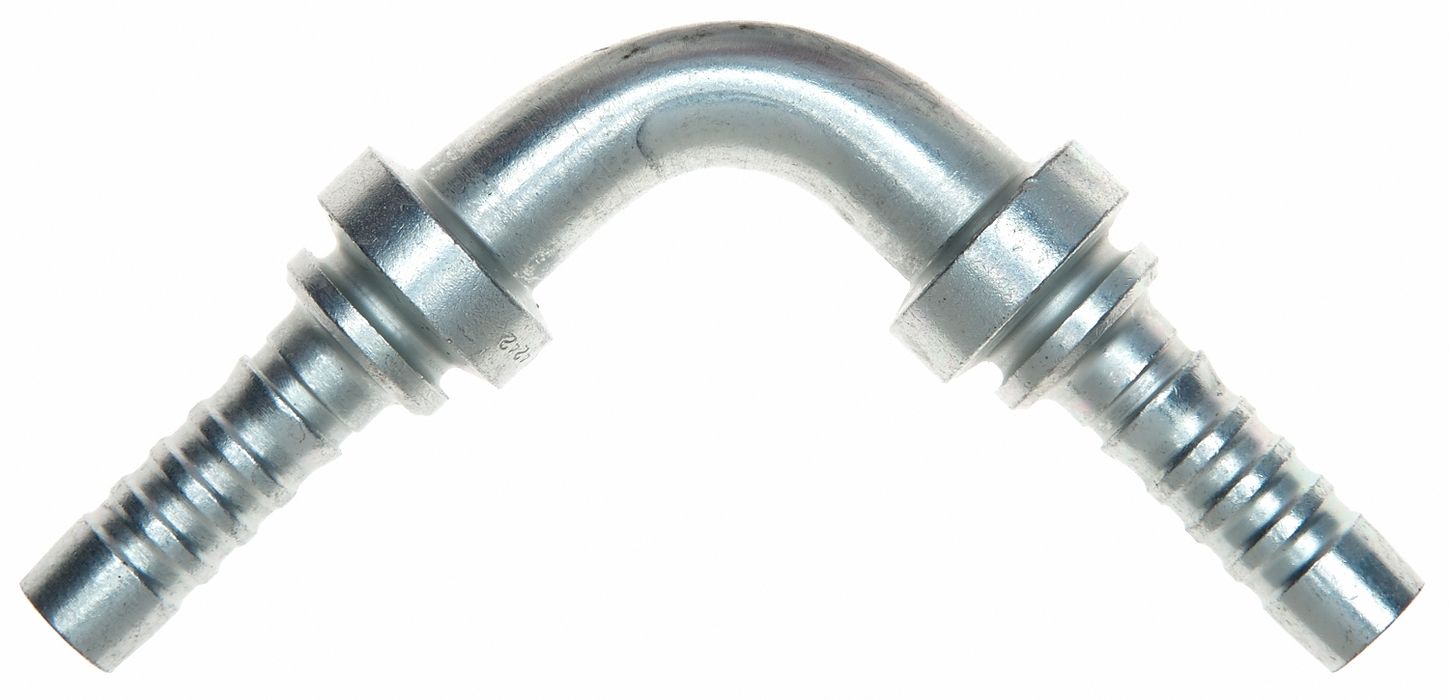

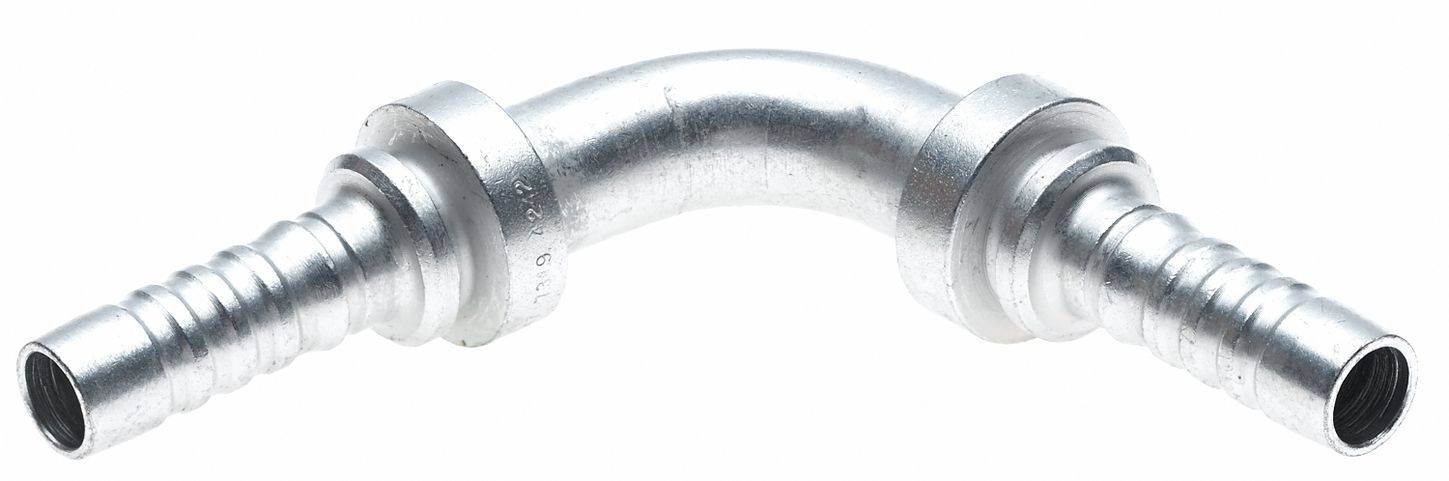

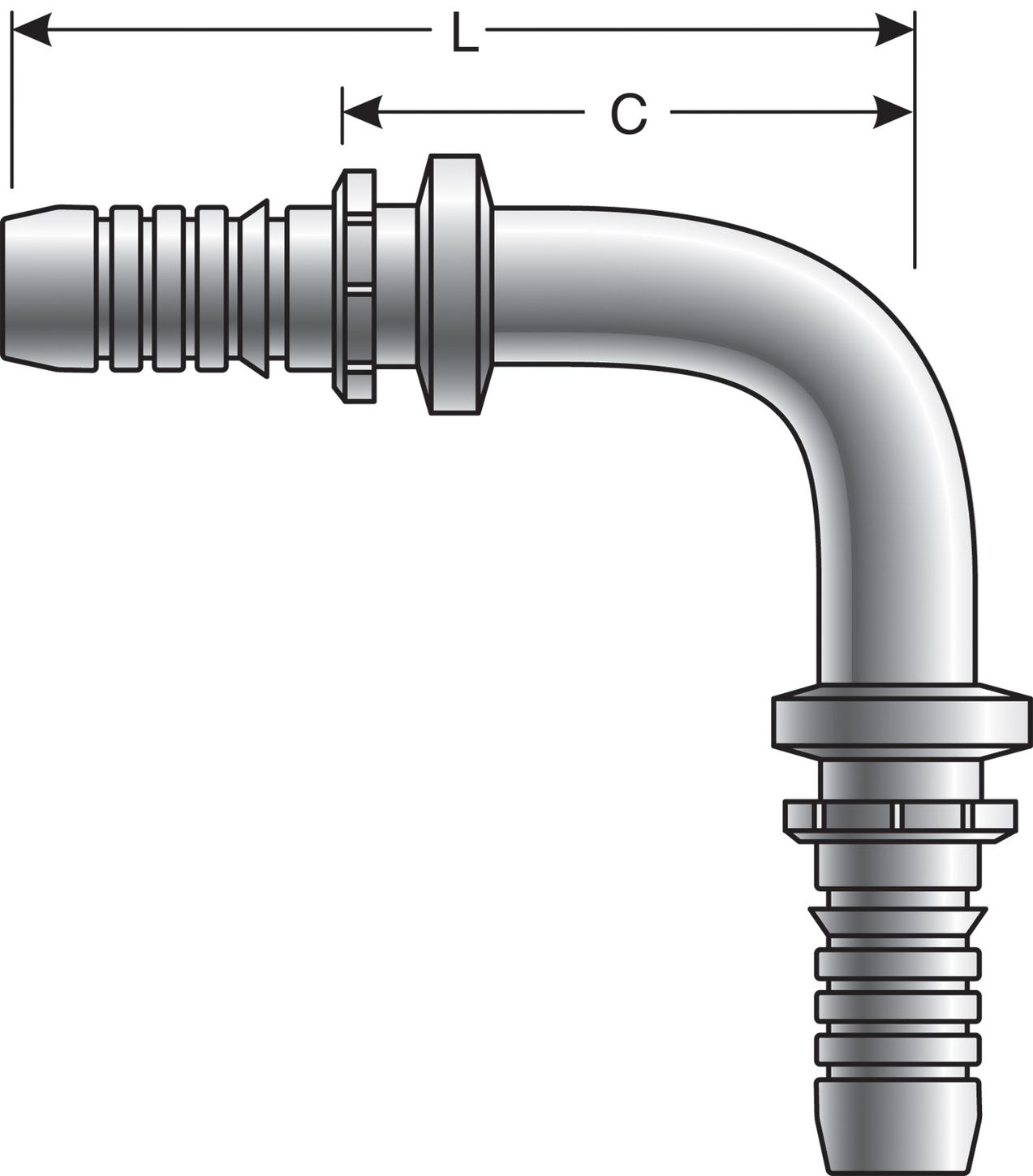

Gates G20537-2020 (20GS-20HLE90-155) Hose Length Extender - 90 Bent Tube (GlobalSpiral)
SKU: G20537-2020UPC/EAN: 072053673593
Hose Length Extender - 90 Bent Tube (GlobalSpiral)
$147.78
EachUsually ships within 4-10 days
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system.
- “Bite-the-wire” crimp for improved coupling retention
Specifications
| SKU | G20537-2020 |
|---|---|
| UPC/EAN | 072053673593 |
| Coupling Style | GlobalSpiral Couplings |
| Swivel | No |
| Thread Configuration | Hose Length Extender (HLE) |
| Inside Diameter | 1 1/4" (20) |
| Bend Angle | 90° |
| Thread Size | 1 1/4" (20) |
| Gates Code | G20 |
