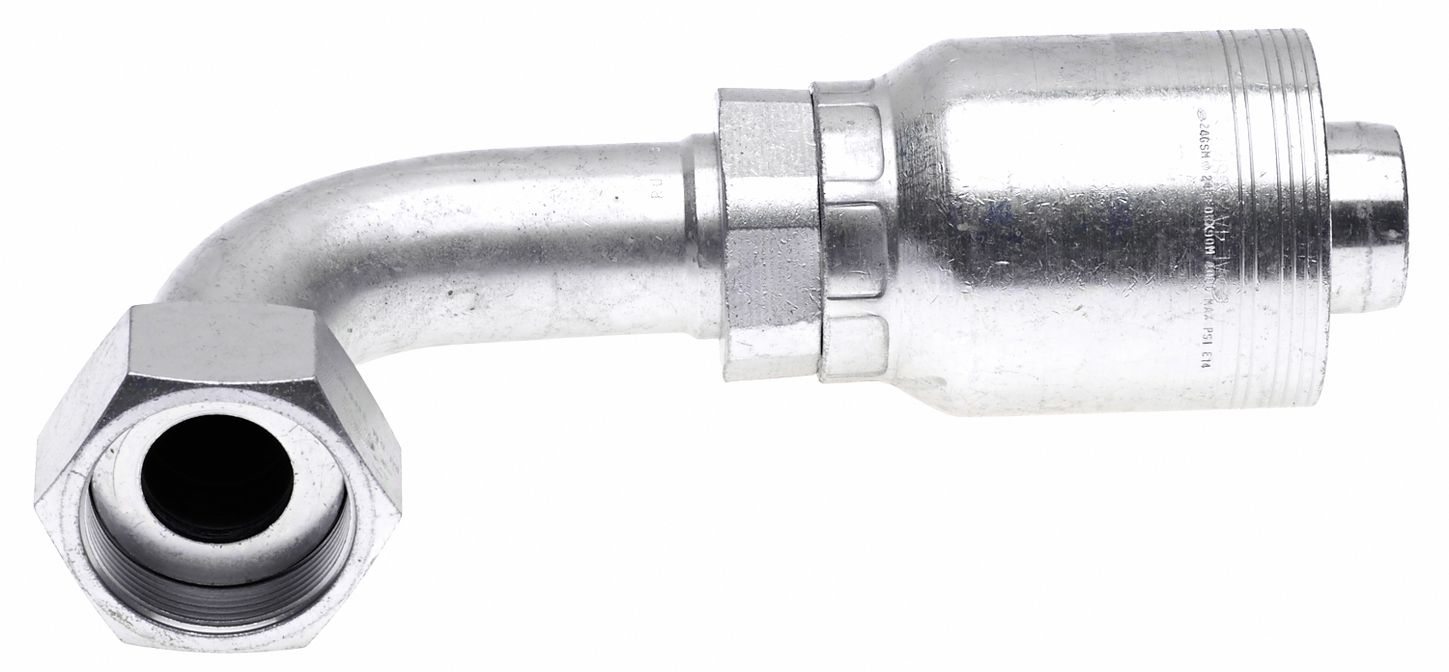

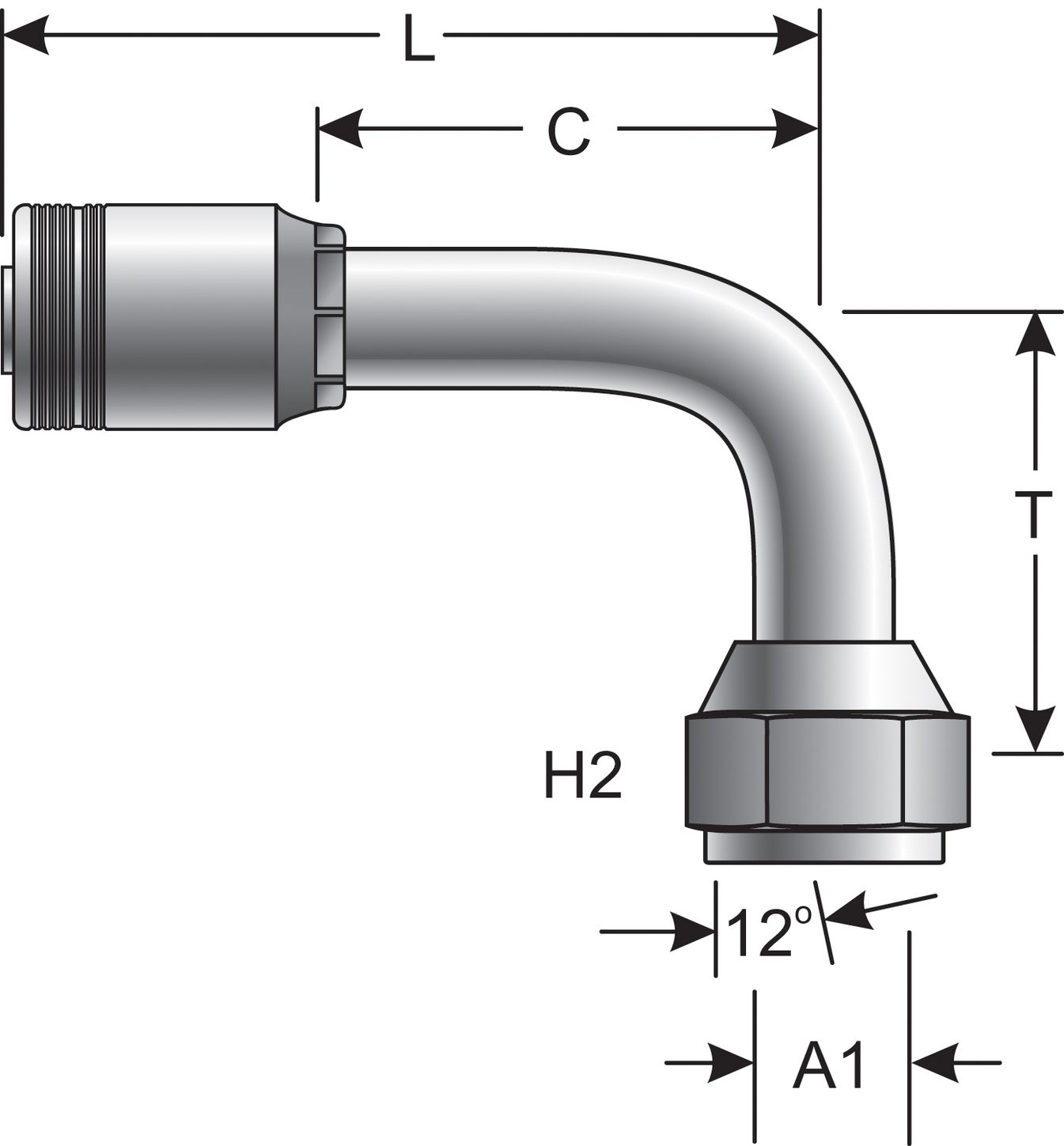

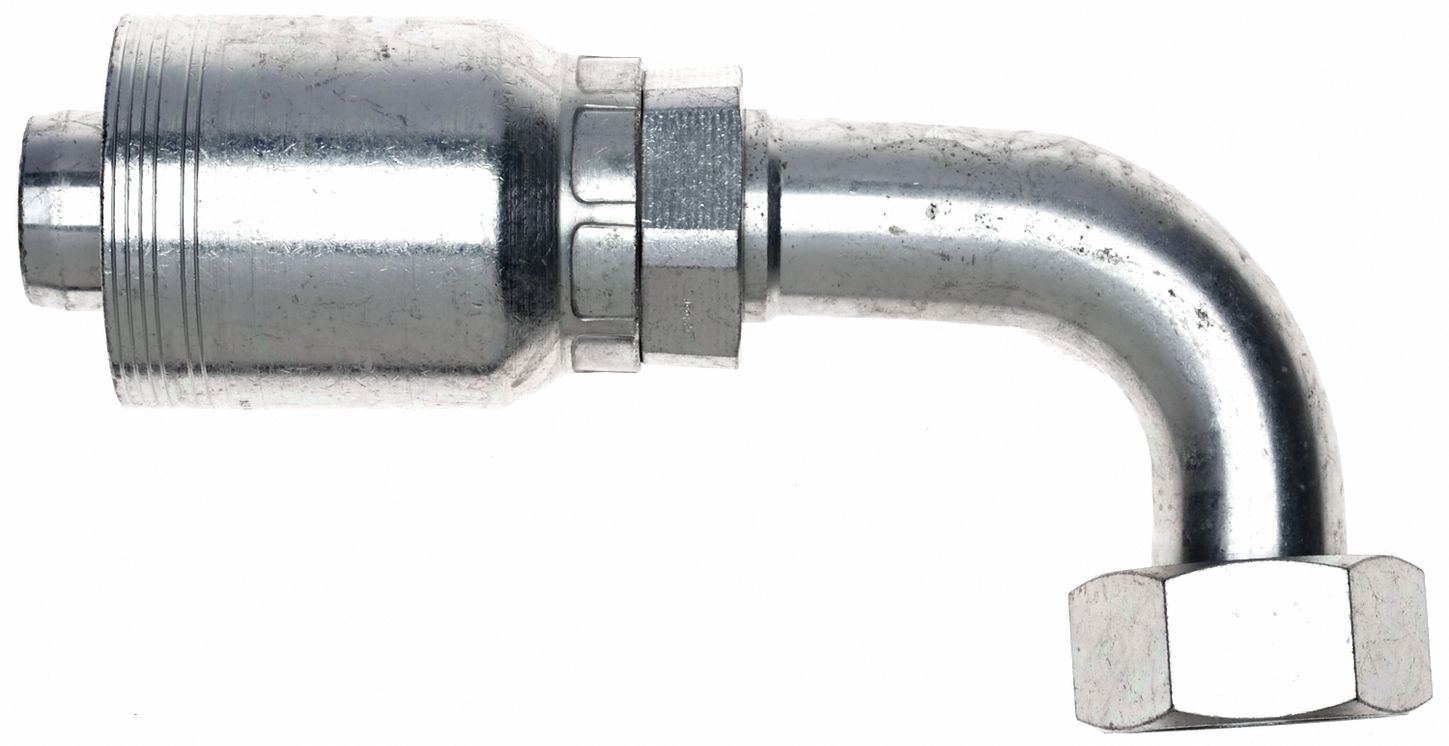

Gates G24730-2438 (24GSM-38FDHORX90) Female DIN 24 Cone Swivel - Heavy Series with O-Ring - 90 Bent Tube
SKU: G24730-2438UPC/EAN: 770075419891
Female DIN 24 Cone Swivel - Heavy Series with O-Ring - 90 Bent Tube
$392.24
EachUsually ships within 4-10 days
Product Details
As mobile equipment platforms become more compact and powerful, they require larger diameter hydraulic hose with higher working pressures to meet performance demands. Large equipment used in industries like mining, oil and gas, and construction are pushing current hose size and pressure limits. To meet this demand, Gates introduces an industry first: the 32GSM no-skive coupling.
- Greater power and capacity from existing equipment by replacing 2 in., 5000 psi hose assemblies
Specifications
| SKU | G24730-2438 |
|---|---|
| UPC/EAN | 770075419891 |
| Coupling Style | GlobalSpiral Max Pressure Couplings |
| Swivel | Yes |
| Thread Configuration | Female DIN Cone with O-Ring (FDOR) |
| Inside Diameter | 1 1/2" (24) |
| Bend Angle | 90° |
| Seal Type | Mated Angle with O-Ring |
| Thread Size | 2 1/16" (33) |
| Gates Code | G24 |
You may also like
Gates G24725-2438 (24GSM-38FDHORX45) Female DIN 24 Cone Swivel - Heavy Series with O-Ring - 45 Bent Tube
$382.33Each

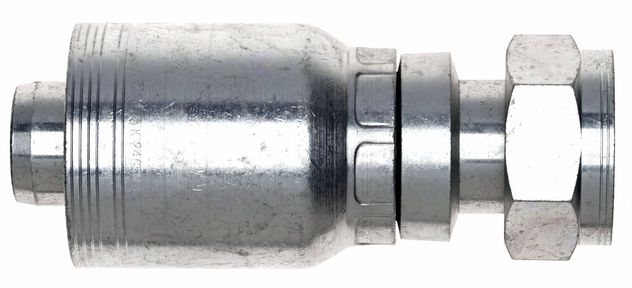

Gates G24720-2438 (24GSM-38FDHORX) Female DIN 24 Cone Swivel - Heavy Series with O-Ring (GlobalSpiral MAX Pressure)
$283.84Each
Gates G24832-2424 (24GSM-24FBSPORX90) Female British Standard Parallel Pipe O-Ring Swivel - 90 Bent Tube
$448.11Each
Gates G24831-2424 (24GSM-24FBSPORX45) Female British Standard Parallel Pipe O-Ring Swivel - 45 Bent Tube
$422.51Each
Gates G24365-2432 (24GSM-32FLH90S) Code 62 O-Ring Flange Heavy - 90 Bent Tube (GlobalSpiral MAX Pressure)
$209.27Each
Gates G24365-2424 (24GSM-24FLH90-094) Code 62 O-Ring Flange Heavy - 90 Bent Tube (GlobalSpiral MAX Pressure)
$183.18EachGates G24366-2424 (24GSM-24FLH90-150) Code 62 O-Ring Flange Heavy - 90 Bent Tube (GlobalSpiral MAX Pressure)
$283.48Each
Gates G24180-2424 (24GSM-24FJX90M) Female JIC 37 Flare Swivel - 90 Bent Tube (GlobalSpiral MAX Pressure)
$177.95Each
Gates G23832-3232 (32GSM-32FBSPORX90) Female British Standard Parallel Pipe O-Ring Swivel - 90 Bent Tube
$512.75Each
Gates G24415-2424 (24GSM-24FLC90-087) Caterpillar Style O-Ring Flange - 90 Bent Tube (GlobalSpiral MAX Pressure)
$160.69Each
Gates G24354-2424 (24GSM-24FLH30M) Code 62 O-Ring Flange Heavy - 30 Bent Tube (GlobalSpiral MAX Pressure)
$171.52Each

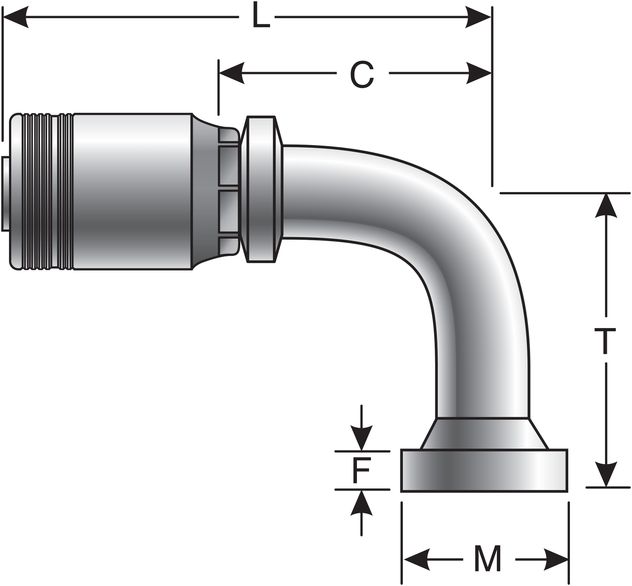

Gates G24415-2432 (24GSM-32FLC90-140) Caterpillar Style O-Ring Flange - 90 Bent Tube (GlobalSpiral MAX Pressure)
