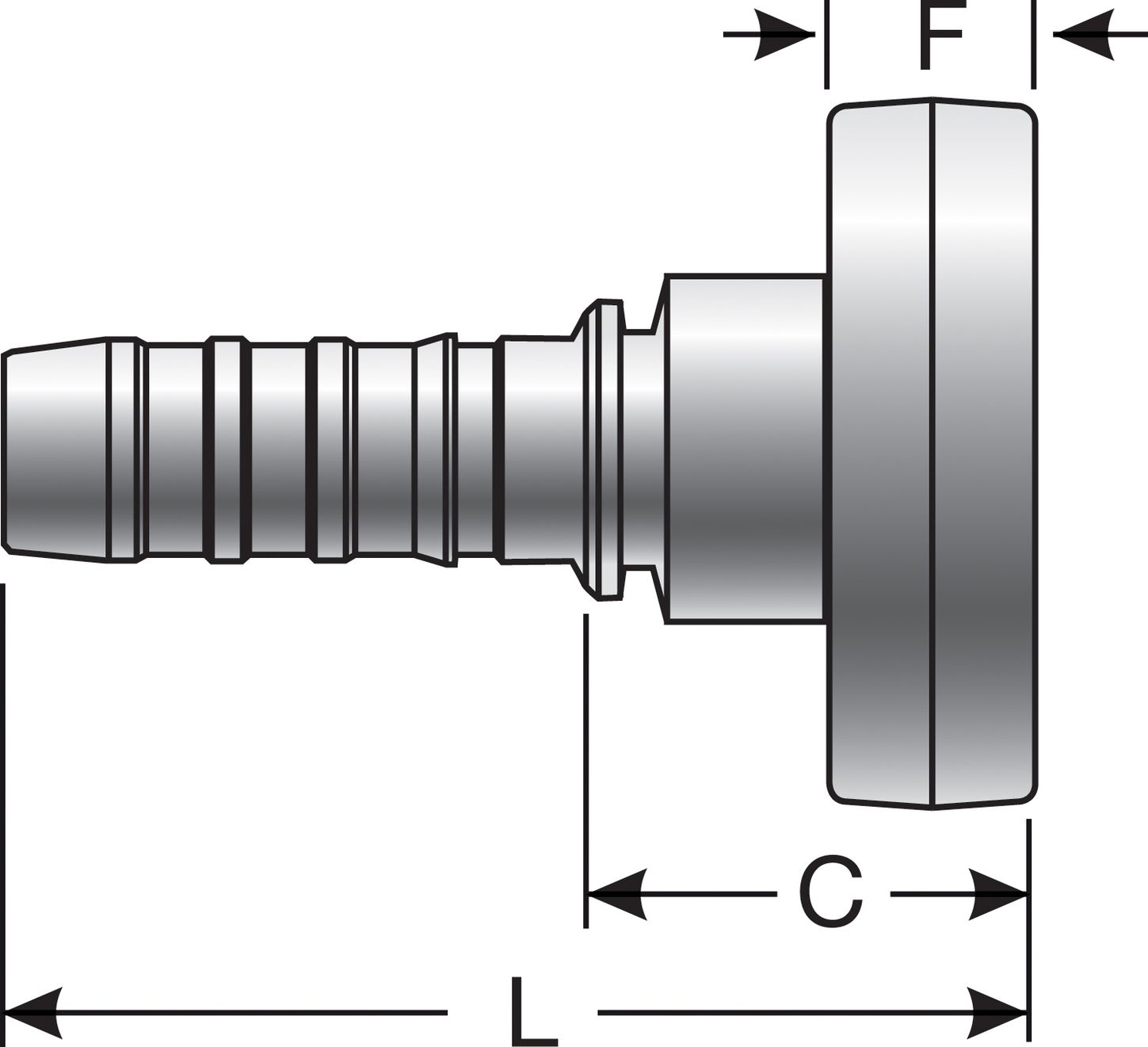

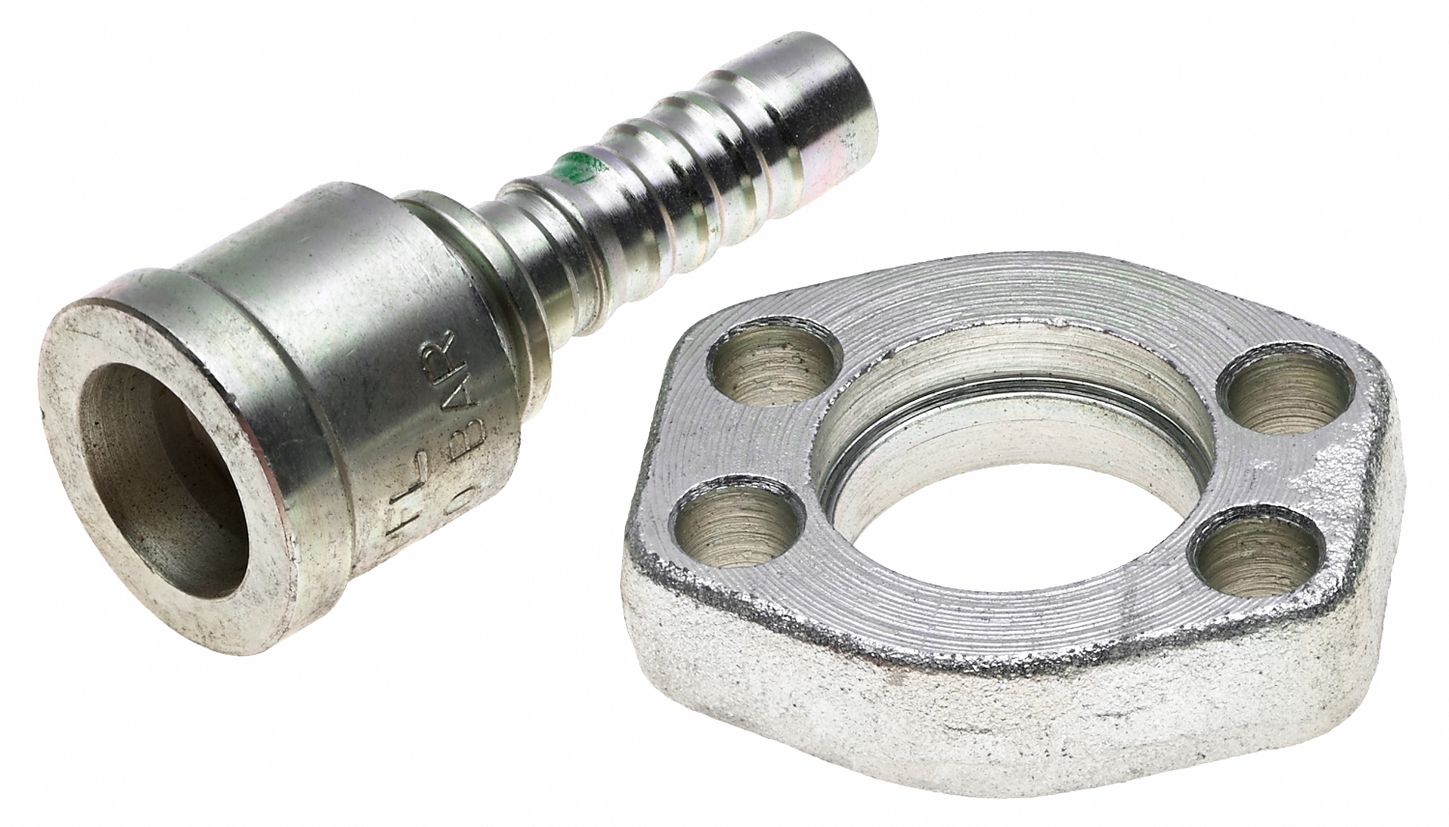

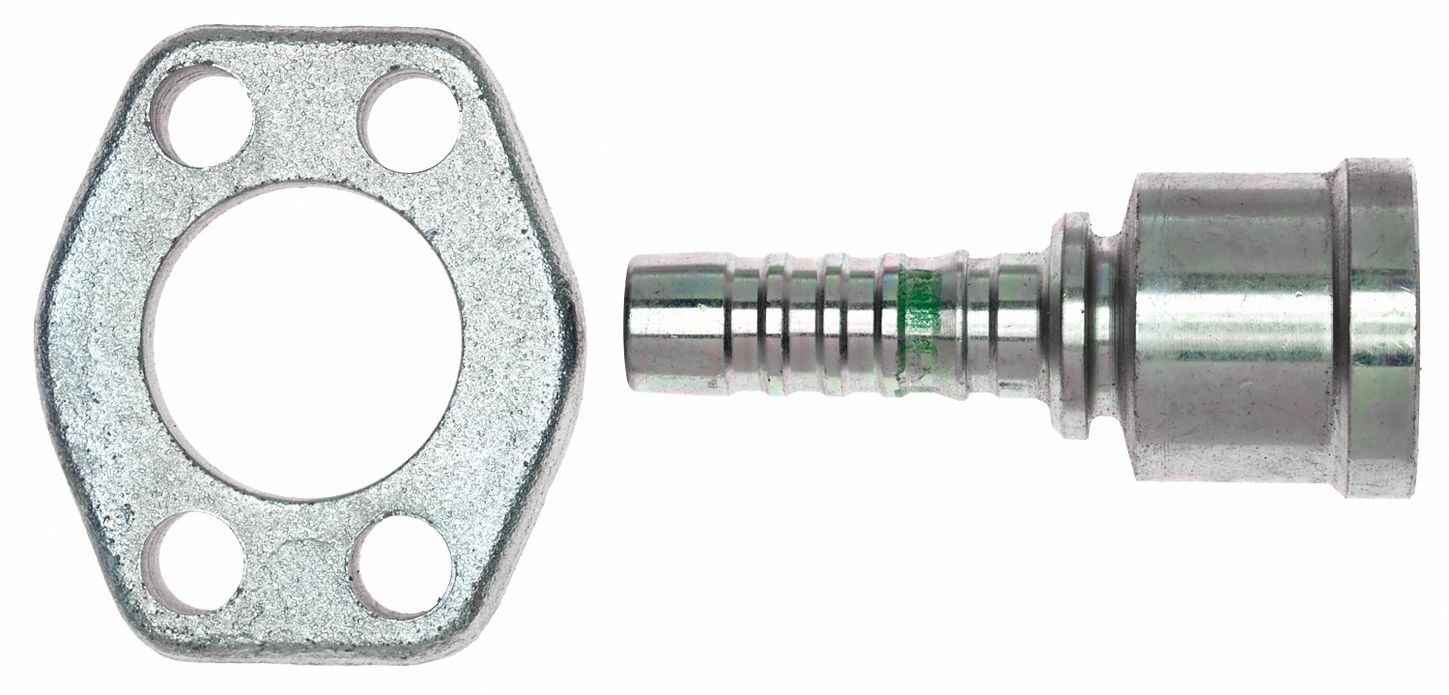

Gates G20420-1021 (10GS-21FPFL) Female French GAZ (Poclain) 24 High Pressure Flange (GlobalSpiral)

SKU: G20420-1021UPC/EAN: 072053902938

Female French GAZ (Poclain) 24 High Pressure Flange (GlobalSpiral)

$73.55
Each
Usually ships within 4-10 days
remove
add

Product Details

GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system.

  • “Bite-the-wire” crimp for improved coupling retention

Specifications

SKUG20420-1021
UPC/EAN072053902938
Coupling StyleGlobalSpiral Couplings
SwivelNo
Thread ConfigurationFemale Pipe (FP)
Inside Diameter5/8" (10)
Bend AngleStraight
Thread Size1 5/16" (21)
Gates CodeG20
