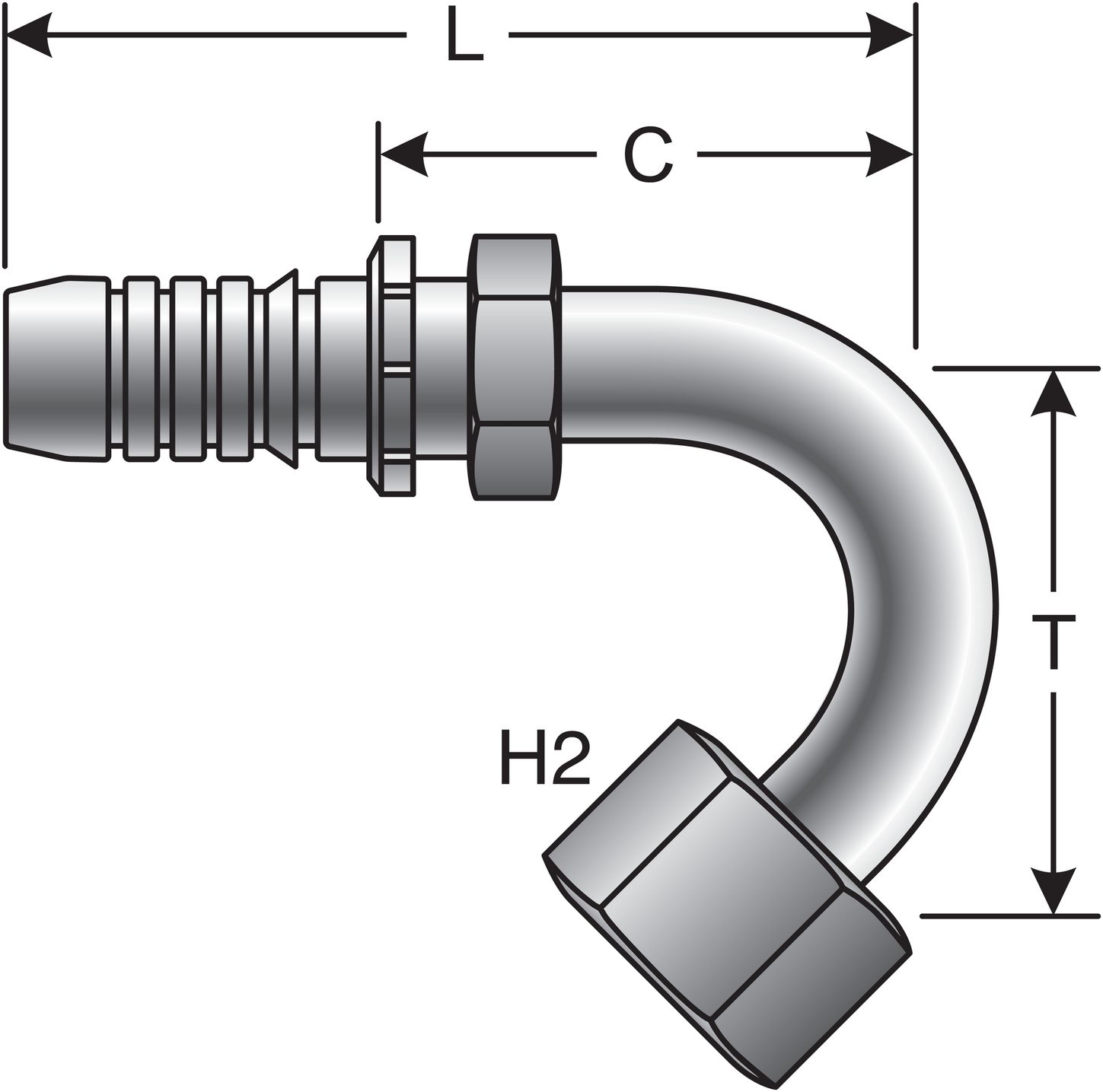

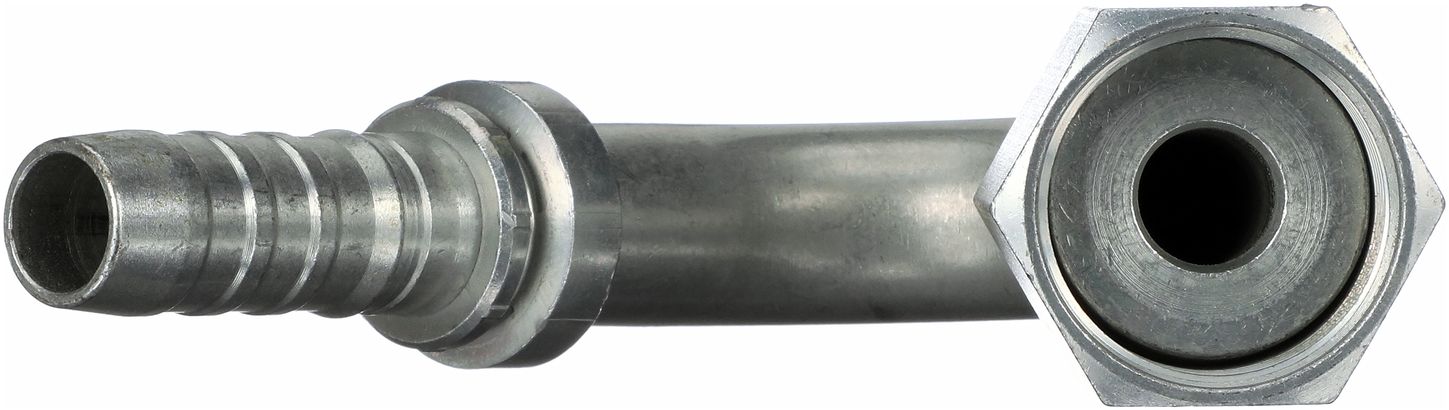

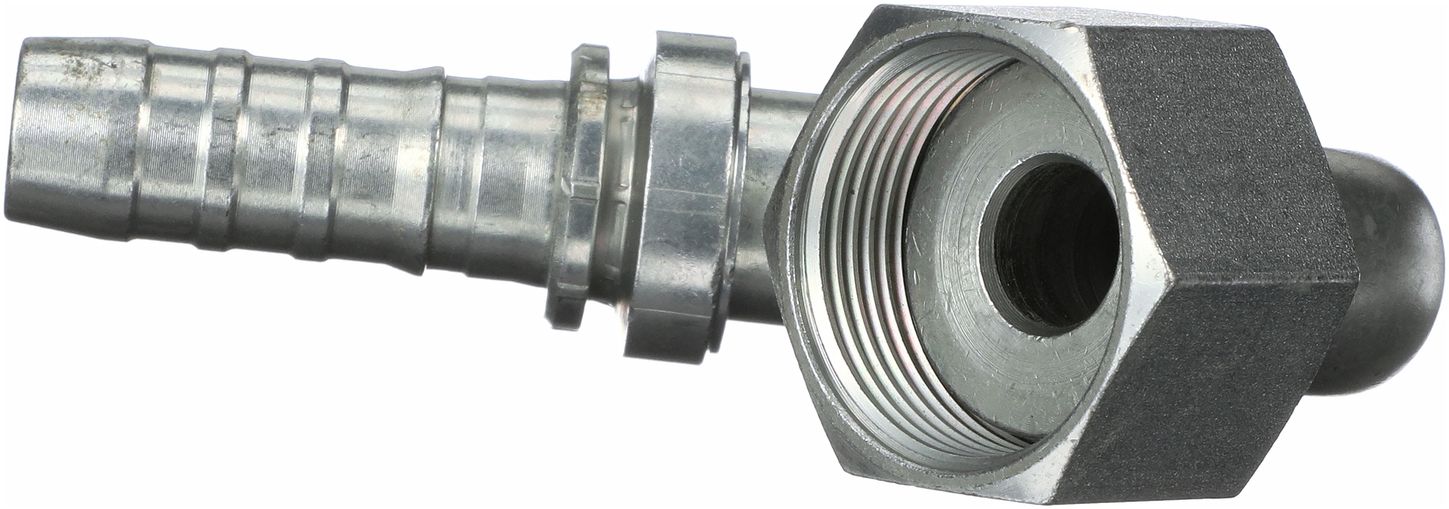

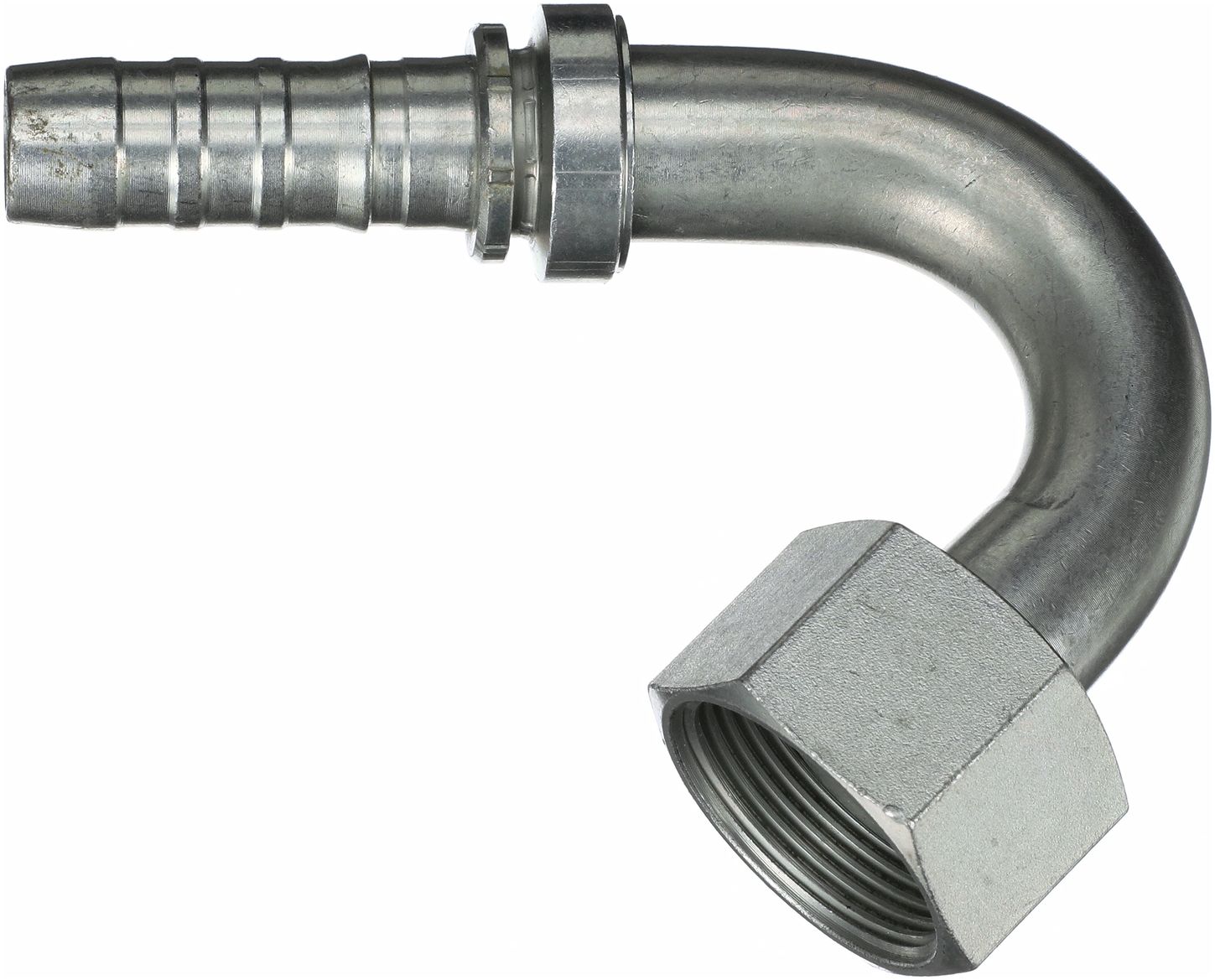

Gates G20248-1216 (12GS-16FFORX135) Female Flat-Face O-Ring Swivel - 135 Bent Tube (GlobalSpiral)
SKU: G20248-1216UPC/EAN: 072053530384
Female Flat-Face O-Ring Swivel - 135 Bent Tube (GlobalSpiral)
$122.52
EachUsually ships within 4-10 days
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system. Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal. MGS Couplings for use with MC4-20 Crimper Only.
- “Bite-the-wire” crimp for improved coupling retention
Specifications
| SKU | G20248-1216 |
|---|---|
| UPC/EAN | 072053530384 |
| Coupling Style | GlobalSpiral Couplings |
| Swivel | Yes |
| Thread Configuration | Female Flat-Face O-Ring (FFOR) |
| Inside Diameter | 3/4" (12) |
| Bend Angle | 135° |
| Seal Type | O-Ring |
| Thread Size | 1 7/16" (23) |
| Gates Code | G20 |
You may also like
Gates G20240-1216 (12GS-16FFORX90M) Female Flat-Face O-Ring Swivel - 90 Bent Tube (GlobalSpiral)
$91.56Each
Gates G20239-1216 (12GS-16FFORX90S) Female Flat-Face O-Ring Swivel - 90 Bent Tube (GlobalSpiral)
$88.13EachGates G20241-1216 (12GS-16FFORX90L) Female Flat-Face O-Ring Swivel - 90 Bent Tube (GlobalSpiral)
$109.61Each
Gates G20234-1216 (12GS-16FFORX45S) Female Flat-Face O-Ring Swivel - 45 Bent Tube (GlobalSpiral)
$85.10Each
Gates G20230-1216 (12GS-16FFORX) Female Flat-Face O-Ring Swivel (GlobalSpiral)
$43.57Each

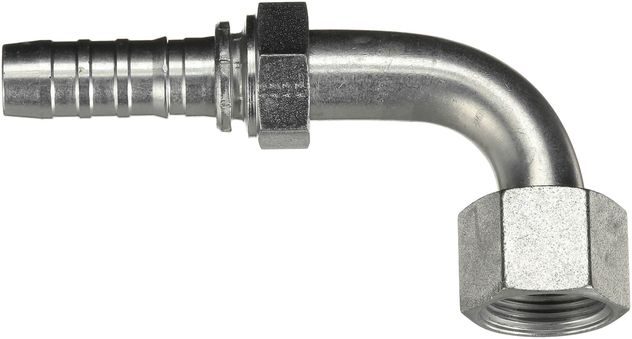

Gates G20239-1212 (12GS-12FFORX90S) 12GS-12FFORX90S Female Flat-Face O-Ring Swivel - 90 Bent Tube (GlobalSpiral)
$78.70Each

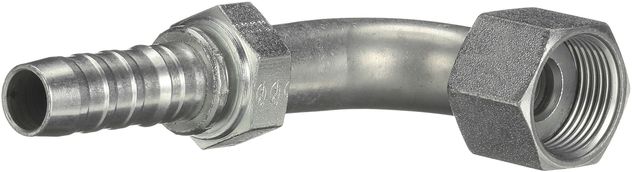

Gates G20239-1210 (12GS-10FFORX90S) Female Flat-Face O-Ring Swivel - 90 Bent Tube (GlobalSpiral)
$104.31Each
Gates G20240-1212 (12GS-12FFORX90M) Female Flat-Face O-Ring Swivel - 90 Bent Tube (GlobalSpiral)
$82.70Each
Gates G20234-1212 (12GS-12FFORX45S) Female Flat-Face O-Ring Swivel - 45 Bent Tube (GlobalSpiral)
$72.30Each
Gates G20234-1616 (16GS-16FFORX45S) Female Flat-Face O-Ring Swivel - 45 Bent Tube (GlobalSpiral)
$97.31Each
Gates G20225-1216 (12GS-16MFFOR) Male Flat-Face O-Ring (GlobalSpiral)
$35.92Each

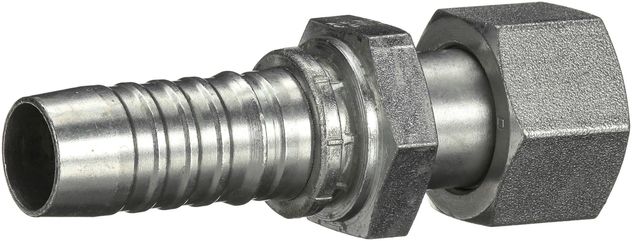

Gates G20230-1210 (12GS-10FFORX) Female Flat-Face O-Ring Swivel (GlobalSpiral)
