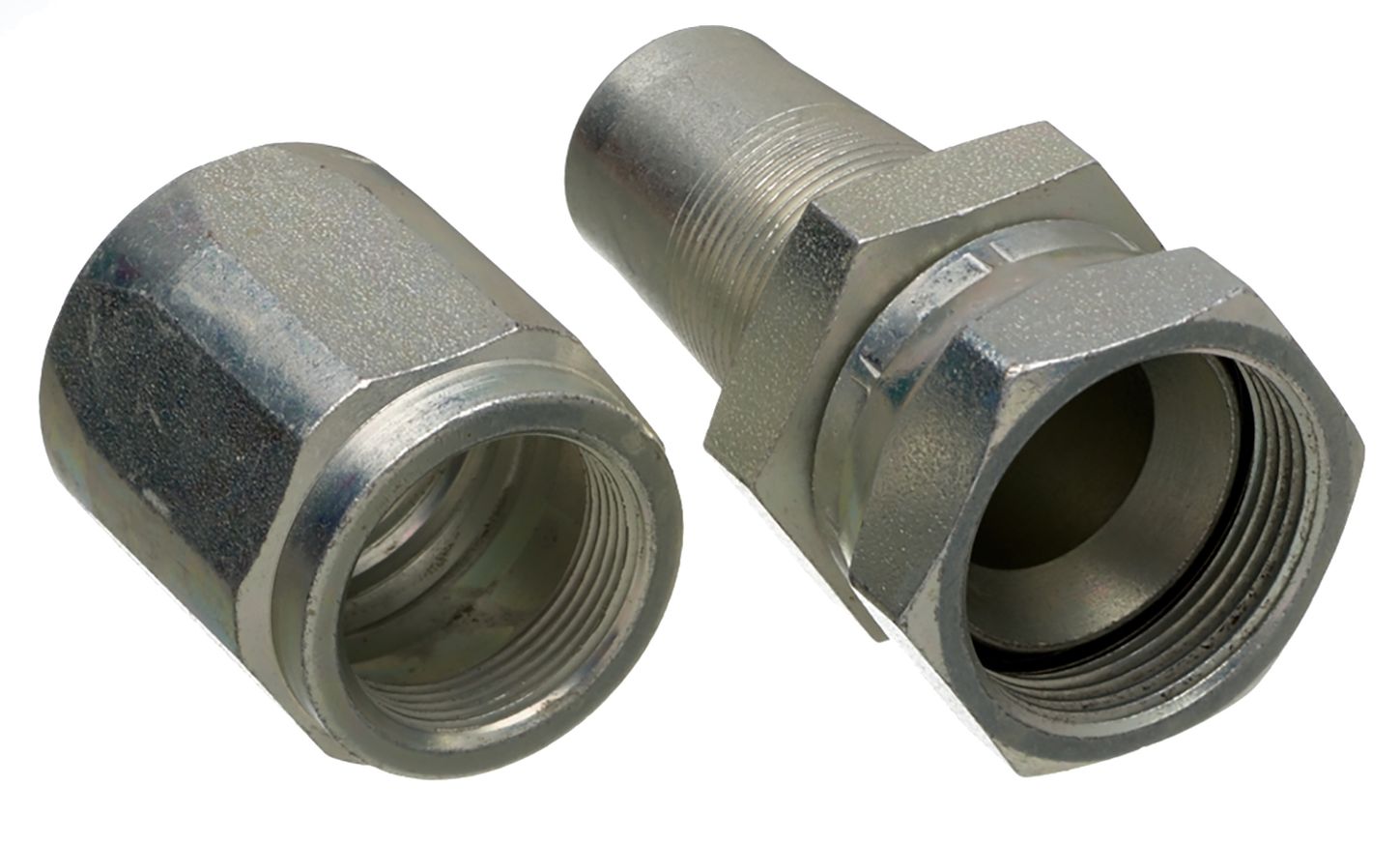

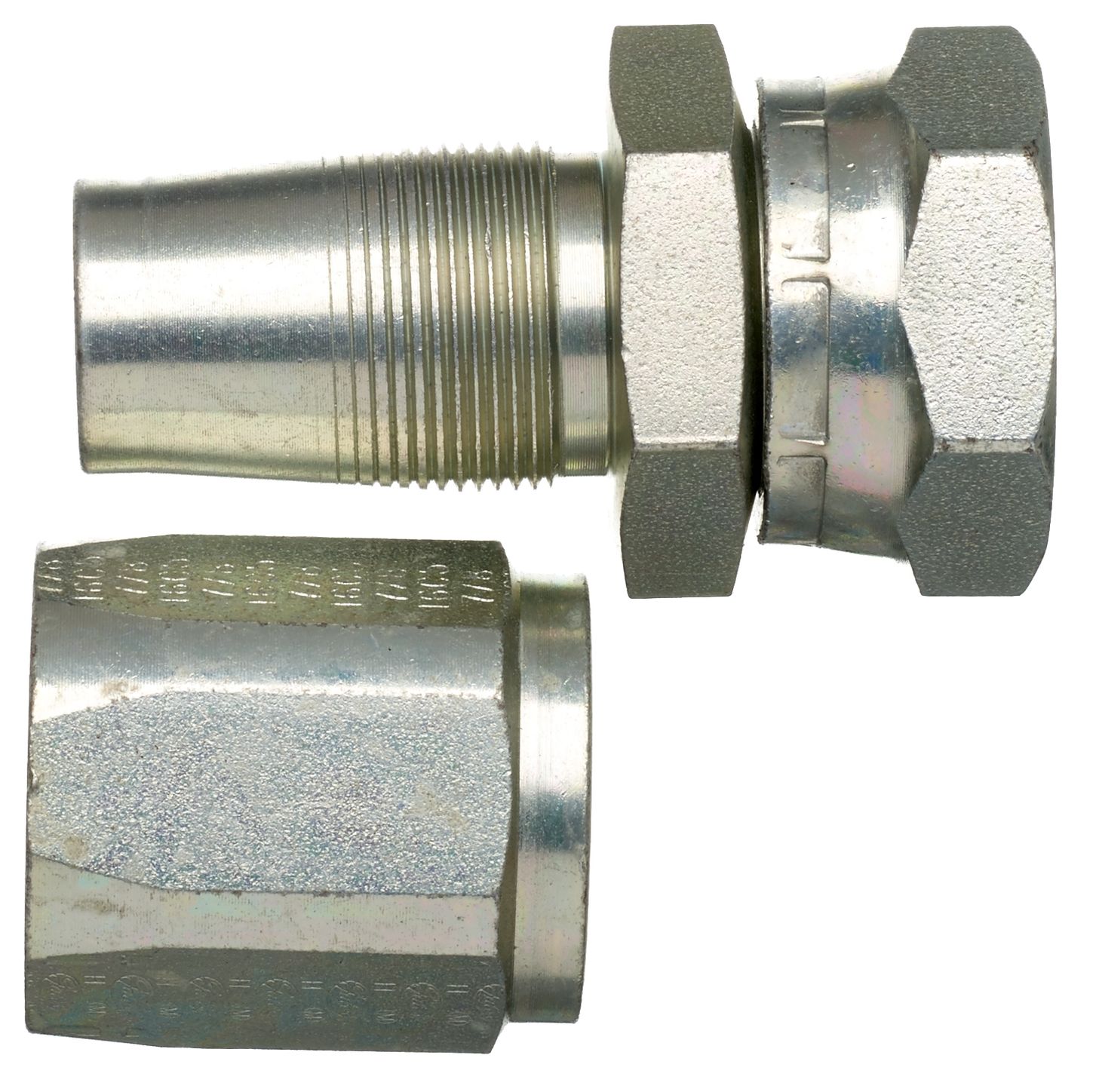

Gates G34562-1616 (16C5-16RFZX) Parker Triple Thread Female Swivel - Steel (C5CXH, C5C, C5D & C5M Hose)
SKU: G34562-1616UPC/EAN: 072053160833
Parker Triple Thread Female Swivel - Steel (C5CXH, C5C, C5D & C5M Hose)
$54.09
EachUsually ships within 4-10 days
Product Details
Gates D.O.T. Type A2 Field Attachable couplings work with C5C, C5CXH, C5D and C5M hoses to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler and hot oil lines without the need for a crimper.
- Designed to perform with Gates C5 hose
Specifications
| SKU | G34562-1616 |
|---|---|
| UPC/EAN | 072053160833 |
| Coupling Style | Field Attachable Couplings |
| Swivel | Yes |
| Thread Configuration | Female Parker Triple Thread Flare (FZ) |
| Inside Diameter | 7/8" (14) |
| Bend Angle | Straight |
| Seal Type | Thread Interference |
| Thread Size | 1 5/16" (21) |
| Gates Code | G34 |
