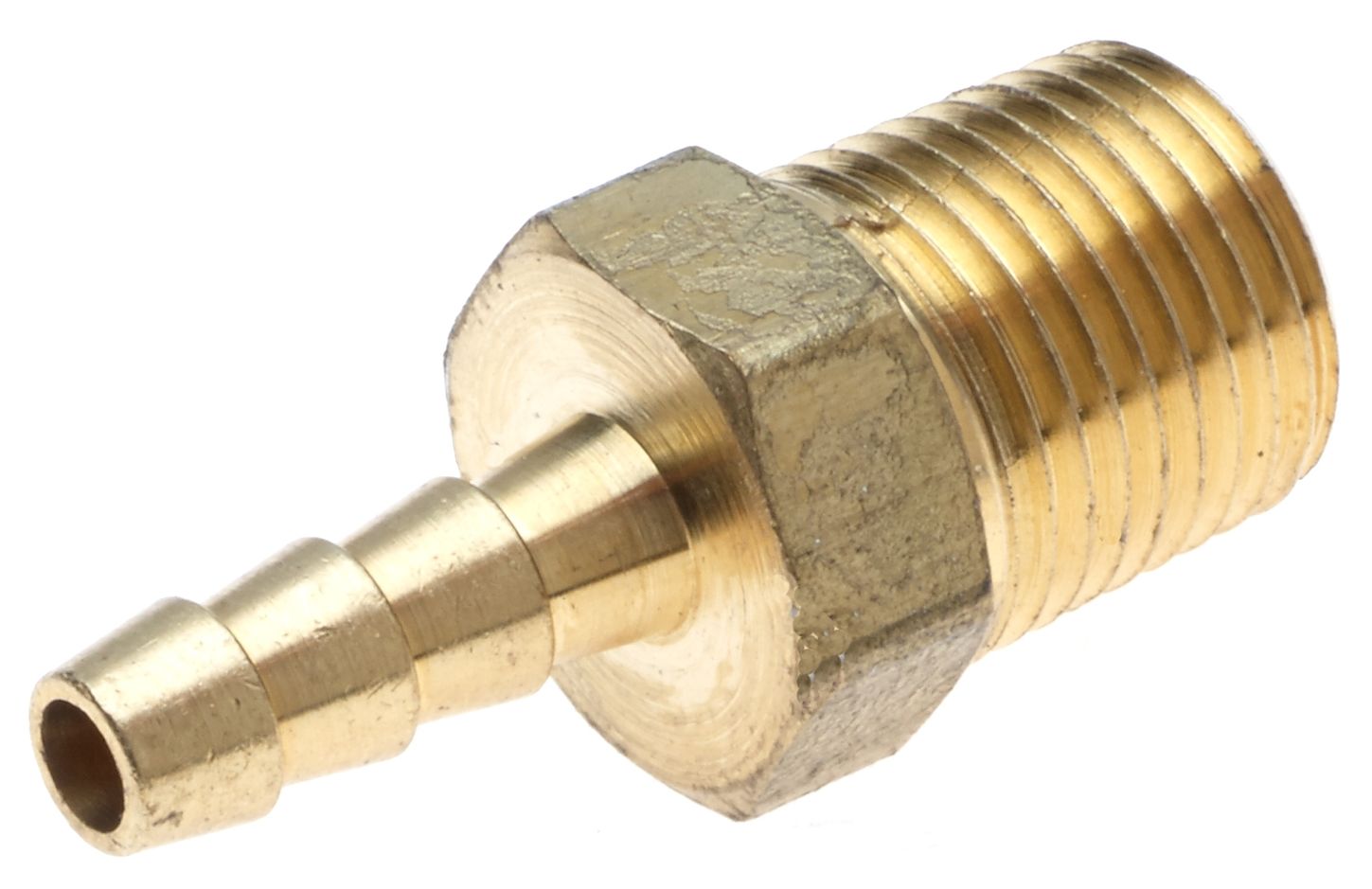

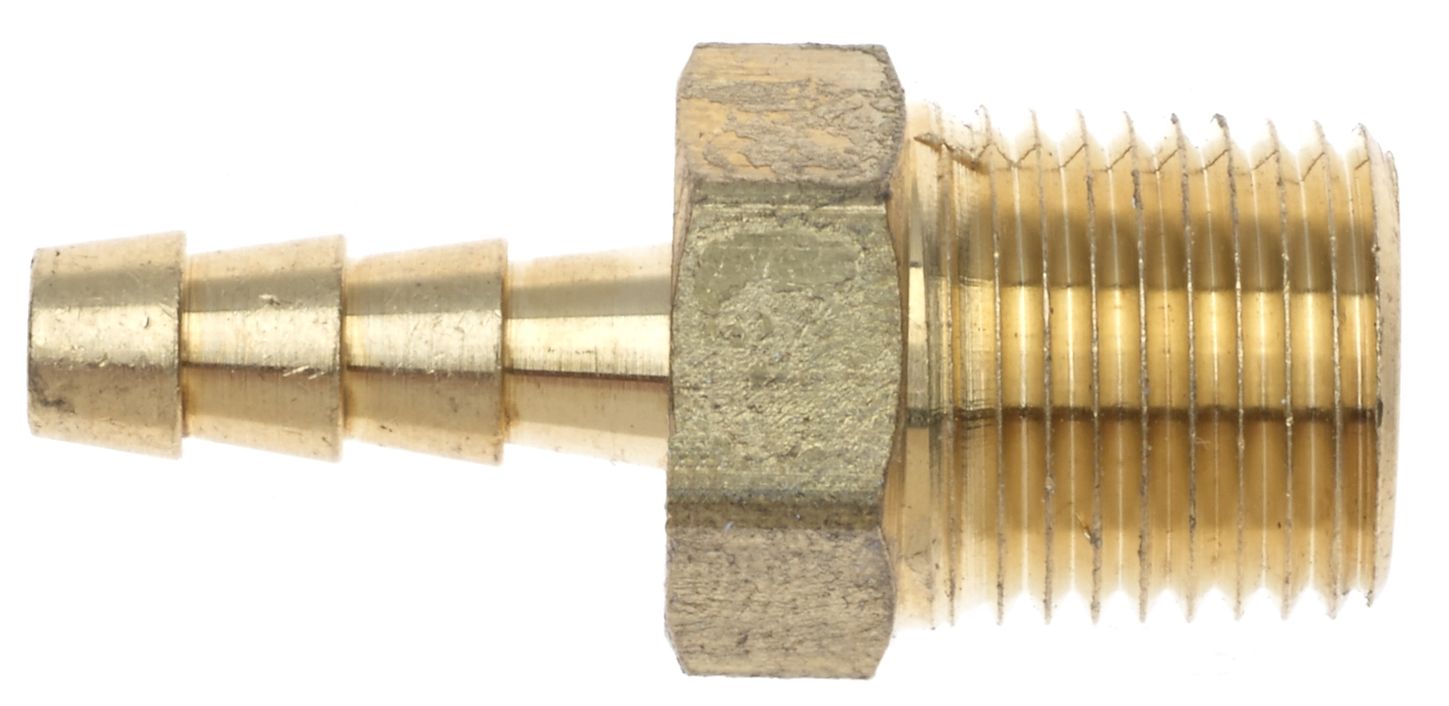

Gates G38100-0402 (4BS-2MP) Male Pipe NPTF with Cone Seat (Barb Stem)
SKU: G38100-0402UPC/EAN: 029769145548
Male Pipe NPTF with Cone Seat (Barb Stem)
$2.00
EachUsually ships within 3 days
Product Details
Recommended for low pressure fuel, oil, compressed air, water and cooling lines. Typically used in heavy-duty truck, construction, industrial and mobile applications. Field attachable and reusable. An economical choice for general purpose fluid and pneumatic applications. The one-piece fitting is compact and great for use in tight spaces.
- Used with low pressure multi-purpose or general purpose rubber hose and thermoplastic tubing
Specifications
| SKU | G38100-0402 |
|---|---|
| UPC/EAN | 029769145548 |
| Coupling Style | Barbed Stem Couplings |
| Swivel | No |
| Thread Configuration | Male Pipe (MP) |
| Inside Diameter | 1/4" (04) |
| Bend Angle | Straight |
| Seal Type | Thread Interference/Mated Angle |
| Thread Size | 1/8" (02) |
| Working Pressure Rating (PSI) | 150 |
| Gates Code | G38 |
