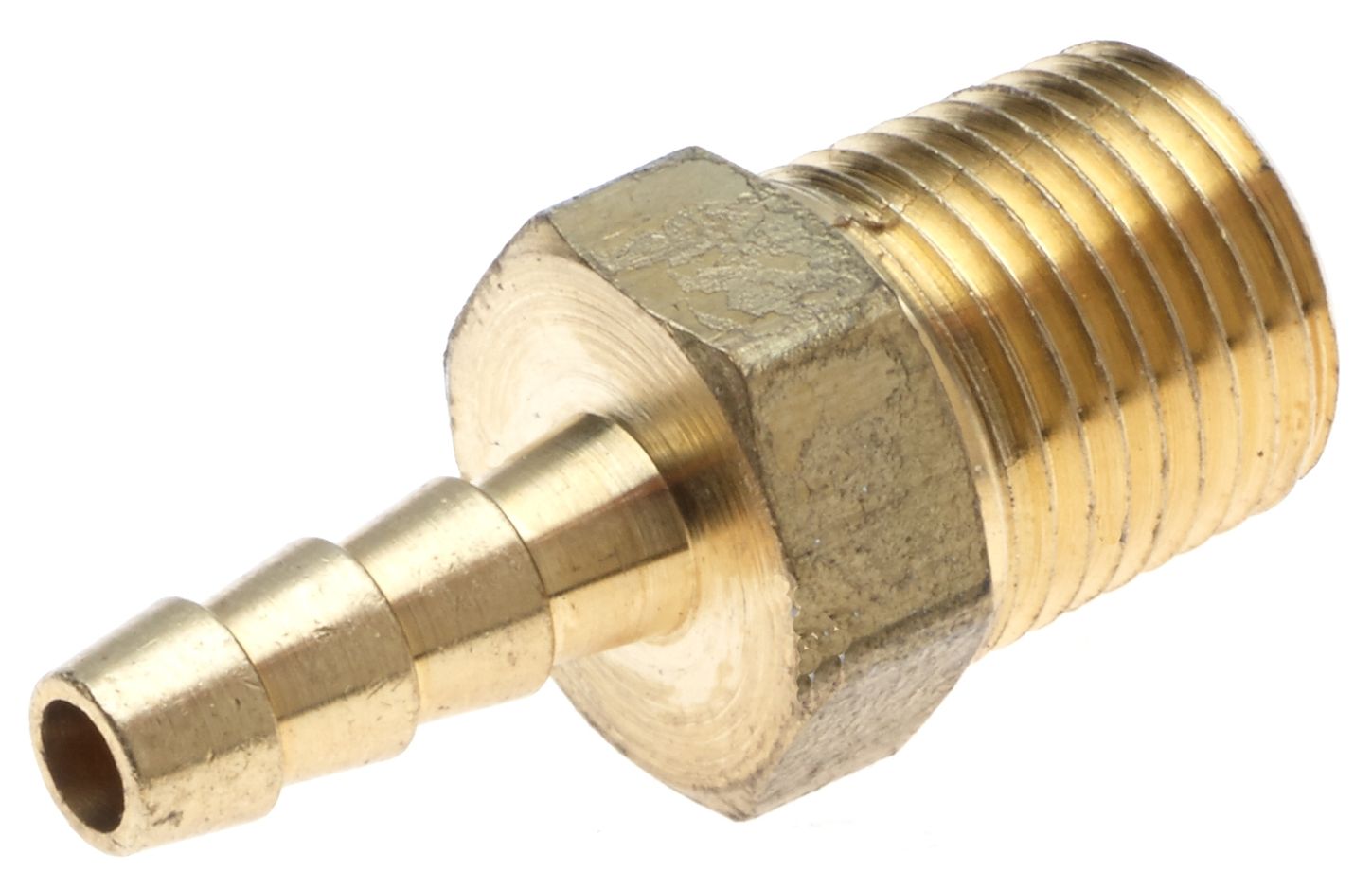

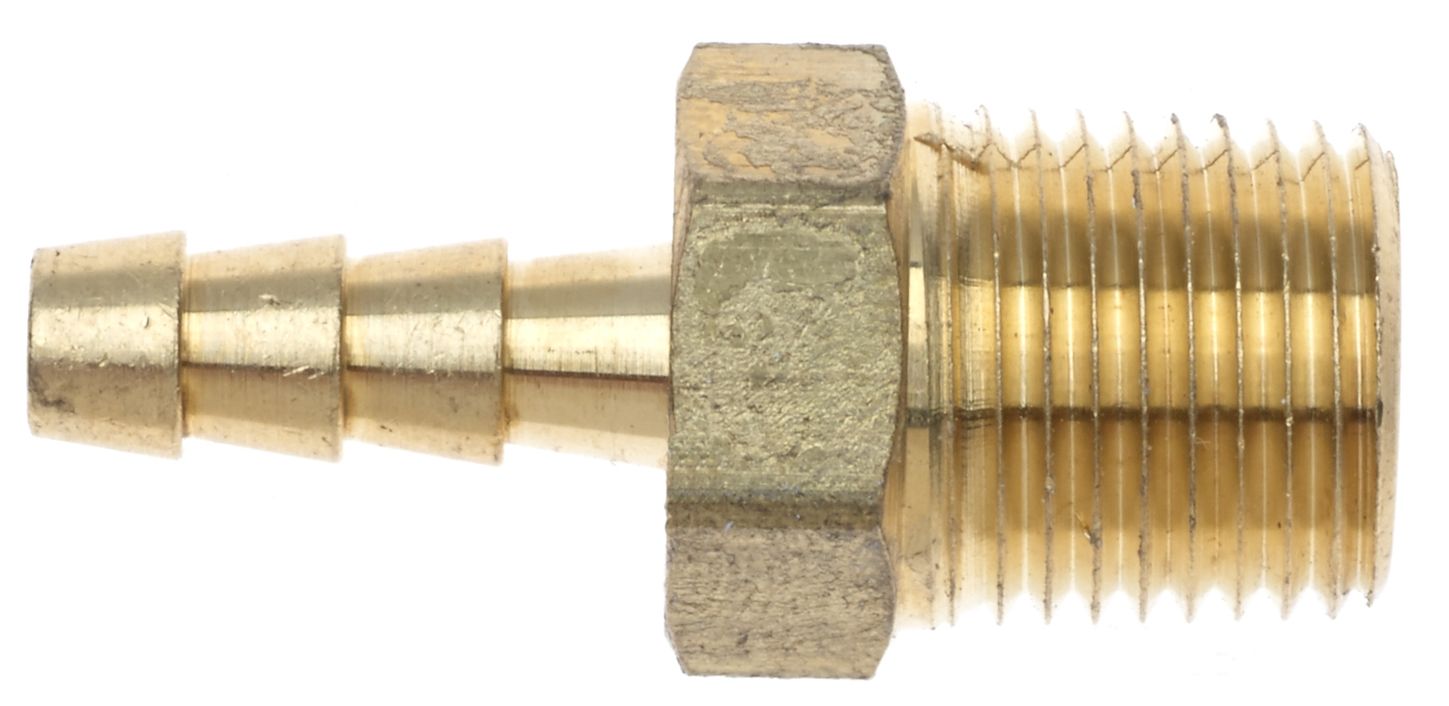

Gates G38100-1212 (12BS-12MP) Male Pipe NPTF with Cone Seat (Barb Stem)

Name: Gates G38100-1212 (12BS-12MP) Male Pipe NPTF with Cone Seat (Barb Stem)
Brand: Gates
SKU: G38100-1212
Price: 6.73 USD
Availability: InStock

SKU: G38100-1212Cross reference: G381001212GAT80018UPC/EAN: 029769145814

Male Pipe NPTF with Cone Seat (Barb Stem)

$6.73

Each

In stock

Quantity

remove

add

Free Standard Shipping
On orders $150 and up

Technical Staff
Ready to assist you

Product Details

Recommended for low pressure fuel, oil, compressed air, water and cooling lines. Typically used in heavy-duty truck, construction, industrial and mobile applications. Field attachable and reusable. An economical choice for general purpose fluid and pneumatic applications. The one-piece fitting is compact and great for use in tight spaces.

Used with low pressure multi-purpose or general purpose rubber hose and thermoplastic tubing

Specifications

SKU	G38100-1212
Cross reference	G381001212, GAT80018
UPC/EAN	029769145814
Coupling Style	Barbed Stem Couplings
Swivel	No
Thread Configuration	Male Pipe (MP)
Inside Diameter	3/4" (12)
Bend Angle	Straight
Seal Type	Thread Interference/Mated Angle
Thread Size	3/4" (12)
Working Pressure Rating (PSI)	150
Gates Code	G38
