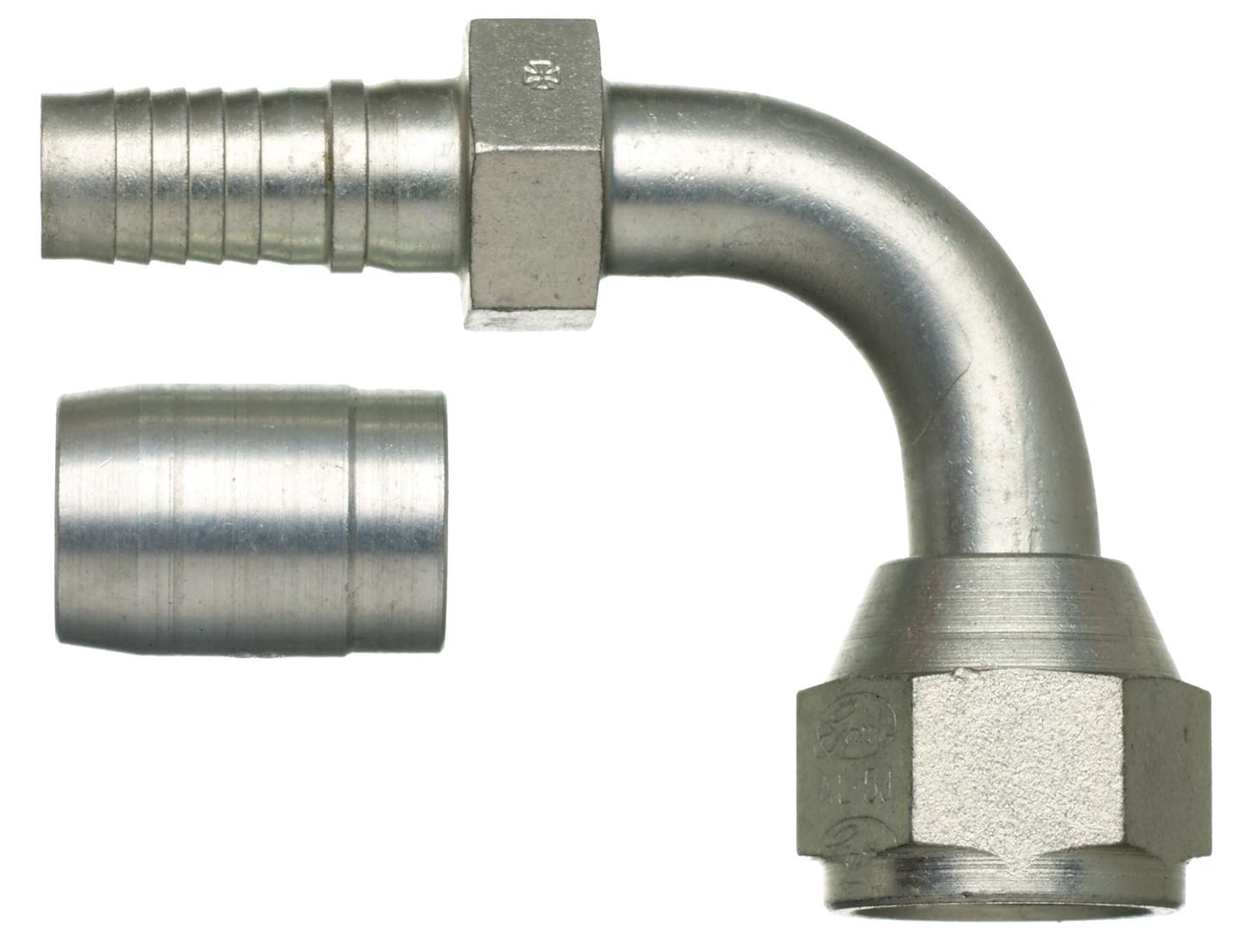

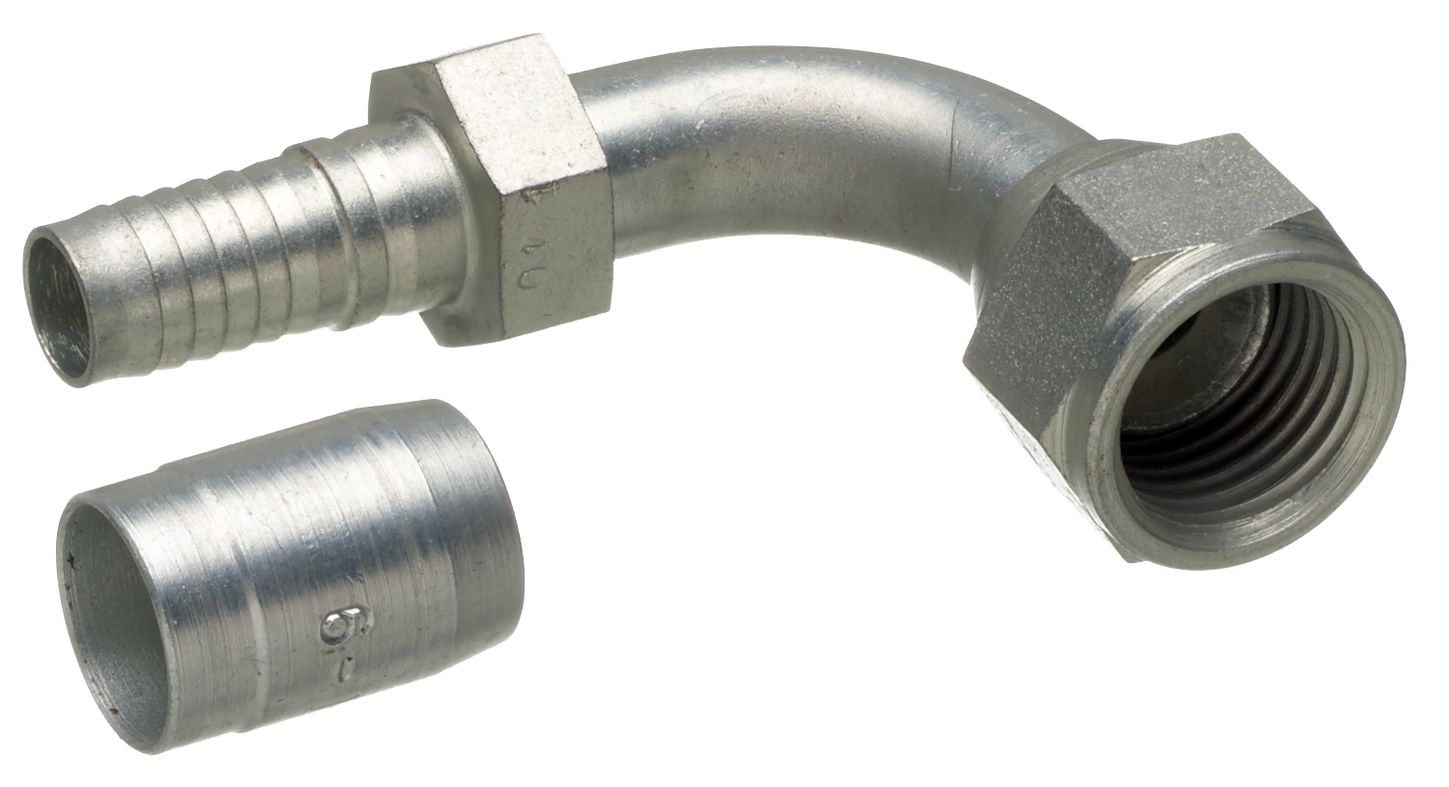

Gates G35212-0404 (4C5E-4RFJSX90) Dual Seat Female JIC 37/SAE 45 Flare Swivel - 90 Bent Tube - Steel (C5E Hose)
SKU: G35212-0404UPC/EAN: 072053168693
Dual Seat Female JIC 37/SAE 45 Flare Swivel - 90 Bent Tube - Steel (C5E Hose)
$23.43
EachUsually ships within 4-10 days
Product Details
Our D.O.T. Type A1 Field Attachable couplings work with Gates C5E hose to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler, and hot oil lines without the need for a crimper.
- Designed to perform with Gates C5E Hose
Specifications
| SKU | G35212-0404 |
|---|---|
| UPC/EAN | 072053168693 |
| Coupling Style | Field Attachable Couplings |
| Swivel | Yes |
| Thread Configuration | Female JIC Dual Seat (FJS) |
| Inside Diameter | 3/16" (03) |
| Bend Angle | 90° |
| Seal Type | Mated Angle |
| Thread Size | 7/16" (07) |
| Gates Code | G35 |
