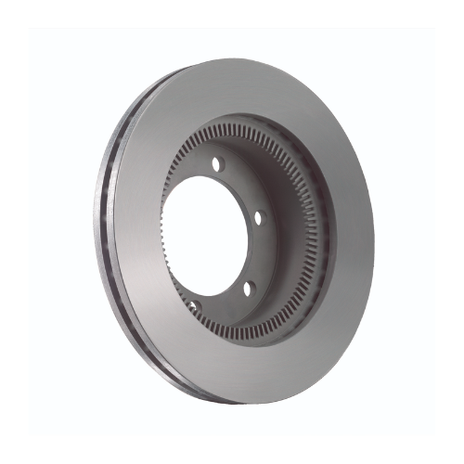

Webb Wheel 54776P-98 DISC Brake Rotor W/ FNC & Magnacote coating

The Webb Wheel Rotor Detail is a robust, high-quality hat rotor built to exact specifications. It offers precise dimensions and a durable design, ensuring dependable performance in demanding braking applications.

Webb Wheel Rotor Detail (54776P-98)

INCLUDES: (1) Webb Wheel Rotor Detail (54776P-98)

PRODUCT OVERVIEW

Engineered for high-performance braking systems, the Webb Wheel Rotor Detail delivers dependable strength and reliability. This hat rotor is constructed with meticulous attention to detail, providing a secure fit and consistent operation. Designed for rigorous applications, it features precise measurements that ensure optimal compatibility and performance.

KEY FEATURES:

• Precision-engineered hat rotor design for optimal braking performance
• Durable construction for long-lasting reliability
• Designed to meet rigorous performance standards in high-quality braking systems

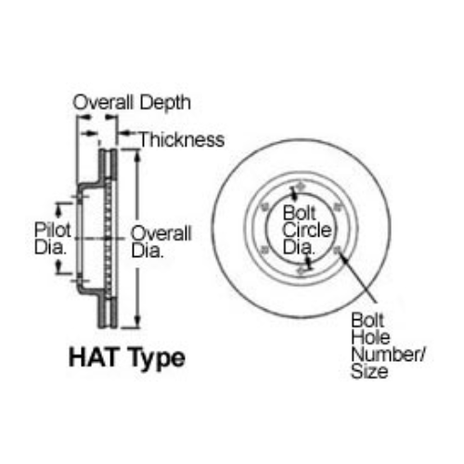

SPECIFICATIONS:

• Rotor Type: Hat
• Weight: 44 lbs (19.96 kg)
• Overall Diameter: 15.38” (390.65 mm)
• Disc Thickness: 1.535” (38.99 mm)
• Minimum Thickness: 1.32” (33.53 mm)
• Overall Depth: 3.4” (86.36 mm)
• Pilot Diameter: 5.25” (133.35 mm)
• Bolt Circle Diameter: 6.75” (171.45 mm)
• Bolt Holes: 6 (each 0.77” or 19.56 mm in size)
