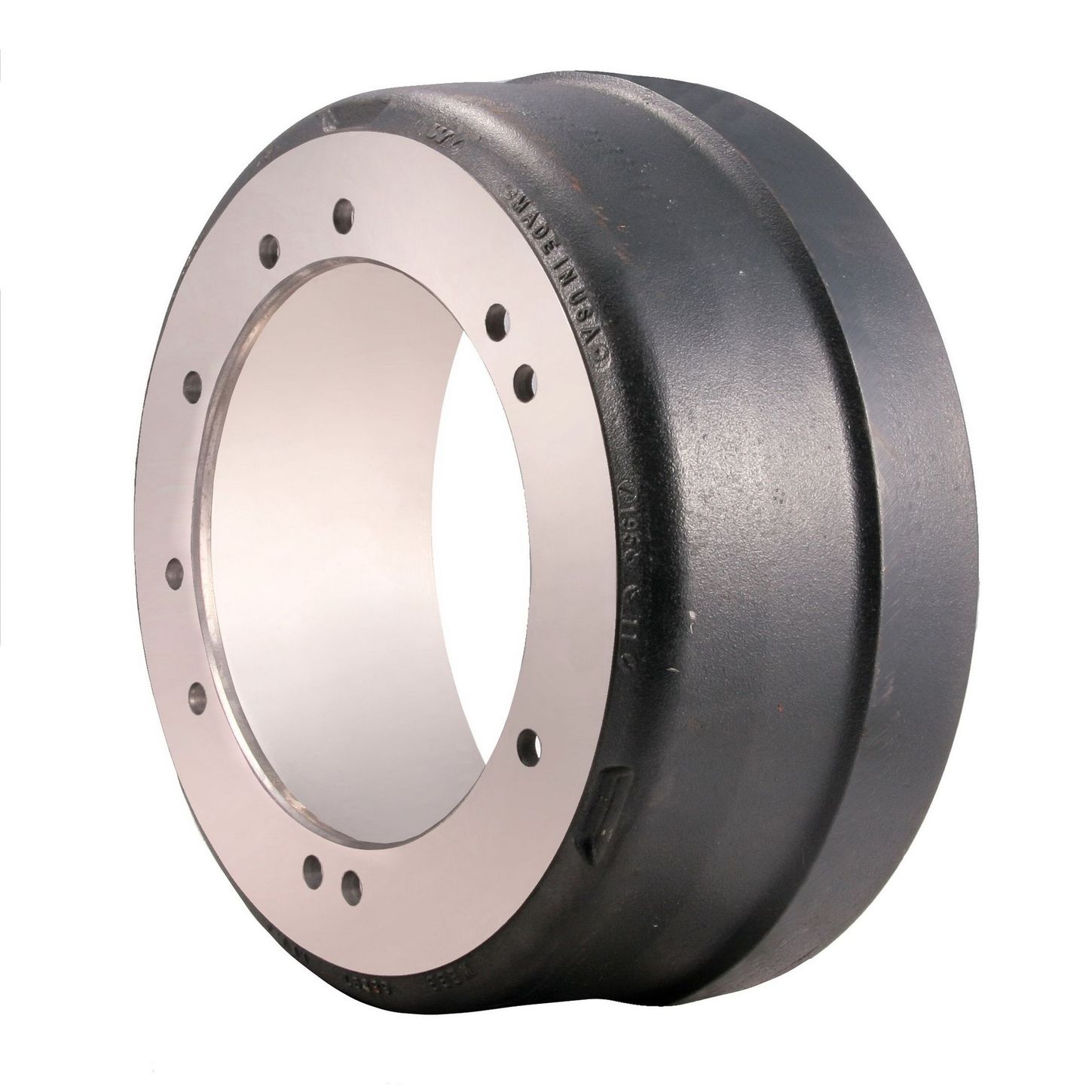

Webb Wheel 68897F BRAKE DRUM 16.50 X 7.0

The Webb Wheel 16.5” x 7” Inboard Mount Brake Drum delivers superior braking performance with a durable design and corrosion-resistant properties. Featuring a 16.5-inch brake surface diameter, a 7-inch brake shoe width, and a precision-engineered inboard mounting system, this drum enhances vehicle safety and longevity.

Webb Wheel 16.5” x 7” Inboard Mount Brake Drum

INCLUDES: (1) Webb Wheel 16.5” x 7” Inboard Mount Brake Drum

Improve your vehicle’s stopping power so you can be Ready for the Road Ahead®, with the Webb 16.5” x 7” Inboard Mount Brake Drum that ensures responsive and reliable brakes. Thanks to its large contact surface area and corrosion-resistant properties, this brake drum offers an extended service life to keep your vehicle running longer. Once equipped, this replacement part improves a vehicle’s handling and ride smoothness, thanks to an internal mounting system. Manufactured with exact specifications to provide superior performance.

KEY FEATURES:
- 5 or 6- .66” bolt
- 12.75” bolt circle diameter
- Conforms to SAE Recommended Practices
- Decreases operating costs
- Industry standard for quality wheel end equipment
- Enhances truck performance
- Engineered to meet or exceed OEM specifications
- State of the art machine balancing meets or exceeds the industry standard of 20 in-oz
- Standard finish brake drum type
- Proudly made in the U.S.A

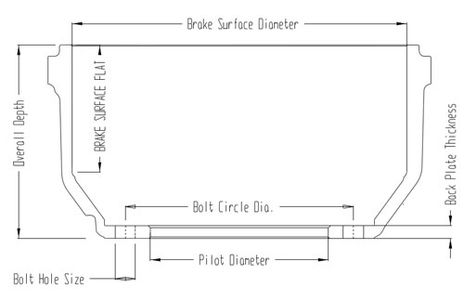

SPECIFICATIONS:

• Maximum Wear Diameter: 16.62 inches
• Drum Pilot Diameter: 11.00 inches
• Drum Bolt Hole Diameter: 0.66 inches
• Drum Bolt Circle Diameter: 12.75 inches
• Brake Shoe Width: 7.00 inches
• Brake Surface Diameter: 16.50 inches
• Mounting Surface Flange/Back Plate: 0.41 inches
• Mounting Type: Inboard
• Drum Bolt Hole Count: ⅚
• Drum Brake Surface Flat Depth: 7.28 inches
• Drum Overall Depth: 8.00 inches
