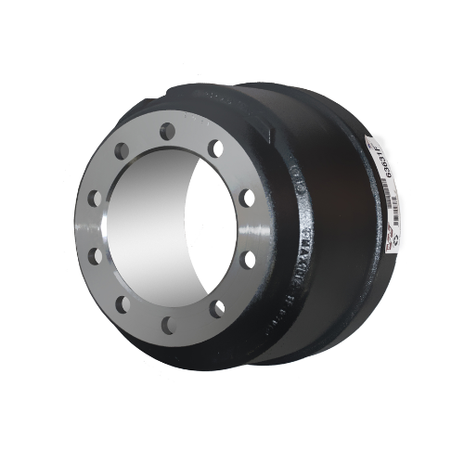

Webb Wheel 63631F BRAKE DRUM 12.25 X 7.5

The Webb Wheel Drum Detail is a robust drum built to precise specifications, ensuring dependable performance in high-quality braking systems.

Webb Wheel Drum Detail (63631F)

INCLUDES: (1) Webb Wheel Drum Detail (63631F)

PRODUCT OVERVIEW

Engineered for high-performance braking, the Webb Wheel Drum Detail delivers consistent strength and reliability. This drum is meticulously designed to provide a secure fit and optimal performance in demanding applications. Its durable construction and precision measurements make it an ideal choice for those seeking dependable braking components.

KEY FEATURES:

• Precision-engineered drum design for optimal braking performance
• Durable construction for long-lasting reliability
• Meets rigorous performance standards in high-quality braking systems

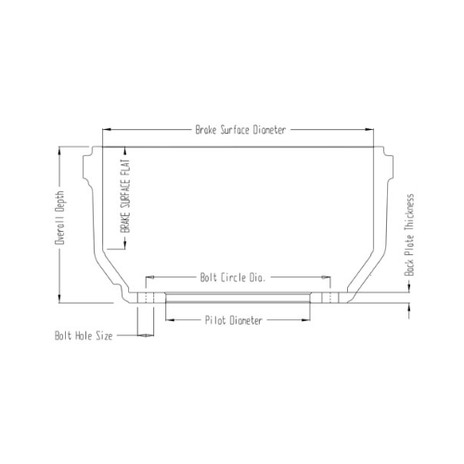

SPECIFICATIONS:

• Weight: 81 lbs
• Brake Shoe Width: 7.5”
• Back Plate Thickness: 0.50”
• Drum Type: H
• Mount: Inboard
• Brake Surface Diameter: 12.25”
• Overall Depth: 10.47”
• Brake Surface Flat: 8.12”
• Pilot Diameter: 7.12”
• Bolt Circle Diameter: 8.75”
• Bolt Holes: 10 (each 0.81”)
• Maximum Wear Diameter: 12.37”
