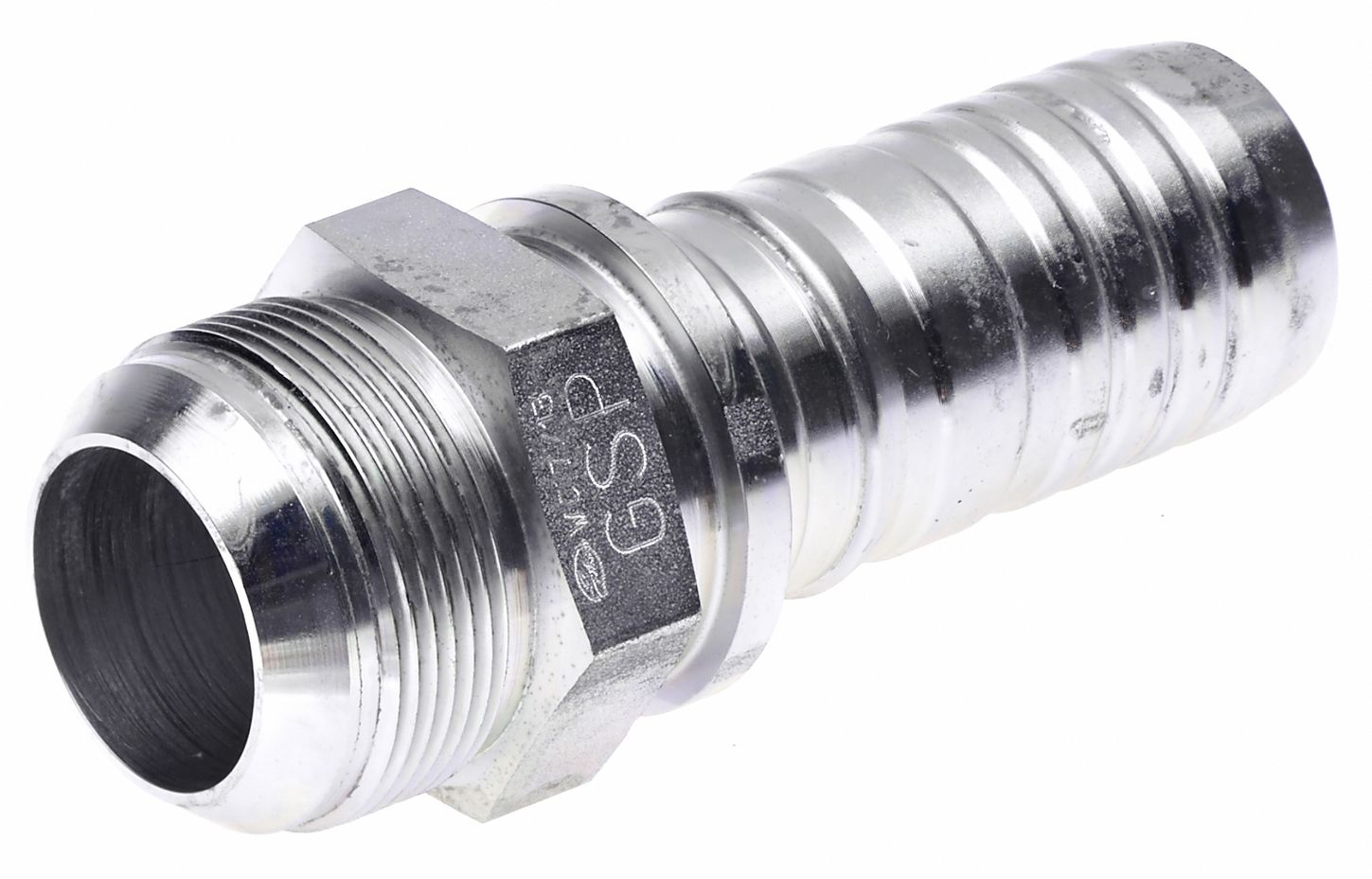

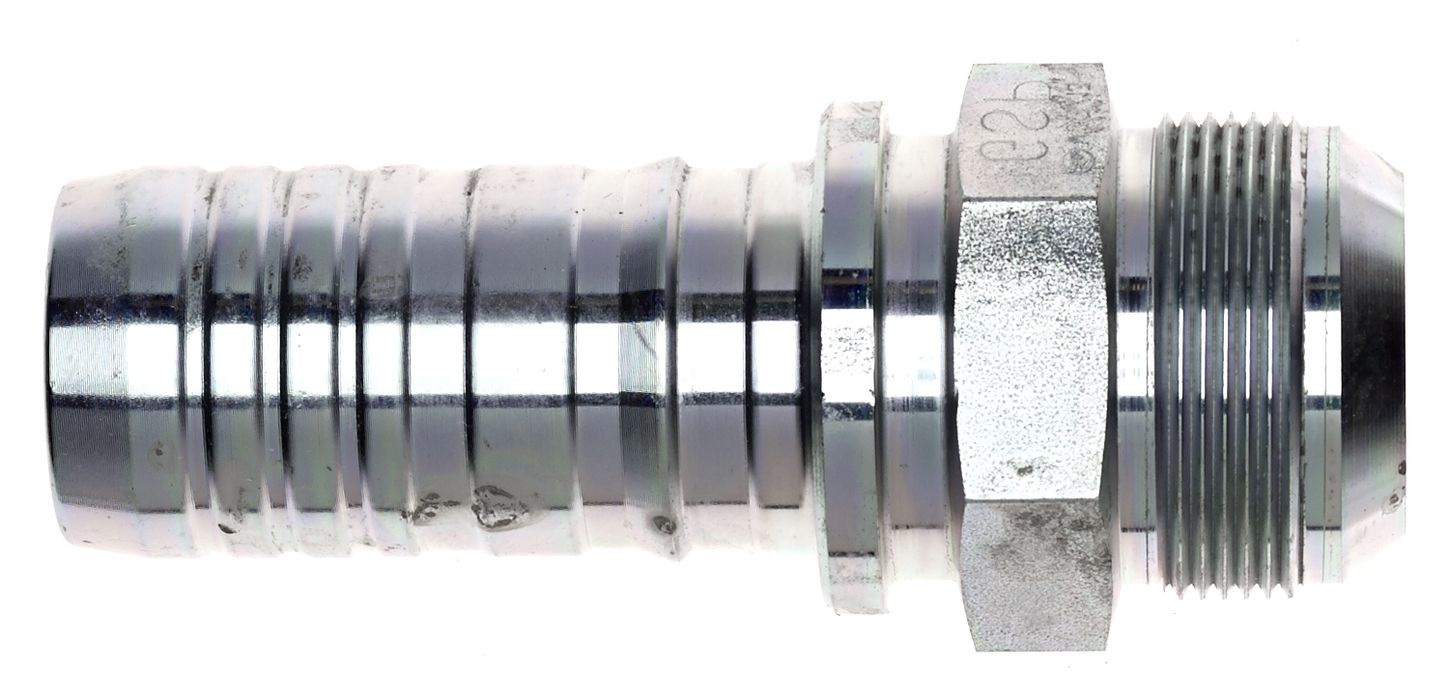

Gates G22165-2420 (24GSP-20MJ) Male JIC 37 Flare (GlobalSpiral Plus)
SKU: G22165-2420UPC/EAN: 770075372967
Male JIC 37 Flare (GlobalSpiral Plus)
$86.00
EachUsually ships within 4-10 days
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system.
- “Bite-the-wire” crimp for improved coupling retention
Specifications
| SKU | G22165-2420 |
|---|---|
| UPC/EAN | 770075372967 |
| Coupling Style | GlobalSpiral Plus Couplings |
| Swivel | No |
| Thread Configuration | Male JIC (MJ) |
| Inside Diameter | 1 1/2" (24) |
| Bend Angle | Straight |
| Seal Type | Mated Angle |
| Thread Size | 1 5/8" (26) |
| Gates Code | G22 |
