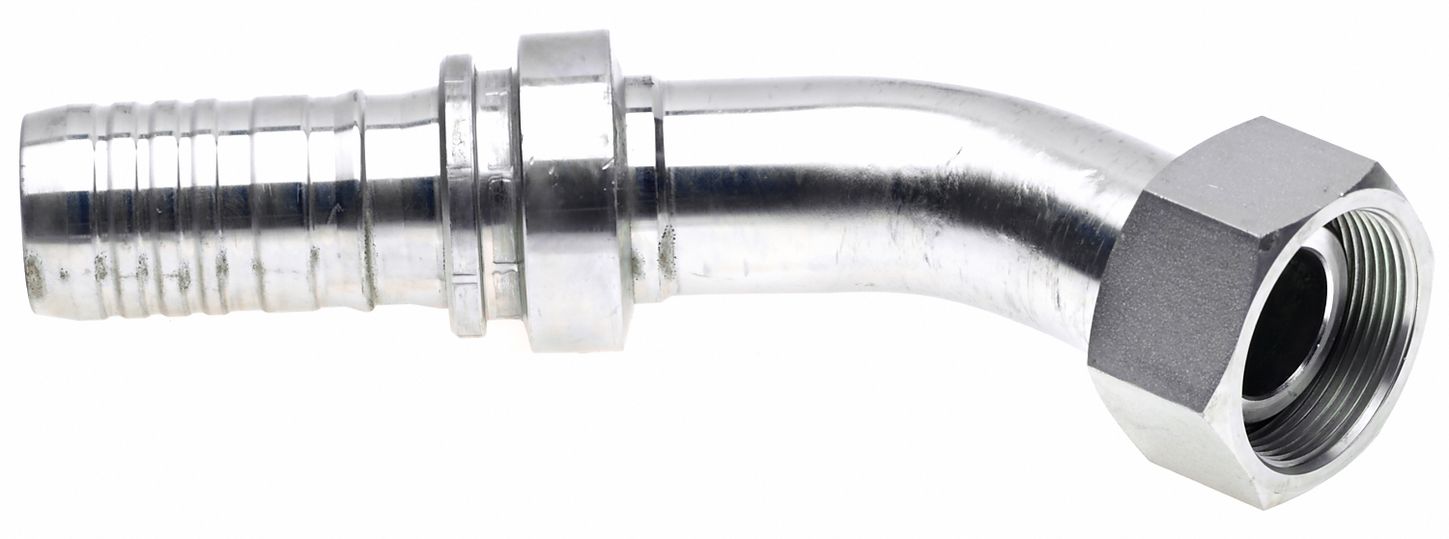

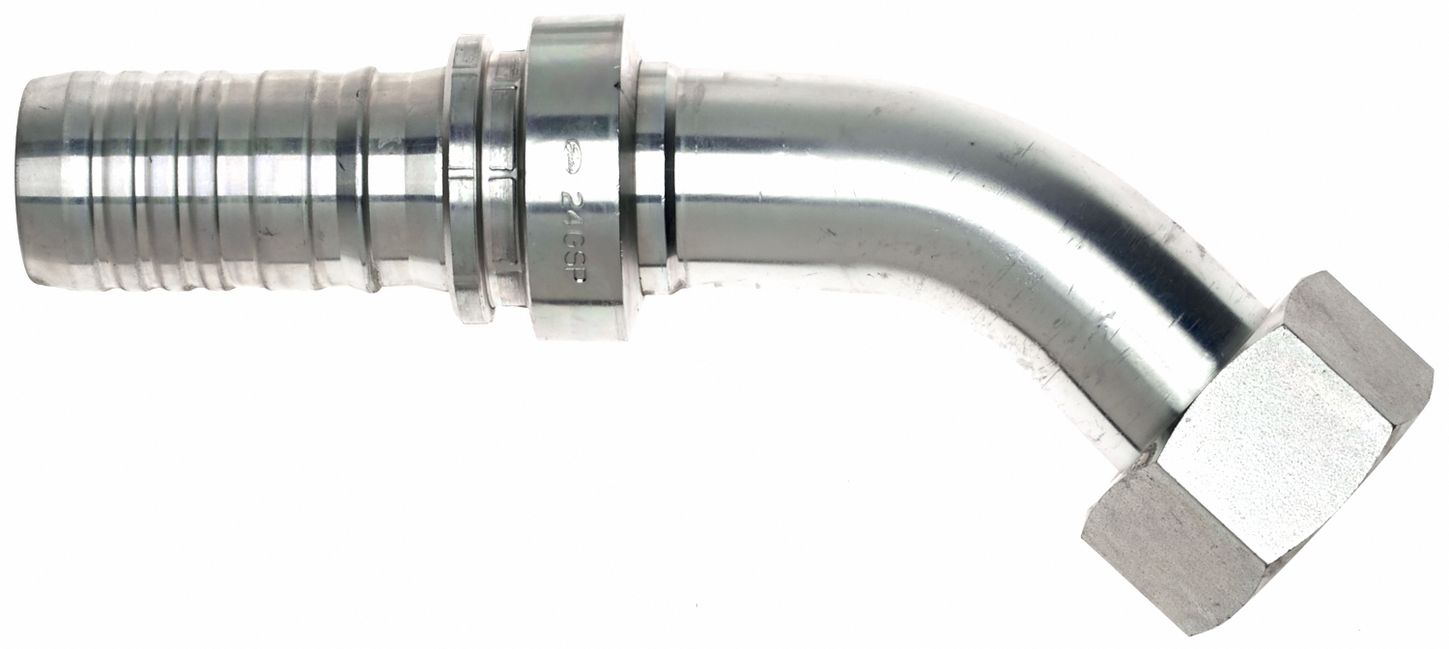

Gates G22831-3232 (32GSP-32FBSPORX45) Female British Standard Parallel Pipe O-Ring Swivel - 45 Bent Tube
SKU: G22831-3232UPC/EAN: 770075443957
Female British Standard Parallel Pipe O-Ring Swivel - 45 Bent Tube
$343.73
EachUsually ships within 4-10 days
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system. Separate ferrules are required for 4-spiral hose and wire braid hose. S, M and L Drops per ISO Final Draft International Standard 12151-6.
- “Bite-the-wire” crimp for improved coupling retention
Specifications
| SKU | G22831-3232 |
|---|---|
| UPC/EAN | 770075443957 |
| Coupling Style | GlobalSpiral Plus Couplings |
| Swivel | Yes |
| Thread Configuration | Female British Standard Pipe with O-Ring (FBSPOR) |
| Inside Diameter | 2" (32) |
| Bend Angle | 45° |
| Seal Type | O-Ring |
| Thread Size | 2" (32) |
| Gates Code | G22 |
