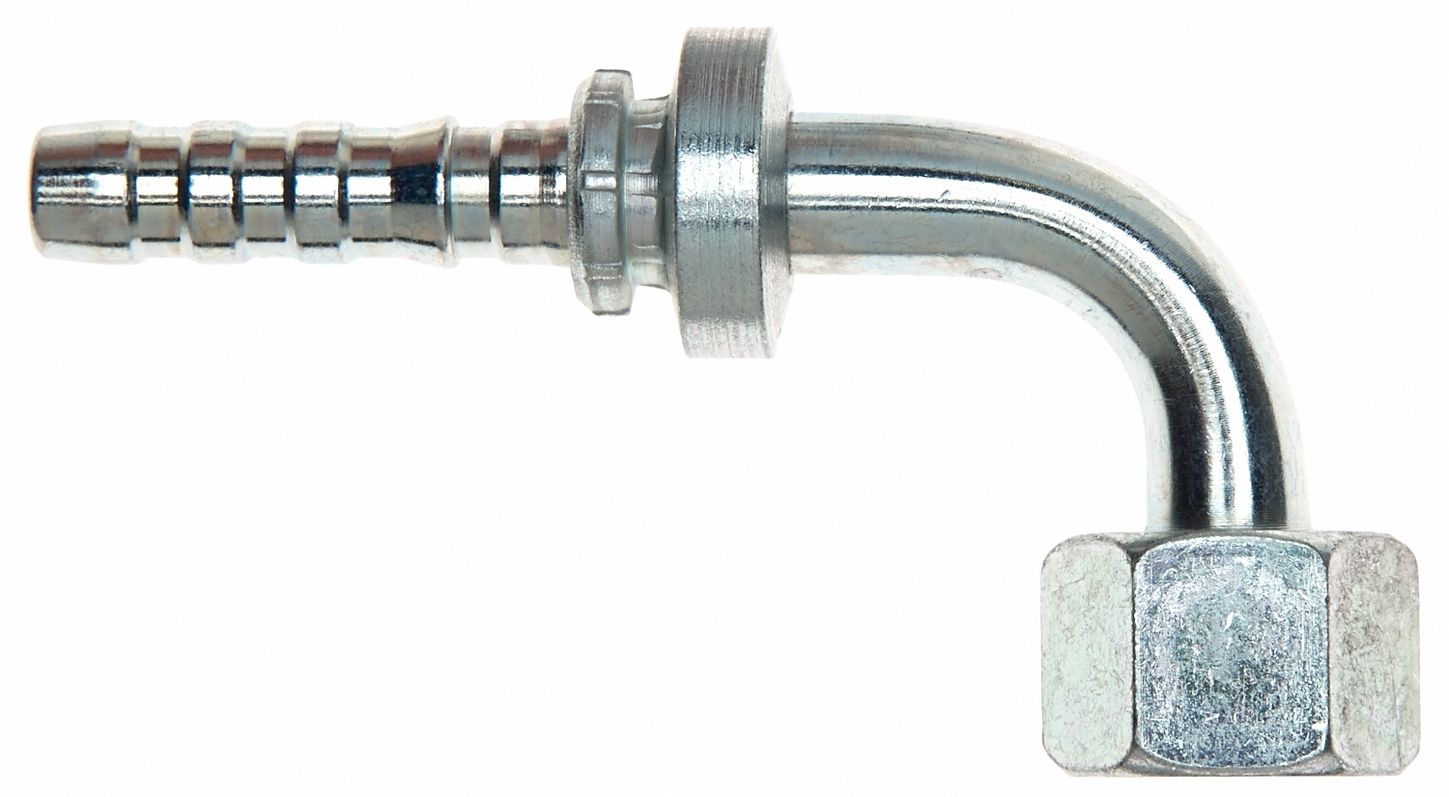

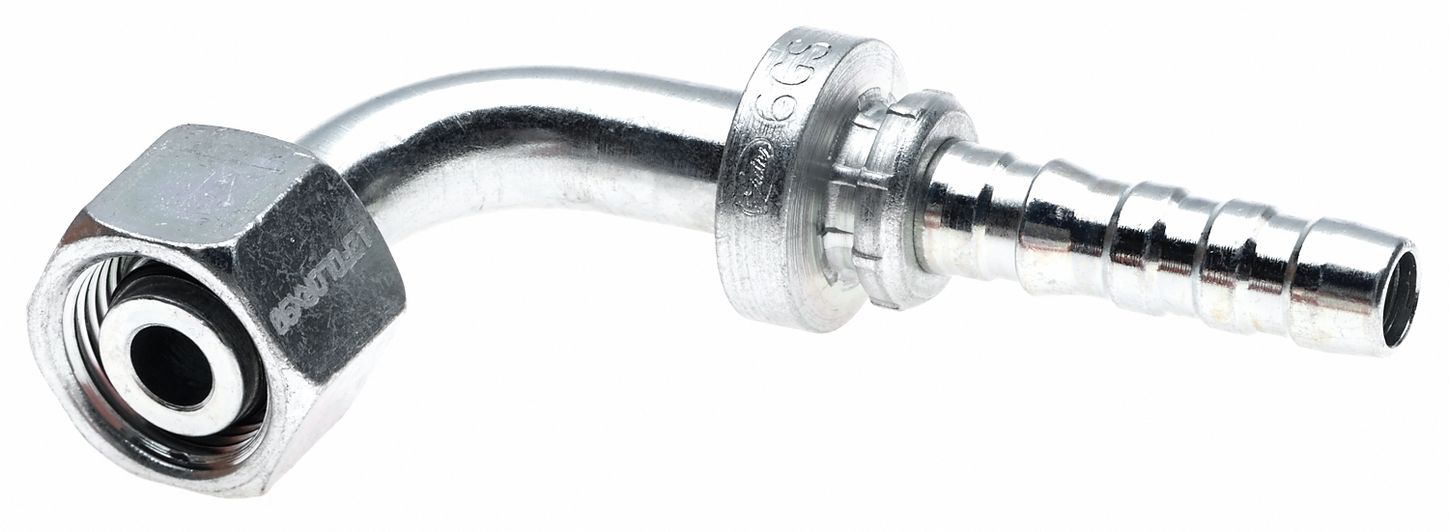

Gates G22655-2442 (24GSP-42FDLORX90) Female DIN 24 Cone Swivel - Light Series with O-Ring - 90 Bent Tube
SKU: G22655-2442UPC/EAN: 770075424383
Female DIN 24 Cone Swivel - Light Series with O-Ring - 90 Bent Tube
$249.87
EachUsually ships within 4-10 days
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system.
- “Bite-the-wire” crimp for improved coupling retention
Specifications
| SKU | G22655-2442 |
|---|---|
| UPC/EAN | 770075424383 |
| Coupling Style | GlobalSpiral Plus Couplings |
| Swivel | Yes |
| Thread Configuration | Female DIN Cone with O-Ring (FDOR) |
| Inside Diameter | 1 1/2" (24) |
| Bend Angle | 90° |
| Seal Type | O-Ring |
| Thread Size | 2 1/16" (33) |
| Gates Code | G22 |
