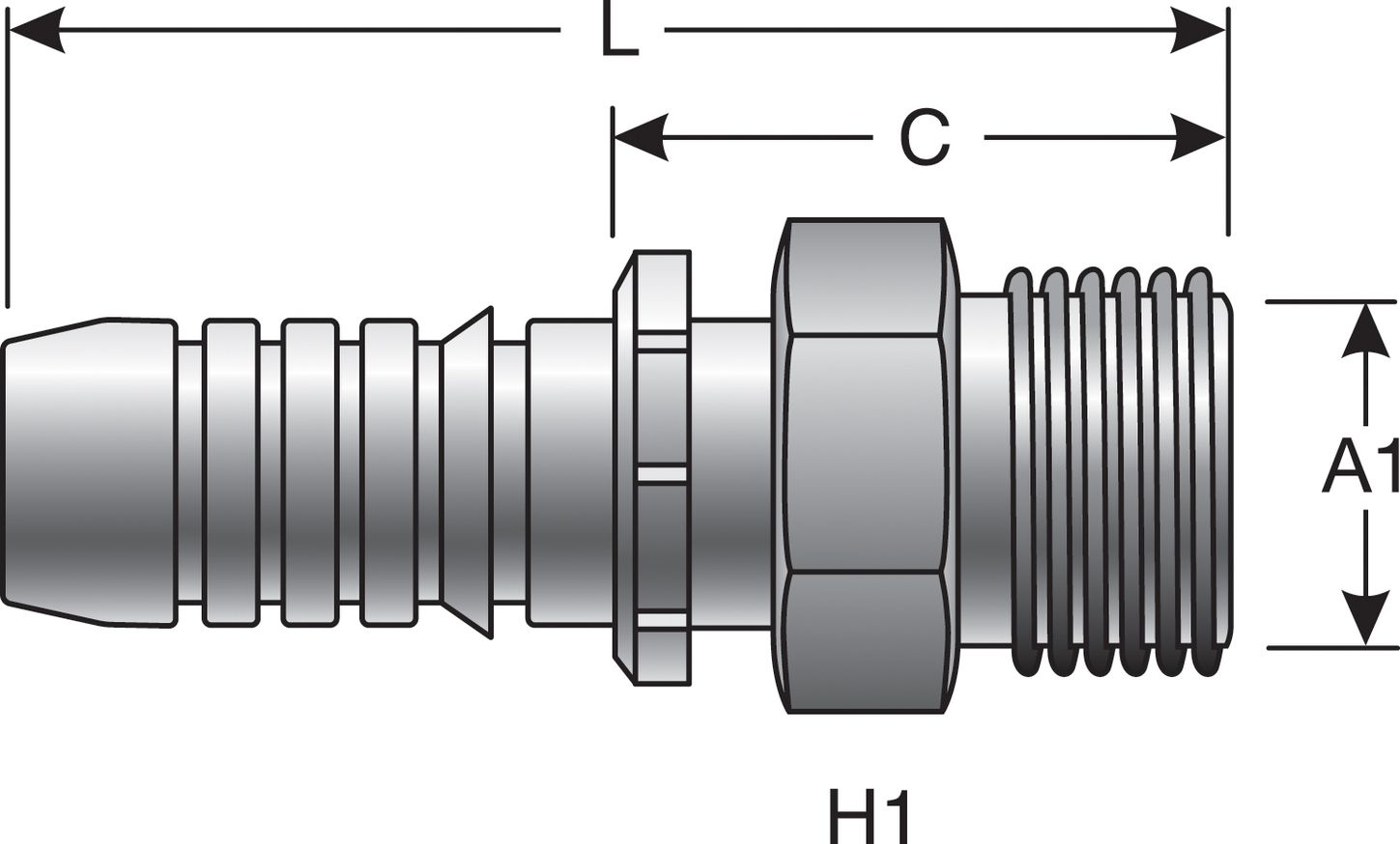

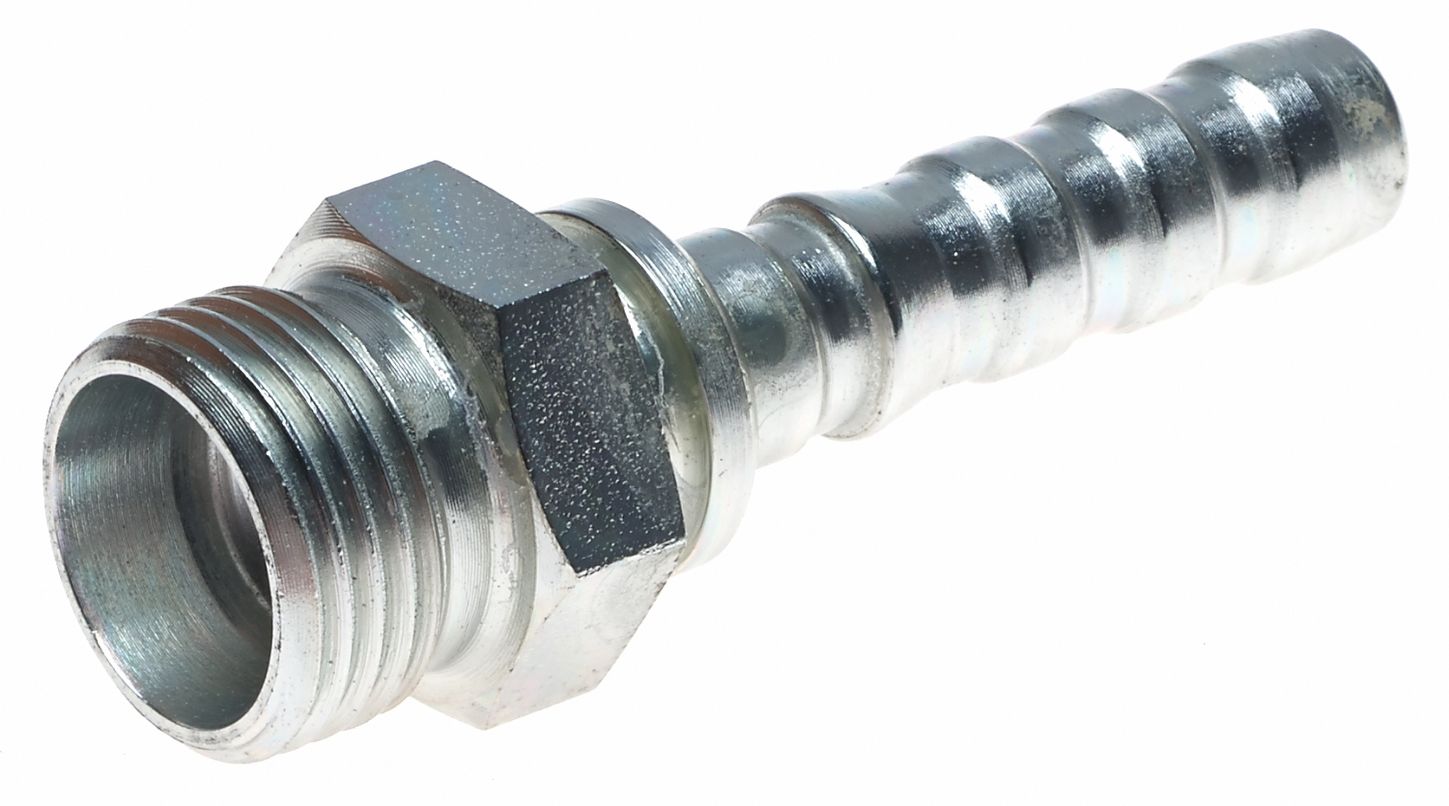

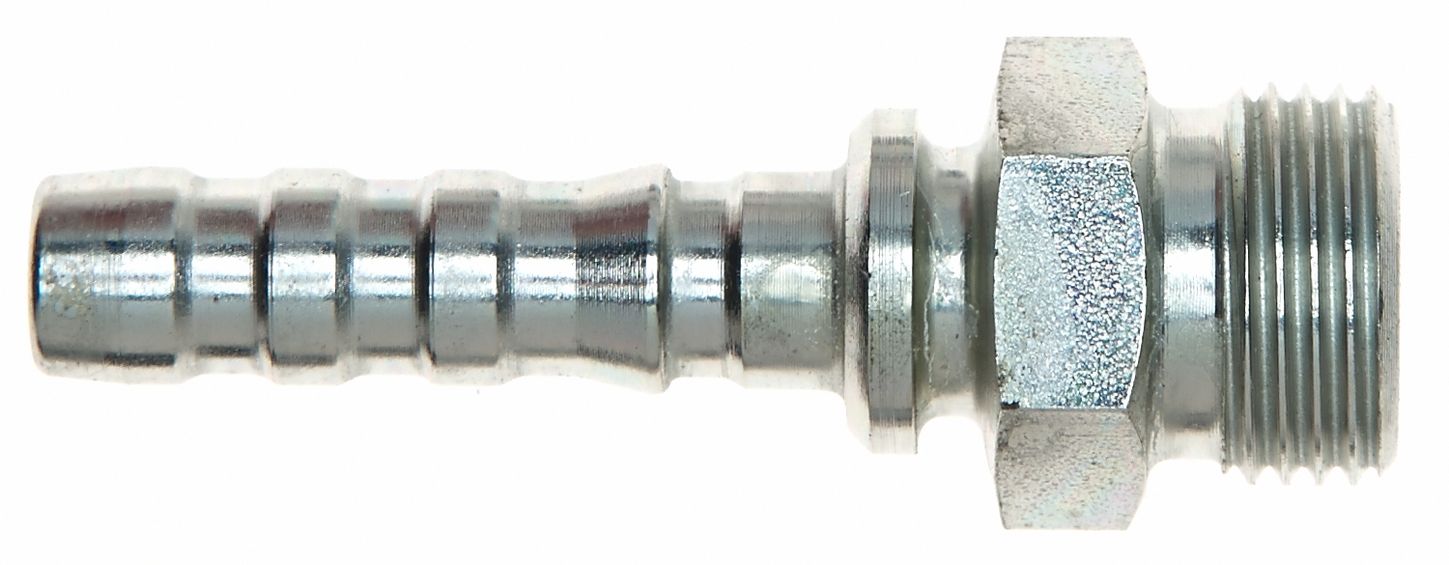

Gates G22615-2442 (24GSP-42MDL) Male DIN 24 Cone - Light Series (GlobalSpiral Plus)
SKU: G22615-2442UPC/EAN: 770075424390
Male DIN 24 Cone - Light Series (GlobalSpiral Plus)
$97.80
EachUsually ships within 4-10 days
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system.
- “Bite-the-wire” crimp for improved coupling retention
Specifications
| SKU | G22615-2442 |
|---|---|
| UPC/EAN | 770075424390 |
| Coupling Style | GlobalSpiral Plus Couplings |
| Swivel | No |
| Thread Configuration | Male DIN Cone (MD) |
| Inside Diameter | 1 1/2" (24) |
| Bend Angle | Straight |
| Seal Type | Mated Angle |
| Thread Size | 2 5/8" (42) |
| Gates Code | G22 |
You may also like
Gates G22645-2442 (24GSP-42FDLORX) Female DIN 24 Cone Swivel - Light Series with O-Ring (GlobalSpiral Plus)
$141.16Each

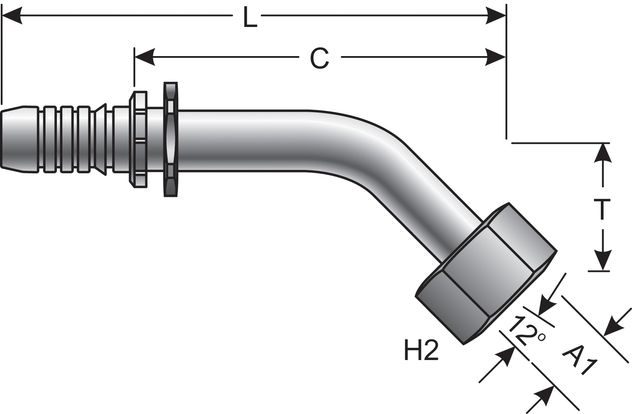

Gates G22650-2442 (24GSP-42FDLORX45) Female DIN 24 Cone Swivel - Light Series with O-Ring - 45 Bent Tube
$230.22Each

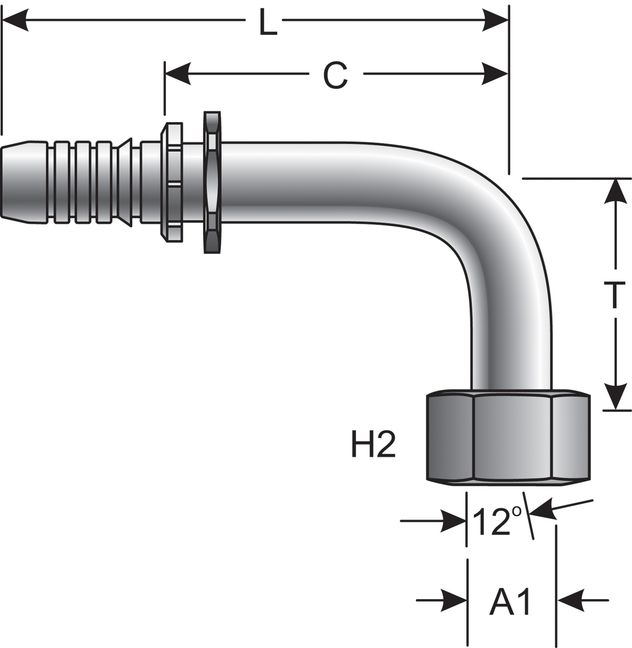

Gates G22655-2442 (24GSP-42FDLORX90) Female DIN 24 Cone Swivel - Light Series with O-Ring - 90 Bent Tube
$249.87Each
Gates G20715-1630 (16GS-30MDH) Male DIN 24 Cone - Heavy Series (GlobalSpiral)
$56.15Each
Gates G20615-1628 (16GS-28MDL) Male DIN 24 Cone - Light Series (GlobalSpiral)
$60.98Each

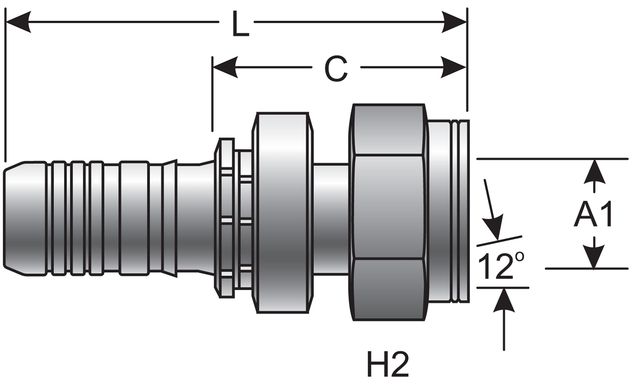

Gates G22720-2438 (24GSP-38FDHORX) Female DIN 24 Cone Swivel - Heavy Series with O-Ring (GlobalSpiral Plus)
$145.42Each
Gates G20615-1222 (12GS-22MDL) Male DIN 24 Cone - Light Series (GlobalSpiral)
$47.98Each

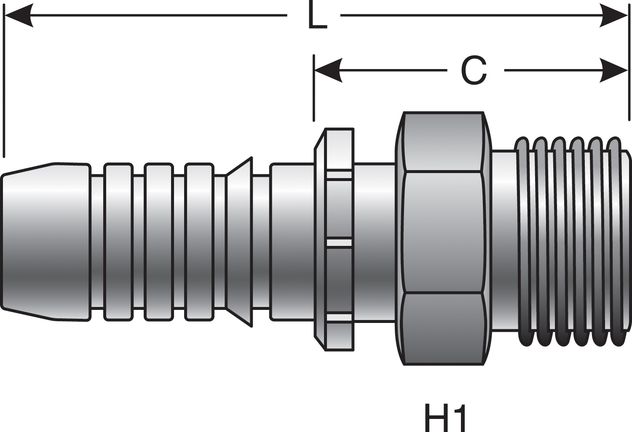

Gates G20715-0614 (6GS-14MDH) Male DIN 24 Cone - Heavy Series (GlobalSpiral)
$39.36Each
Gates G20715-1625 (16GS-25MDH) Male DIN 24 Cone - Heavy Series (GlobalSpiral)
$62.86Each

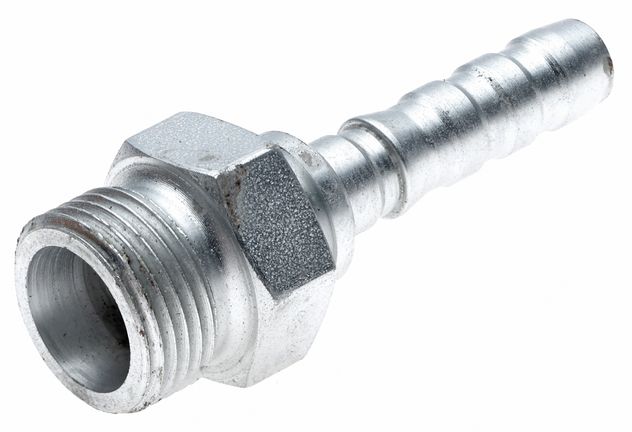

Gates G20715-1020 (10GS-20MDH) Male DIN 24 Cone - Heavy Series (GlobalSpiral)
$46.88Each

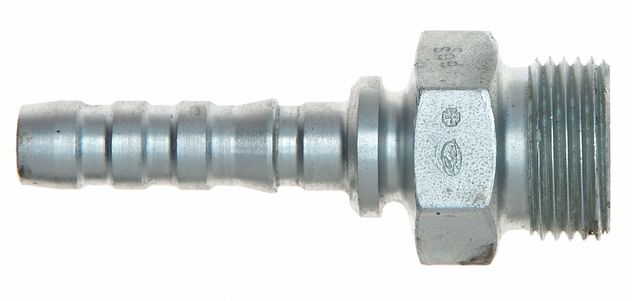

Gates G20715-1230 (12GS-30MDH) Male DIN 24 Cone - Heavy Series (GlobalSpiral)
