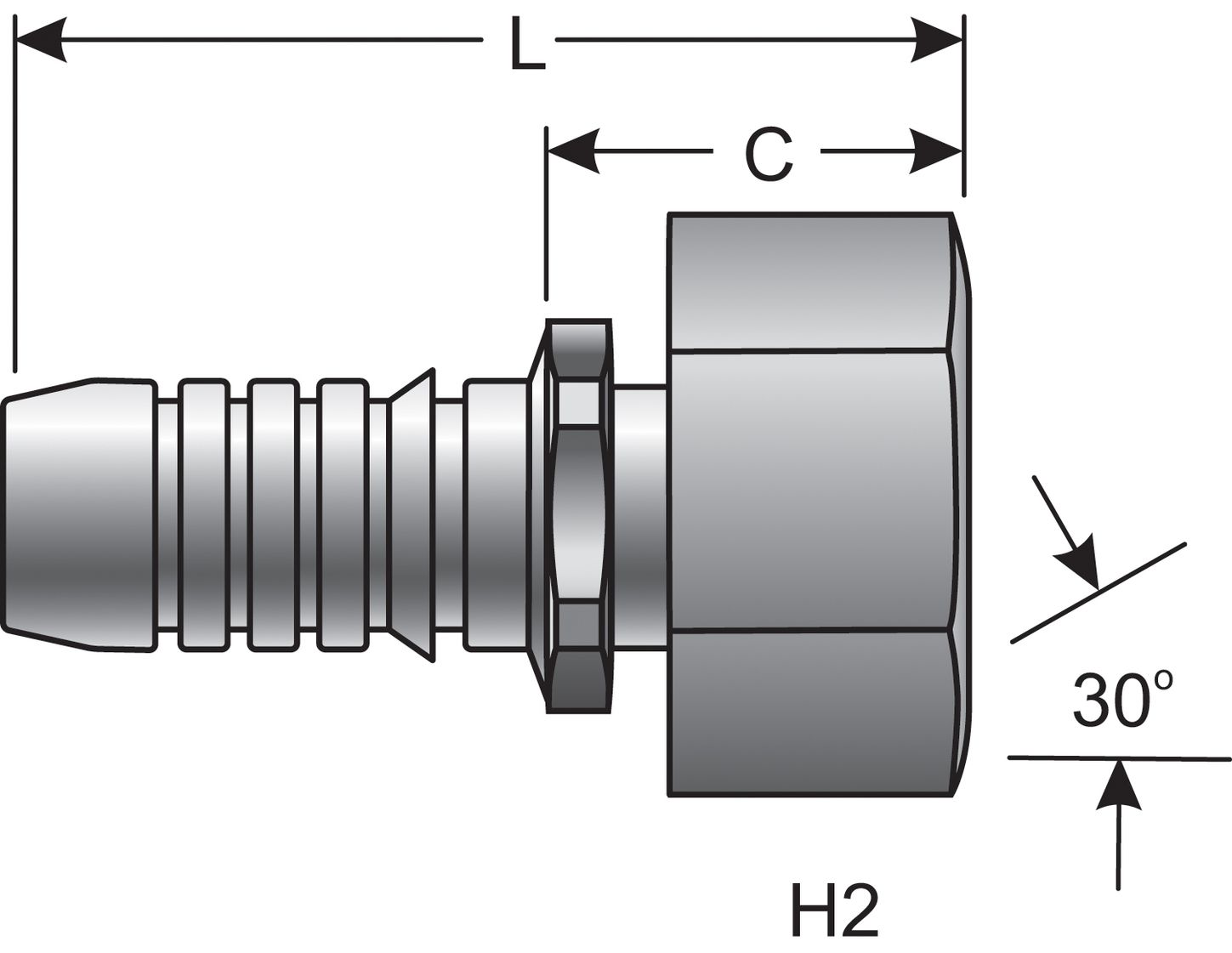

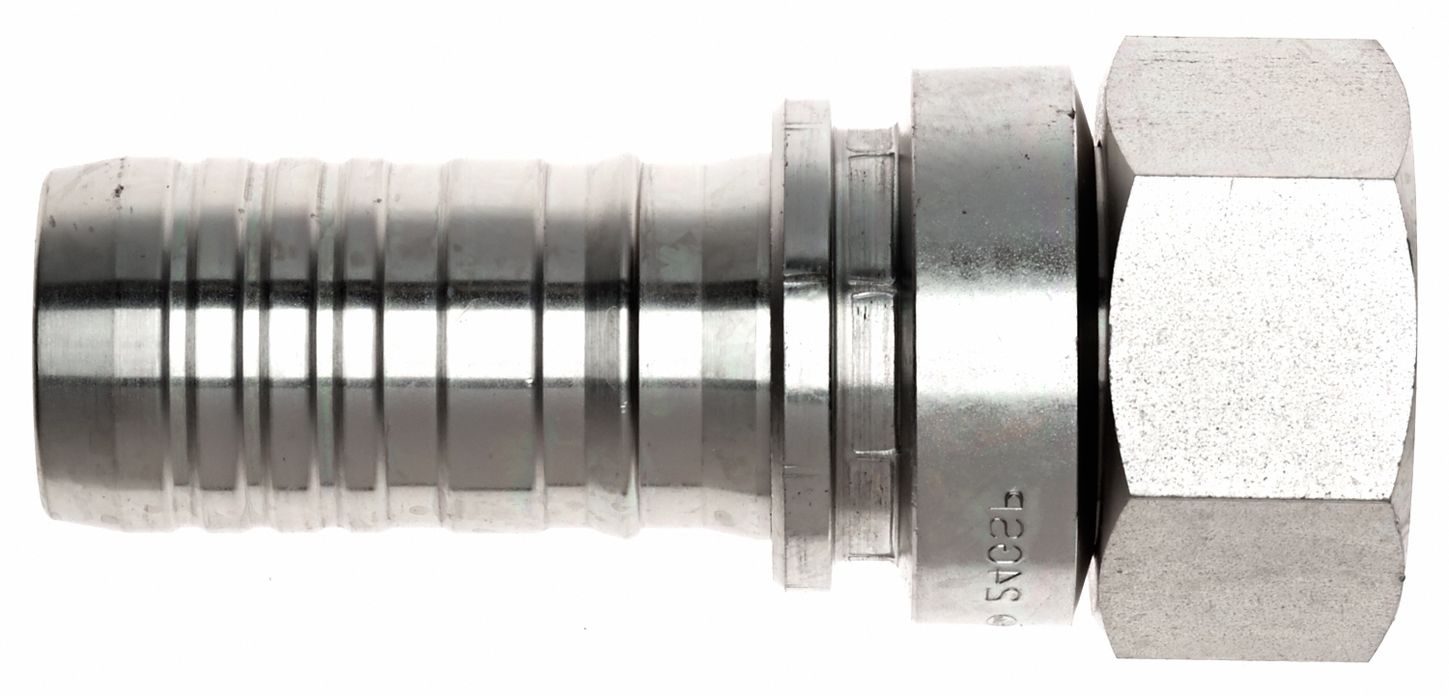

Gates G22830-2424 (24GSP-24FBSPORX) Female British Standard Parallel Pipe O-Ring Swivel (GlobalSpiral Plus)
SKU: G22830-2424UPC/EAN: 770075424406
Female British Standard Parallel Pipe O-Ring Swivel (GlobalSpiral Plus)
$131.87
EachUsually ships within 4-10 days
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system.
- “Bite-the-wire” crimp for improved coupling retention
Specifications
| SKU | G22830-2424 |
|---|---|
| UPC/EAN | 770075424406 |
| Coupling Style | GlobalSpiral Plus Couplings |
| Swivel | Yes |
| Thread Configuration | Female British Standard Pipe with O-Ring (FBSPOR) |
| Inside Diameter | 1 1/2" (24) |
| Bend Angle | Straight |
| Seal Type | O-Ring |
| Thread Size | 1 1/2" (24) |
| Gates Code | G22 |
You may also like
Gates G22830-3232 (32GSP-32FBSPORX) Female British Standard Parallel Pipe O-Ring Swivel (GlobalSpiral Plus)
$200.42Each

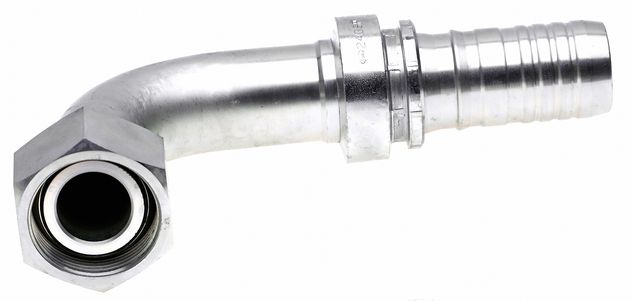

Gates G22832-2424 (24GSP-24FBSPORX90) Female British Standard Parallel Pipe O-Ring Swivel - 90 Bent Tube
$210.05Each

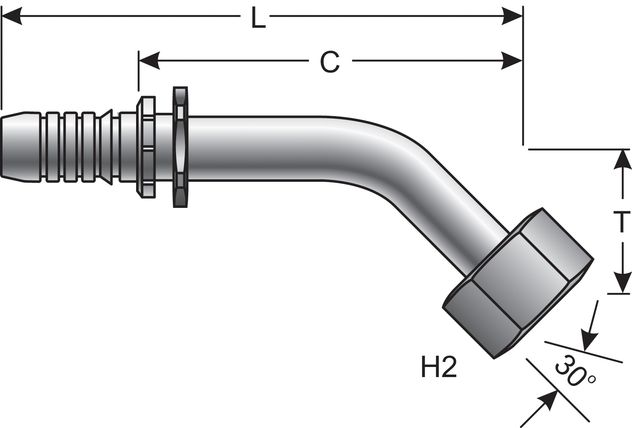

Gates G22831-2424 (24GSP-24FBSPORX45) Female British Standard Parallel Pipe O-Ring Swivel - 45 Bent Tube
$213.97Each
Gates G20830-1620 Female British Standard Parallel Pipe O-Ring Swivel (GlobalSpiral)
$81.59Each
Gates G22795-2424 (24GSP-24MBSPT) Male British Standard Pipe Tapered (GlobalSpiral Plus)
$46.77EachGates G20830-1616 (16GS-16FBSPORX) Female British Standard Parallel Pipe O-Ring Swivel (GlobalSpiral)
$43.41EachGates G20830-1212 (12GS-12FBSPORX) Female British Standard Parallel Pipe O-Ring Swivel (GlobalSpiral)
$26.08EachGates G20830-0808 (8GS-8FBSPORX) Female British Standard Parallel Pipe O-Ring Swivel (GlobalSpiral)
$22.33EachGates G20830-2020 (20GS-20FBSPORX) Female British Standard Parallel Pipe O-Ring Swivel (GlobalSpiral)
$68.15EachGates G20830-0608 (6GS-8FBSPORX) Female British Standard Parallel Pipe O-Ring Swivel (GlobalSpiral)
$29.15EachGates G20830-1010 (10GS-10FBSPORX) Female British Standard Parallel Pipe O-Ring Swivel (GlobalSpiral)

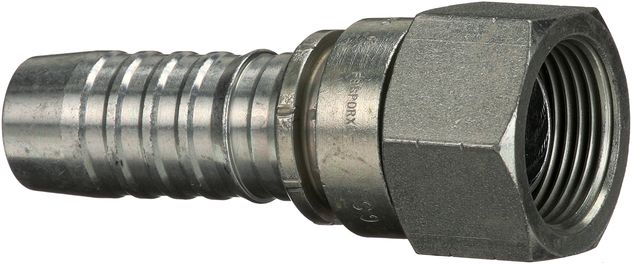

$30.64EachGates G20830-0606 (6GS-6FBSPORX) Female British Standard Parallel Pipe O-Ring Swivel (GlobalSpiral)
