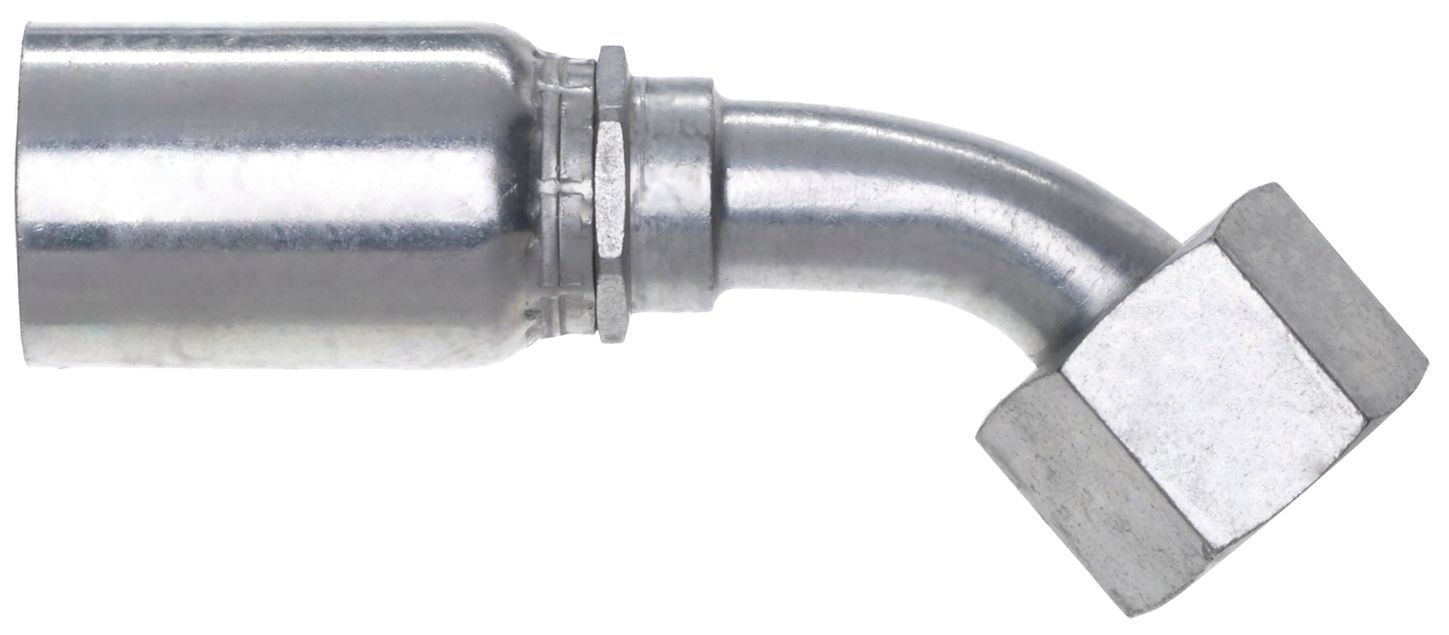

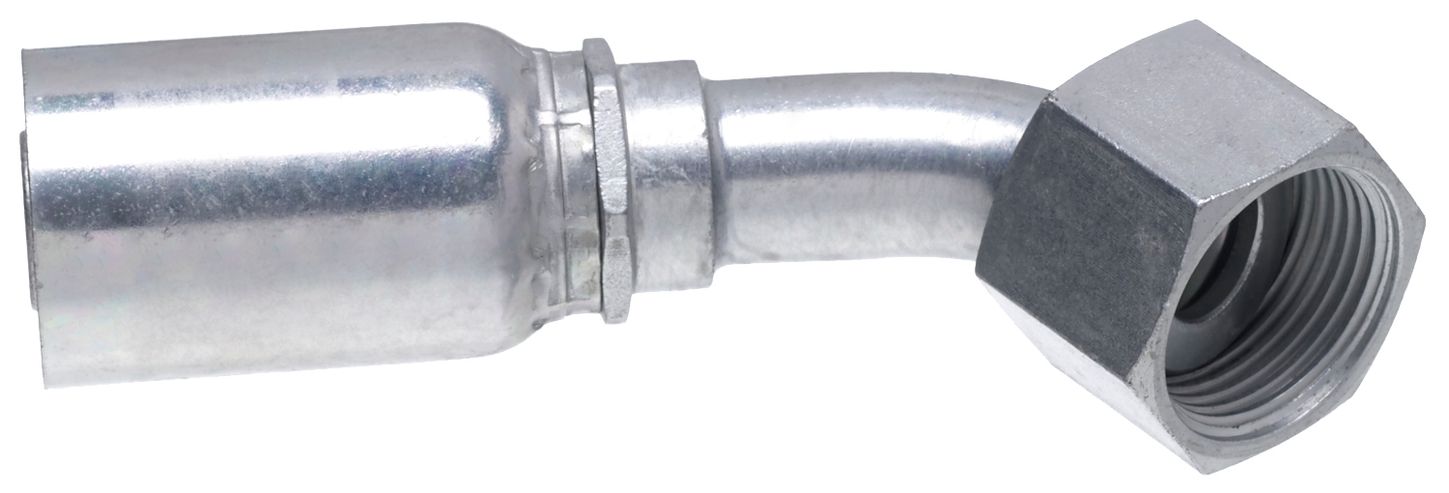

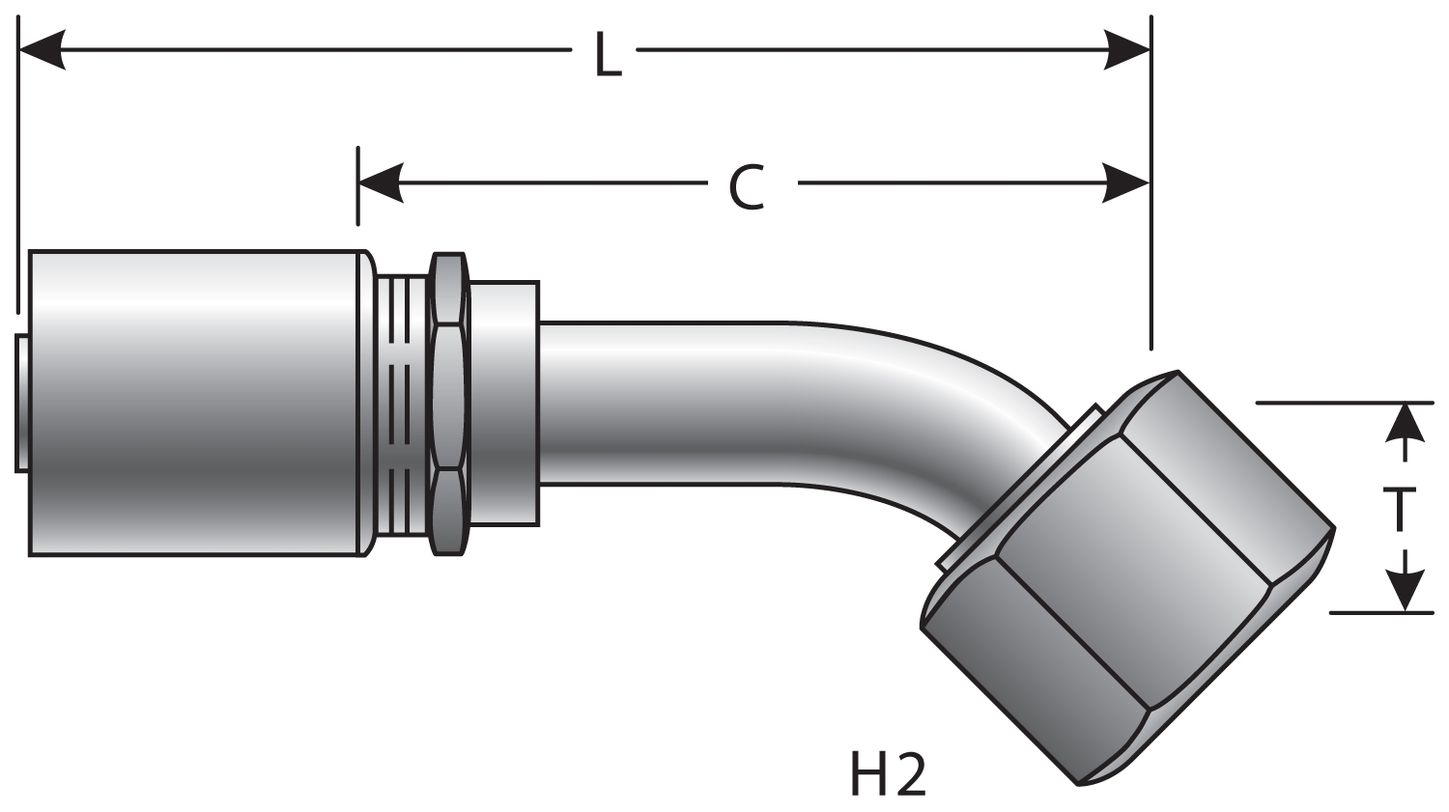

Gates G43234-2020 (20GL-20FFORX45S) Female Flat-Face Swivel - 45 Bent Tube (GL)
SKU: G43234-2020UPC/EAN: 770075354406
Female Flat-Face Swivel - 45 Bent Tube (GL)
$117.77
EachUsually ships within 4-10 days
Product Details
Gates GL low pressure couplings has been specifically designed with a pre-crimped soft shell to work with lower pressure hydraulic suction lines and low pressure return line hose. SAE J1453 O-Ring Face Seal. Special GL dies required.
- Designed for larger-diameter hoses - up to 4 in. I.D.
Specifications
| SKU | G43234-2020 |
|---|---|
| UPC/EAN | 770075354406 |
| Coupling Style | GL Couplings |
| Swivel | Yes |
| Thread Configuration | Female Flat-Face O-Ring (FFOR) |
| Inside Diameter | 1 1/4" (20) |
| Bend Angle | 45° |
| Seal Type | O-Ring |
| Thread Size | 1 11/16" (27) |
| Gates Code | G43 |
