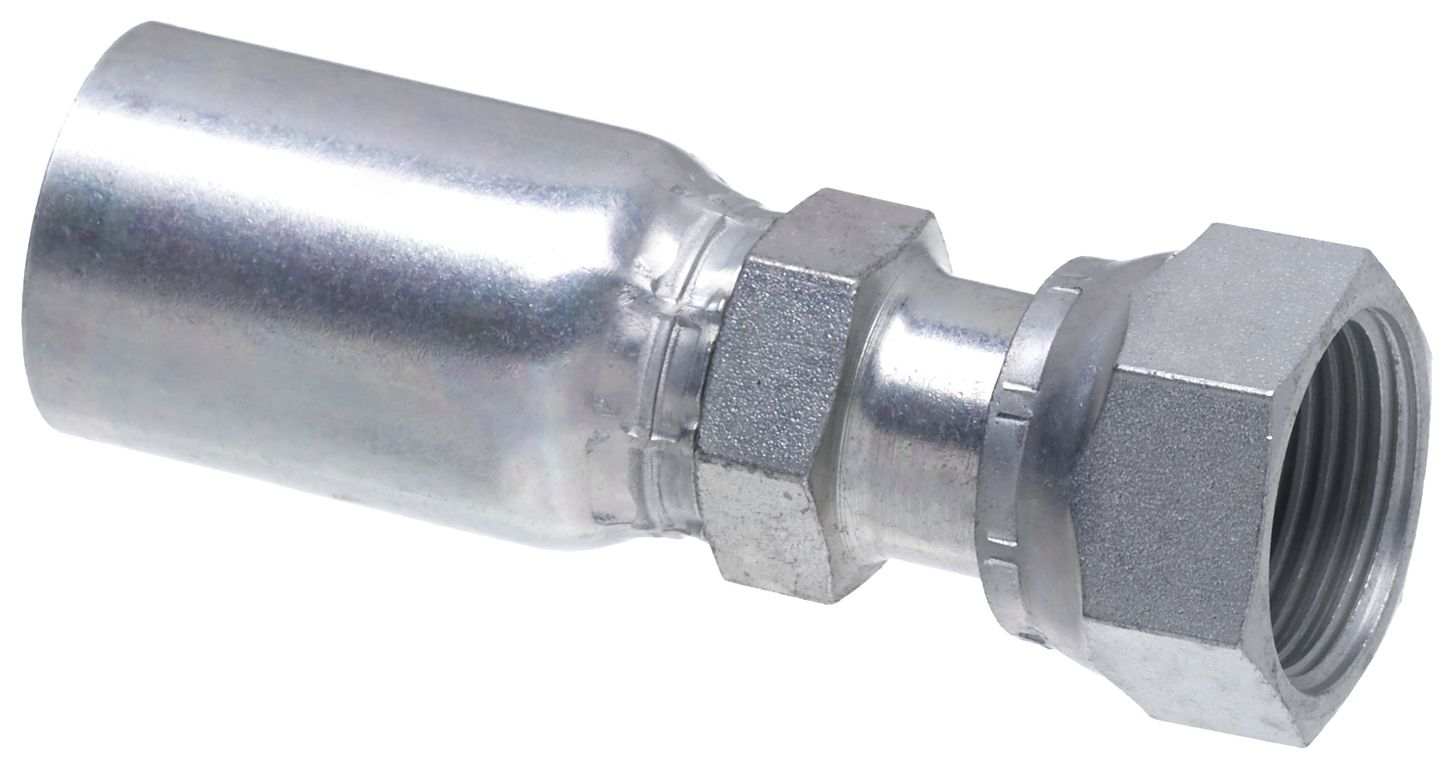

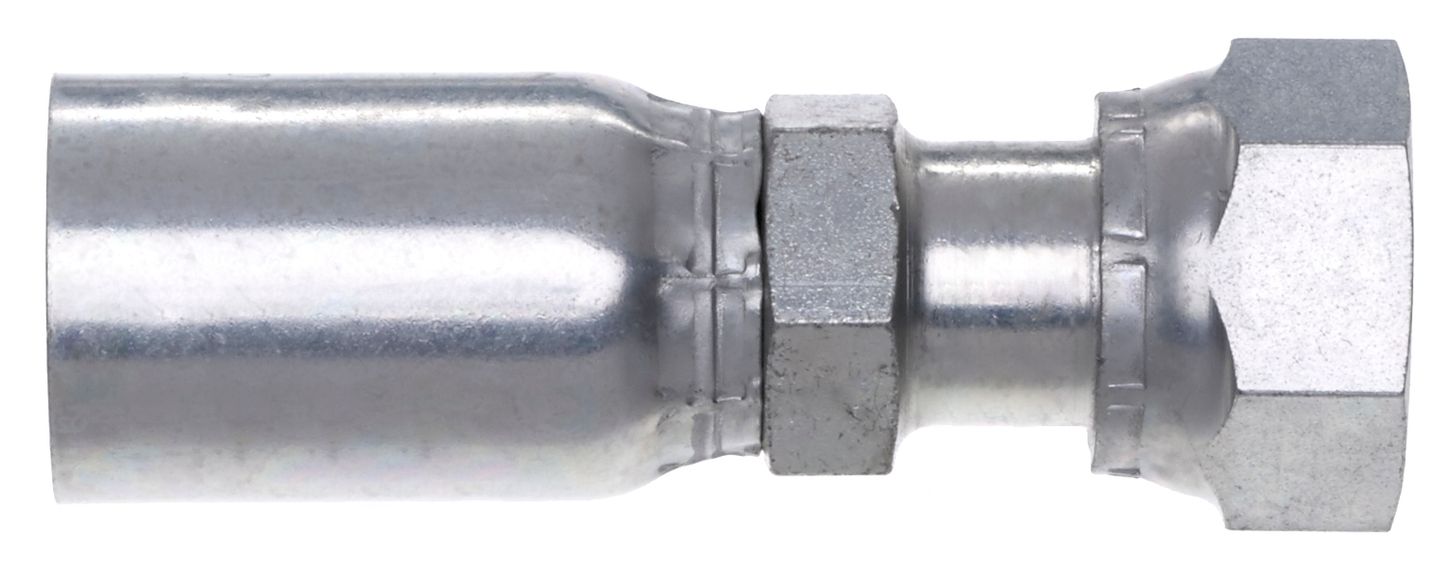

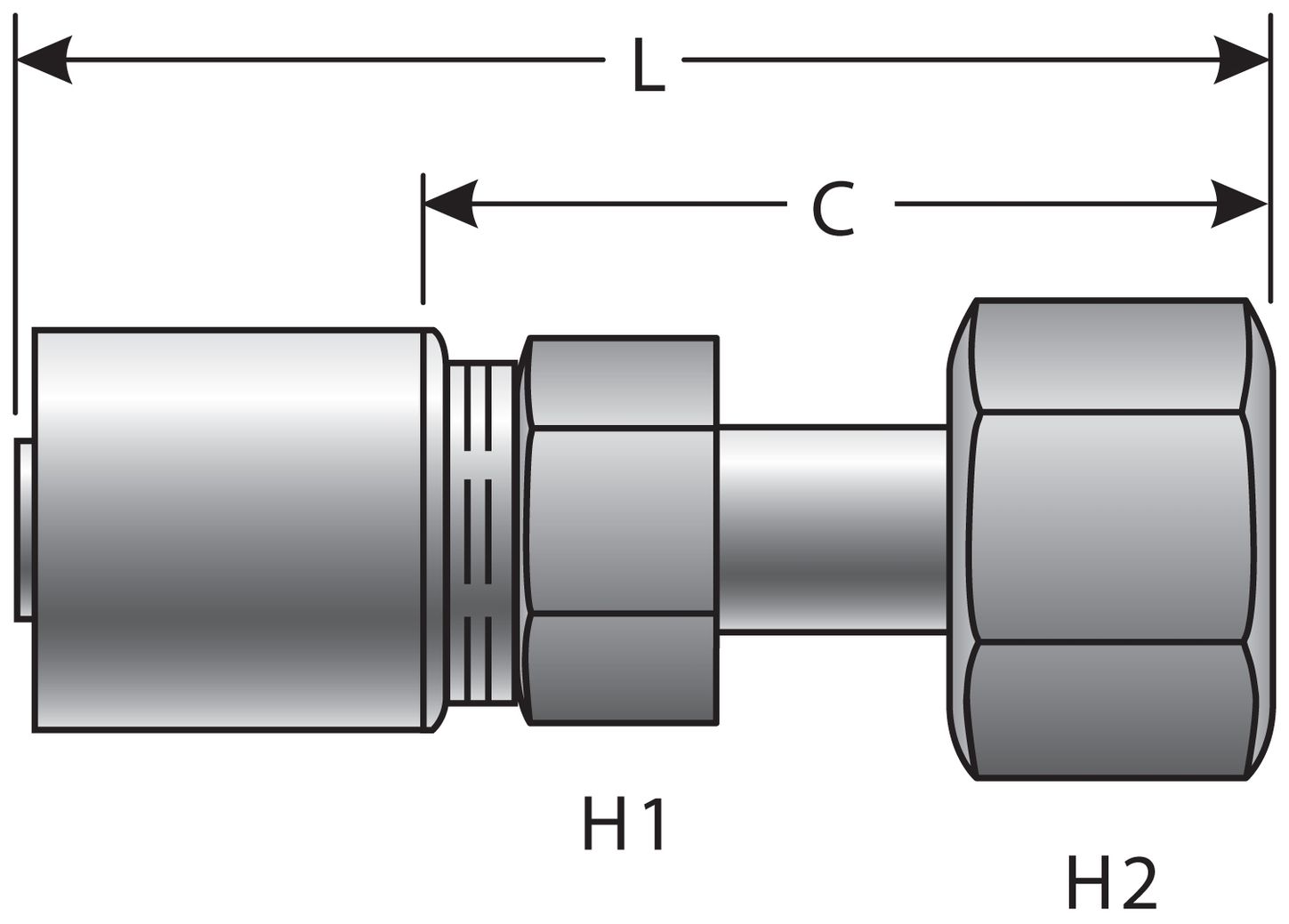

Gates G43230-2424 (24GL-24FFORX) Female Flat-Face Swivel (GL)
SKU: G43230-2424UPC/EAN: 770075351368
Female Flat-Face Swivel (GL)
$94.24
EachUsually ships within 4-10 days
Product Details
Gates GL low pressure couplings has been specifically designed with a pre-crimped soft shell to work with lower pressure hydraulic suction lines and low pressure return line hose. SAE J1453 O-Ring Face Seal. Special GL dies required.
- Designed for larger-diameter hoses - up to 4 in. I.D.
Specifications
| SKU | G43230-2424 |
|---|---|
| UPC/EAN | 770075351368 |
| Coupling Style | GL Couplings |
| Swivel | Yes |
| Thread Configuration | Female Flat-Face O-Ring (FFOR) |
| Inside Diameter | 1 1/2" (24) |
| Bend Angle | Straight |
| Seal Type | O-Ring |
| Thread Size | 2" (32) |
| Gates Code | G43 |
